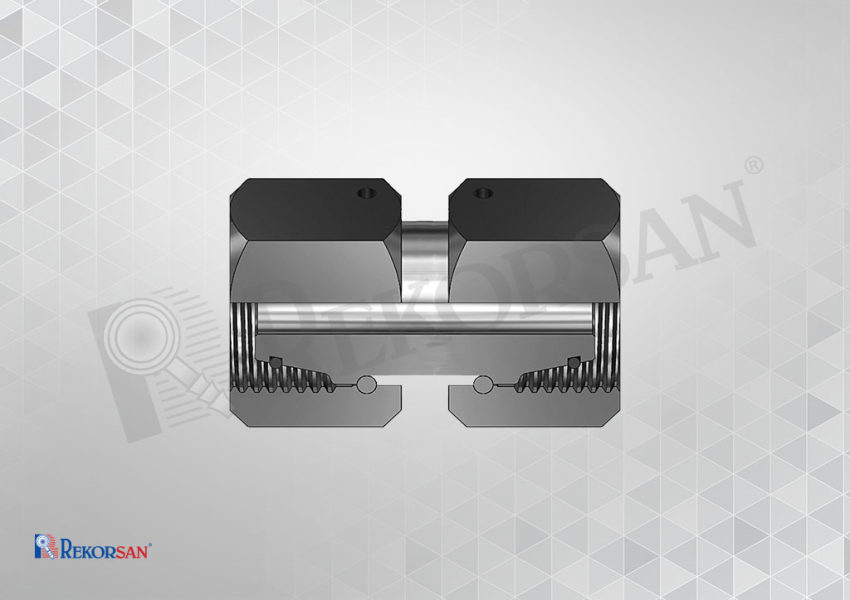

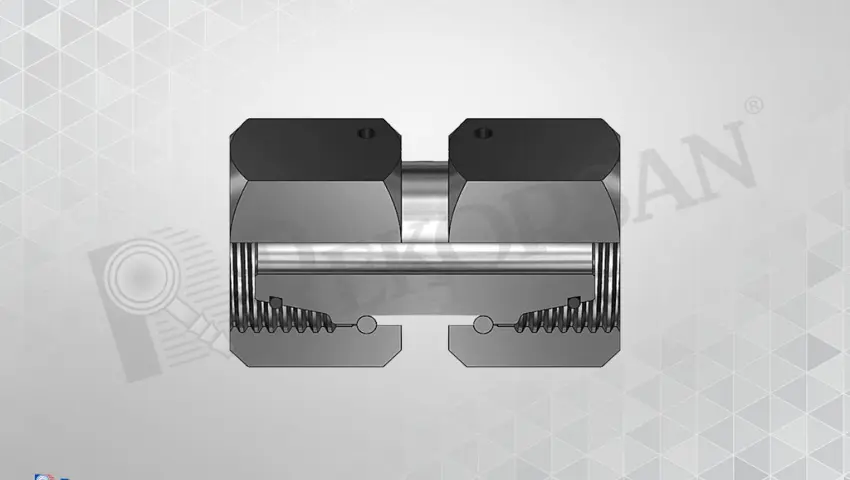

| METRİK SOMUNLU TERS NİPEL METRIC STRAIGHT UNION SWIVEL REDUCER WITH NUT |
|||||
| MALZEME KODU MATERIAL CODE |

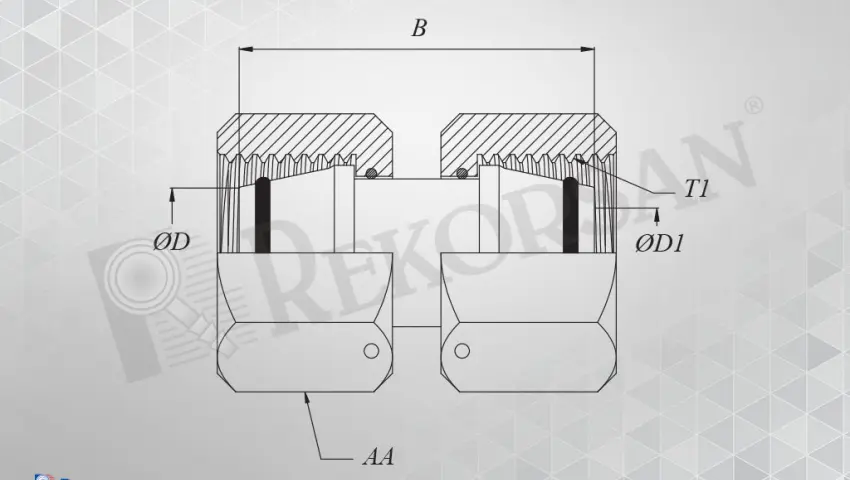

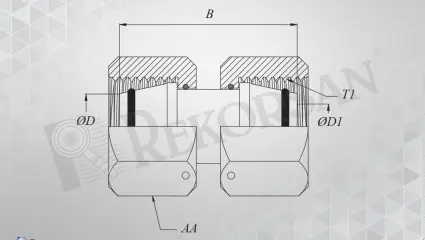

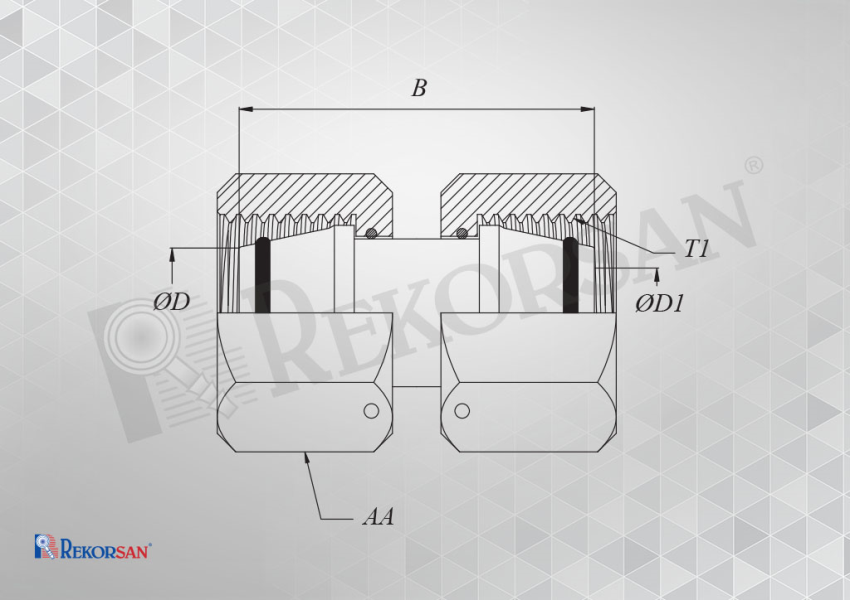

DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
ØD | ØD1 | B | AA |
| L TİPİ / L TYPE | |||||
| RK-1206-MSTN-L | M12x1,5 6L | 6 | 3 | 32 | 17 |
| RK-1408-MSTN-L | M14x1,5 8L | 8 | 4 | 32 | 17 |
| RK-1610-MSTN-L | M16x1,5 10L | 10 | 6 | 33 | 19 |
| RK-1812-MSTN-L | M18x1,5 12L | 12 | 8 | 33 | 22 |
| RK-2215-MSTN-L | M22x1,5 15L | 15 | 10 | 38 | 27 |
| RK-2618-MSTN-L | M26x1,5 18L | 18 | 13 | 36 | 32 |
| RK-3022-MSTN-L | M30x2 22L | 22 | 17 | 42 | 36 |
| RK-3628-MSTN-L | M36x2 28L | 28 | 22 | 46 | 41 |
| RK-4535-MSTN-L | M45x2 35L | 35 | 28 | 48 | 50 |
| RK-5242-MSTN-L | M52x2 42L | 42 | 34 | 52 | 60 |
| S TİPİ / S TYPE | |||||
| RK-1406-MSTN-S | M14x1,5 6S | 6 | 3 | 32 | 17 |
| RK-1608-MSTN-S | M16x1,5 8S | 8 | 4 | 33 | 19 |
| RK-1810-MSTN-S | M18x1,5 10S | 10 | 6 | 33 | 22 |
| RK-2012-MSTN-S | M20x1,5 12S | 12 | 8 | 36 | 24 |
| RK-2416-MSTN-S | M24x1,5 16S | 16 | 11 | 39 | 30 |
| RK-3020-MSTN-S | M30x2 20S | 20 | 14 | 44 | 36 |
| RK-3625-MSTN-S | M36x2 25S | 25 | 18 | 46 | 46 |
| RK-4230-MSTN-S | M42x2 30S | 30 | 23 | 52 | 50 |
| RK-5238-MSTN-S | M52x2 38S | 38 | 30 | 52 | 60 |
