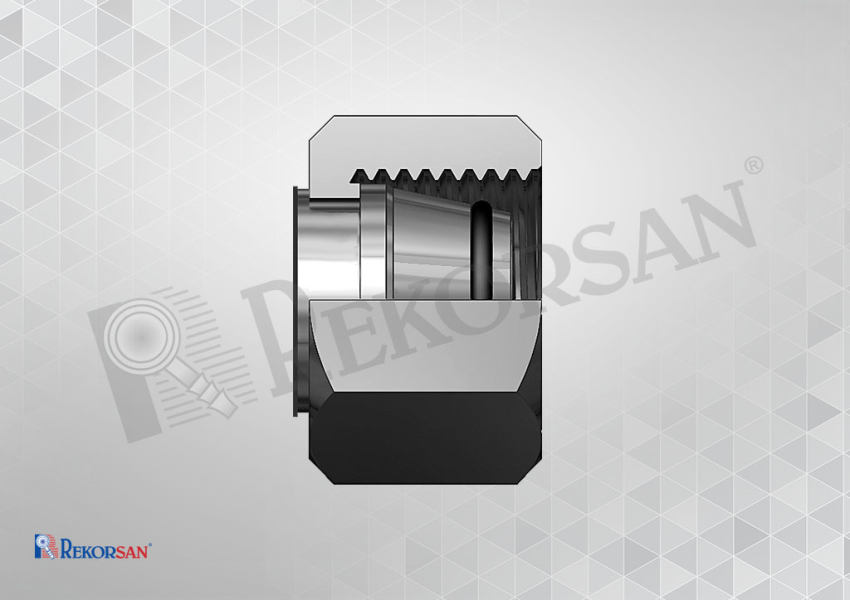

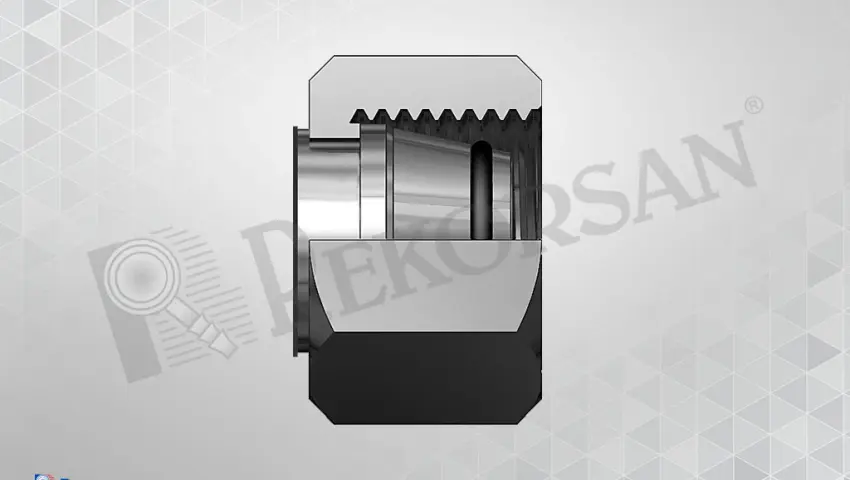

| METRİK SOMUNLU TAPA METRIC PLUG WITH O-RING |
||||
| MALZEME KODU MATERIAL CODE |

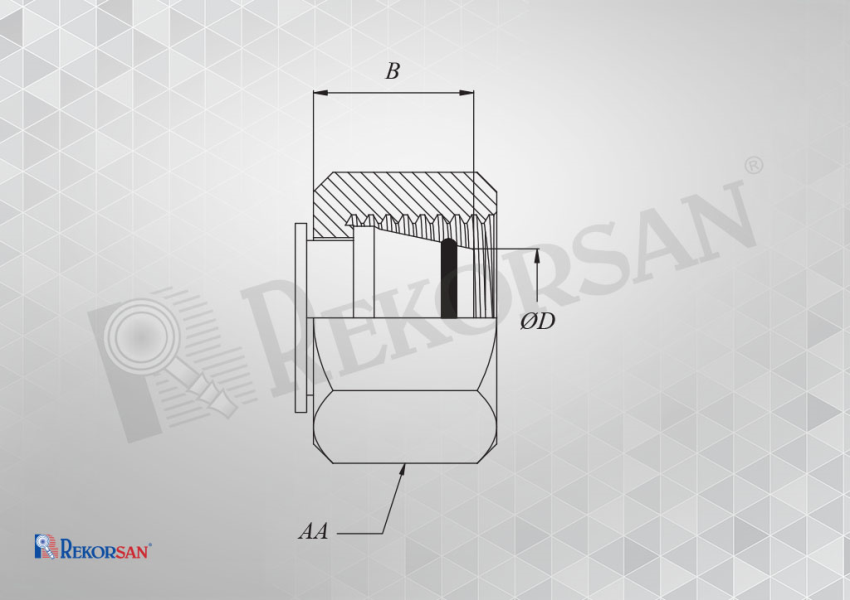

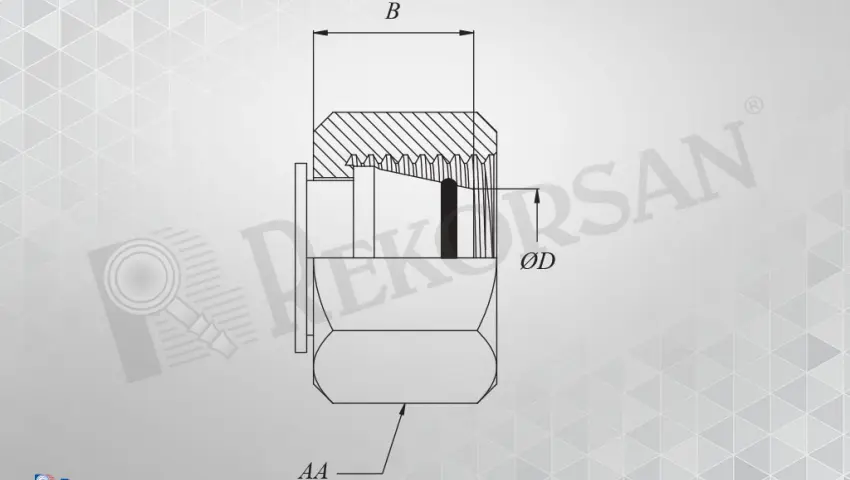

DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
B | ØD | AA |
| L TİPİ / L TYPE | ||||
| RK-1206-MST-L | M12x1,5 6L | 14 | 6 | 14 |
| RK-1408-MST-L | M14x1,5 8L | 13 | 8 | 17 |
| RK-1610-MST-L | M16x1,5 10L | 14.5 | 10 | 19 |
| RK-1812-MST-L | M18x1,5 12L | 14.5 | 12 | 22 |
| RK-2215-MST-L | M22x1,5 15L | 17 | 15 | 27 |
| RK-2618-MST-L | M26x1,5 18L | 16 | 18 | 32 |
| RK-3022-MST-L | M30x2 22L | 18 | 22 | 36 |
| RK-3628-MST-L | M36x2 28L | 17 | 28 | 41 |
| RK-4535-MST-L | M45x2 35L | 19.5 | 35 | 50 |
| RK-5242-MST-L | M52x2 42L | 21.5 | 42 | 60 |
| S TİPİ / S TYPE | ||||
| RK-2012-MST-S | M20x1,5 12S | 17 | 12 | 24 |
| RK-2416-MST-S | M24x1,5 16S | 17.5 | 16 | 30 |
| RK-3020-MST-S | M30x2 20S | 21 | 20 | 36 |
| RK-3625-MST-S | M36x2 25S | 20 | 25 | 46 |
| RK-4230-MST-S | M42x2 30S | 20 | 30 | 50 |
| RK-5238-MST-S | M52x2 38S | 23 | 38 | 60 |
