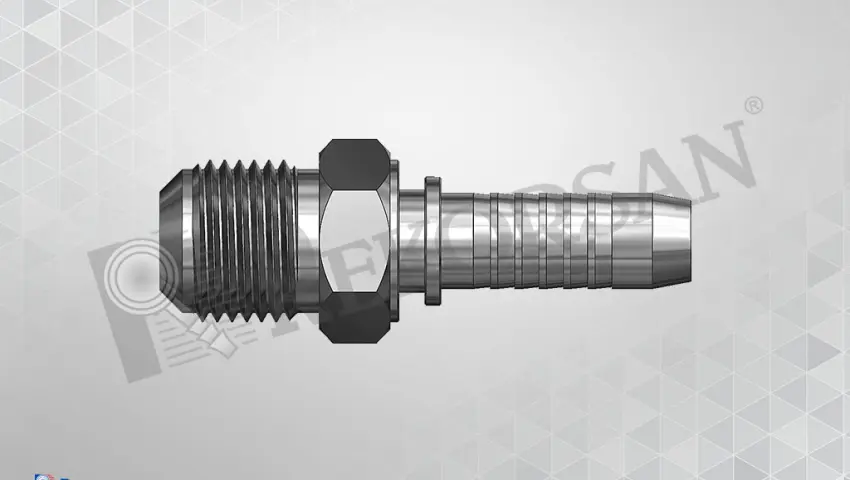

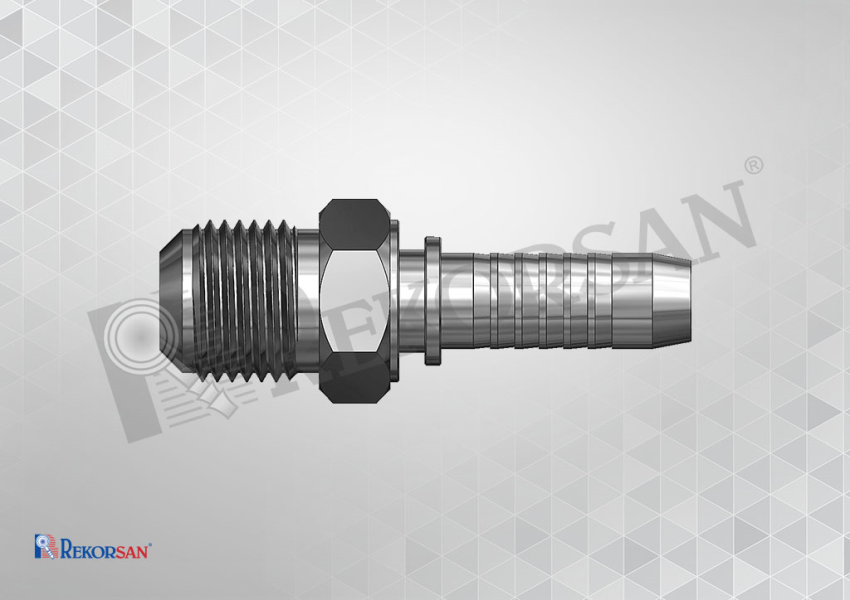

| UNF ERKEK HORTUM RAKORLARI UNF MALE STRAIGHT HOSE FITTINGS |
|||||||
| MALZEME KODU MATERIAL CODE |
HORTUM ÖLÇÜSÜ HOSE SIZE |
DİŞ ÖLÇÜSÜ THREAD SIZE |

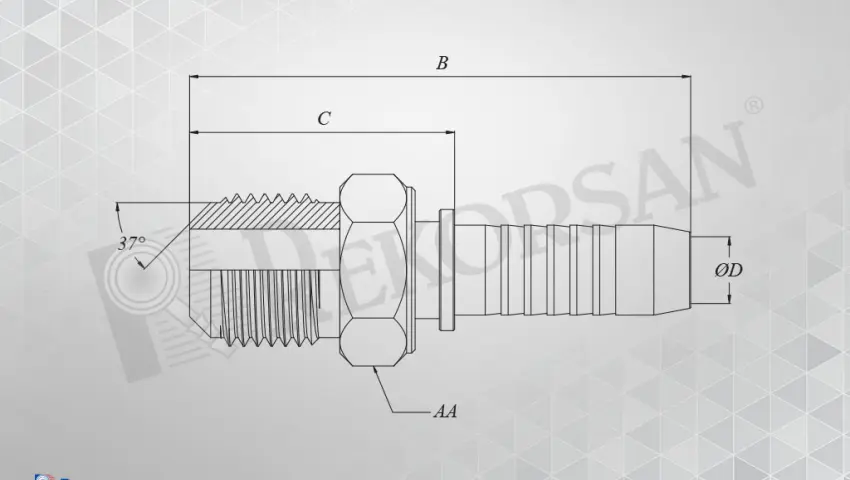

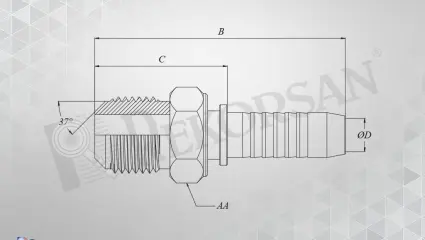

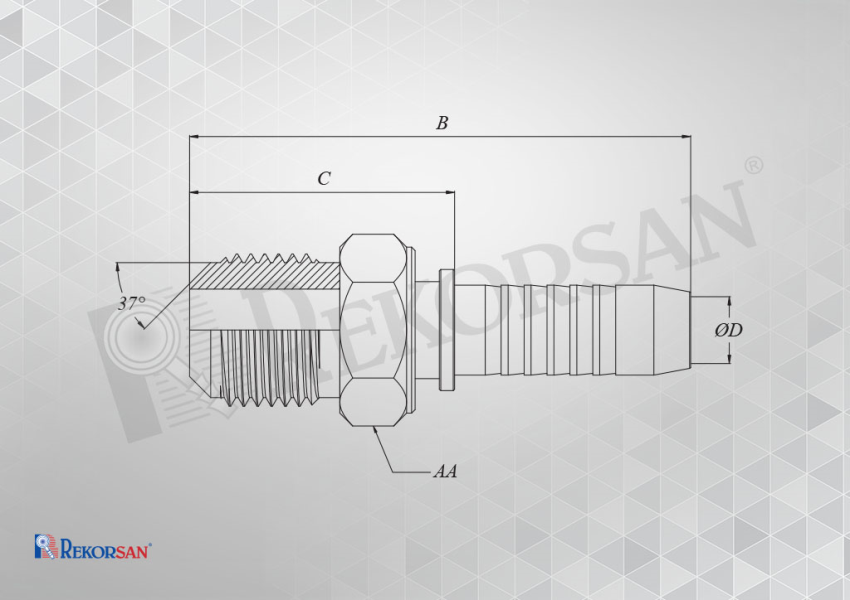

B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0511-WE | 05 | 3/16 | 7/16-20 | 45.5 | 24.5 | 3.2 | 12 |
| RK-0611-WE | 06 | 1/4 | 7/16-20 | 50 | 25 | 4 | 12 |
| RK-0612-WE | 06 | 1/4 | 1/2-20 | 51 | 26 | 4 | 13 |
| RK-0614-WE | 06 | 1/4 | 9/16-18 | 51.5 | 26.5 | 4 | 14 |
| RK-0812-WE | 08 | 5/16 | 1/2-20 | 53 | 26 | 5.5 | 13 |
| RK-0814-WE | 08 | 5/16 | 9/16-18 | 53.5 | 26.5 | 5.5 | 14 |
| RK-0816-WE | 08 | 5/16 | 5/8-18 | 56 | 29 | 5.5 | 17 |
| RK-1014-WE | 10 | 3/8 | 9/16-18 | 56.5 | 26.5 | 7 | 14 |
| RK-1016-WE | 10 | 3/8 | 5/8-18 | 59 | 29 | 7 | 17 |
| RK-1019-WE | 10 | 3/8 | 3/4-16 | 60 | 30 | 7 | 19 |
| RK-1319-WE | 12 | 1/2 | 3/4-16 | 63.5 | 30.5 | 9 | 19 |
| RK-1322-WE | 12 | 1/2 | 7/8-14 | 67.5 | 34.5 | 9 | 22 |
| RK-1622-WE | 16 | 5/8 | 7/8-14 | 75.5 | 35.5 | 12 | 22 |
| RK-1627-WE | 16 | 5/8 | 1"1/16-12 | 79.5 | 39.5 | 12 | 27 |
| RK-1927-WE | 19 | 3/4 | 1"1/16-12 | 84 | 40 | 14 | 27 |
| RK-2533-WE | 25 | 1" | 1"5/16-12 | 98.5 | 44.5 | 19 | 36 |
