UNF YANBACAK TE
UNF YANBACAK TE

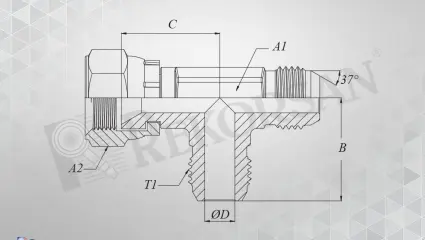

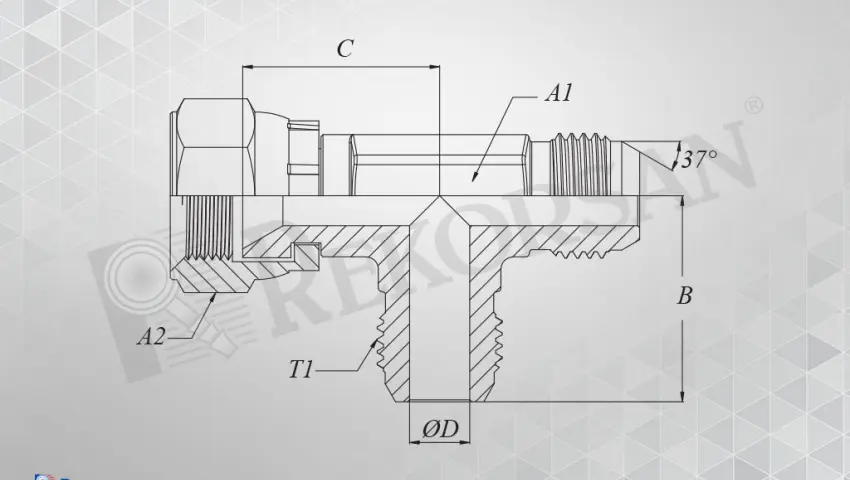

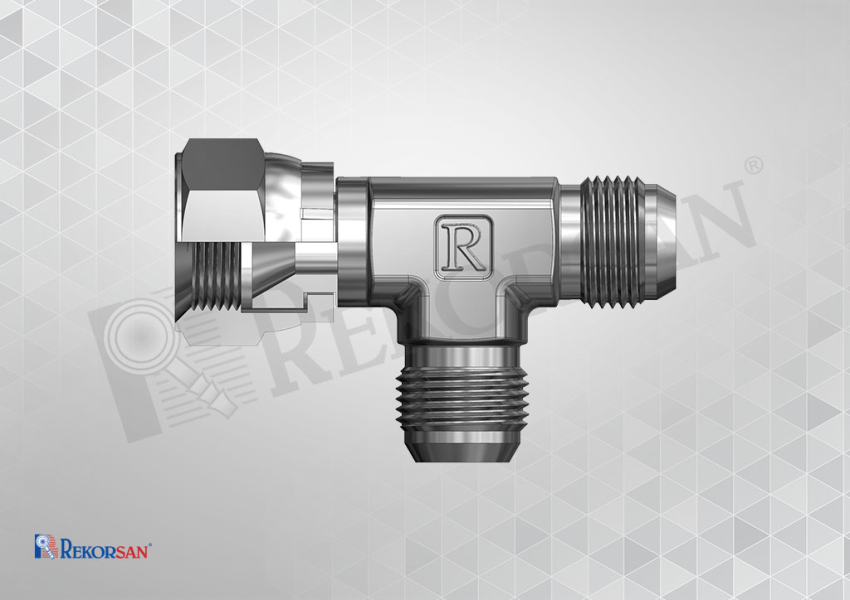

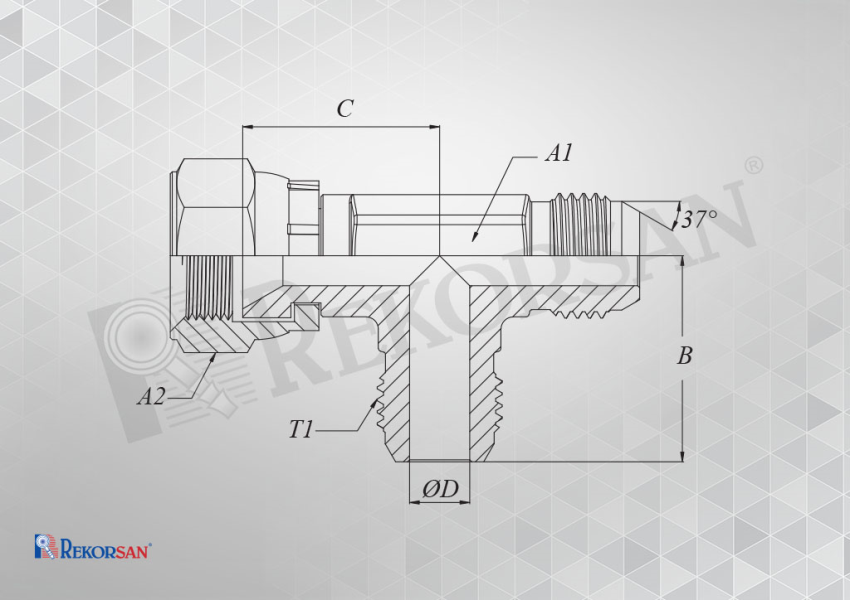

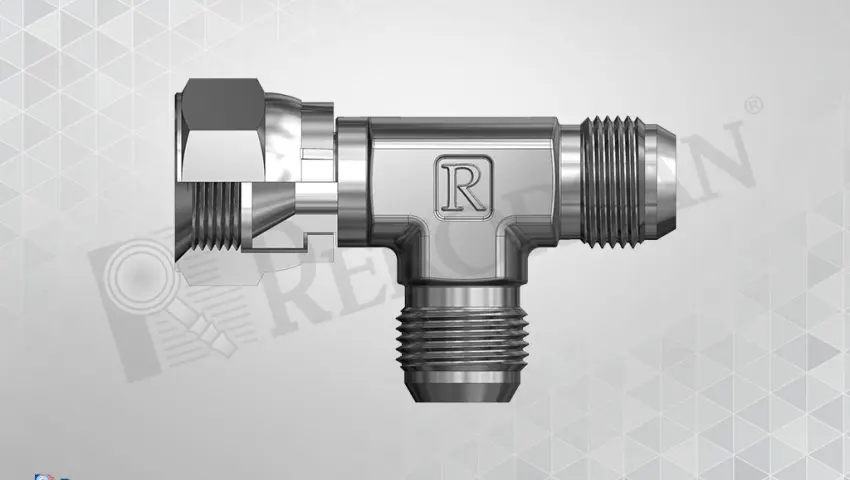

| UNF YANBACAK TE UNF SWIVEL RUN TEE | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD | B | C | ØD | A1 | A2 |
| RK-1111-WYT | 7/16-20 | 6 | 20 | 20 | 4.5 | 12 | 16 |
| RK-1212-WYT | 1/2-20 | 8 | 23.5 | 23 | 6 | 14 | 17 |
| RK-1414-WYT | 9/16-18 | 10 | 25 | 24.5 | 7.5 | 17 | 19 |
| RK-1616-WYT | 5/8-18 | 10/12 | 25 | 24.5 | 8 | 17 | 21 |
| RK-1919-WYT | 3/4-16 | 12 | 30 | 29.5 | 10 | 17 | 24 |
| RK-2222-WYT | 7/8-14 | 16 | 34 | 33.5 | 12.5 | 24 | 27 |
| RK-2727-WYT | 1"1/16-12 | 20 | 38 | 37 | 15.5 | 27 | 32 |
| RK-3333-WYT | 1"5/16-12 | 25 | 43 | 42 | 21.5 | 36 | 41 |
| RK-4141-WYT | 1"5/8-12 | 30/32 | 50 | 49 | 27.5 | 41 | 50 |
| RK-4747-WYT | 1"7/8-12 | 38 | 57.5 | 57.5 | 33.5 | 50 | 55 |
