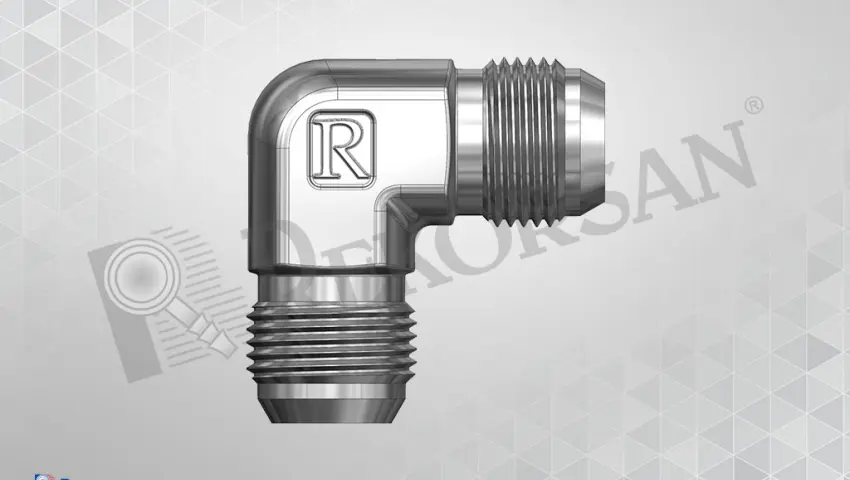

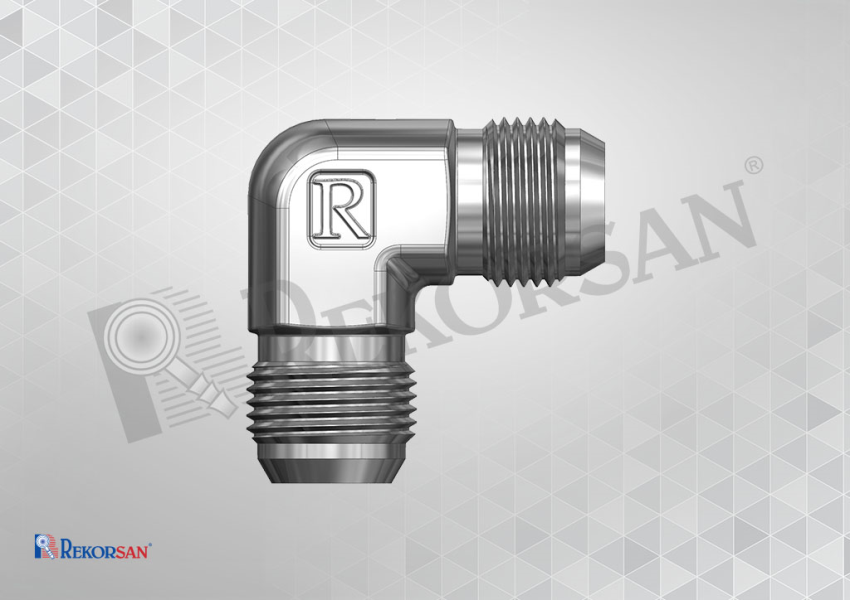

UNF DİRSEKLER
UNF DİRSEKLER
| UNF DİRSEKLER UNF ELBOWS | |||||

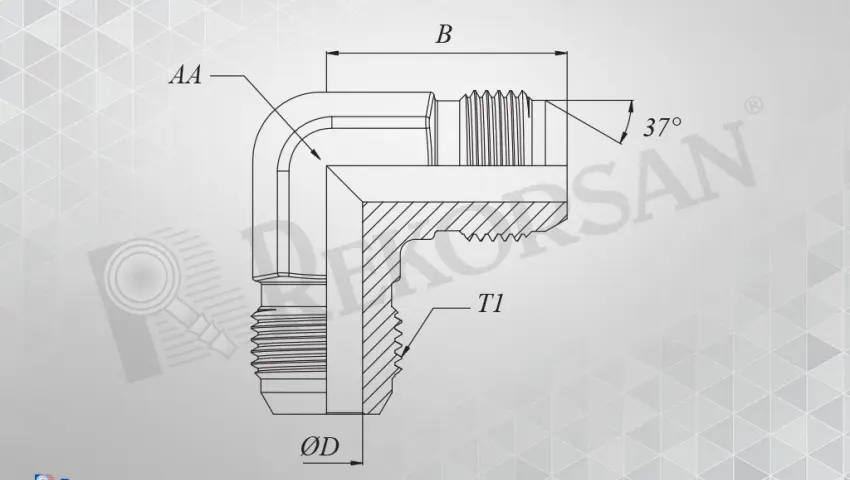

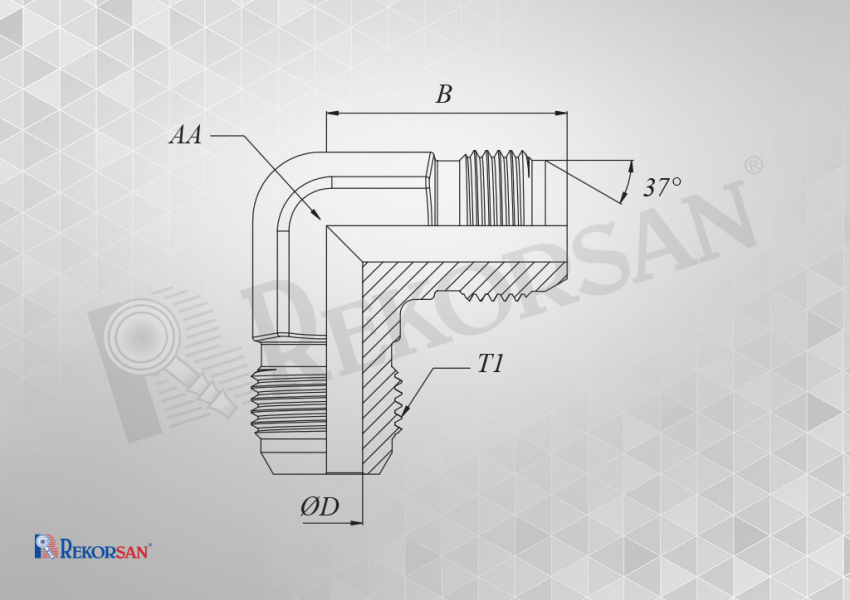

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD | B | ØD | AA |
| RK-1111-WD | 7/16-20 | 6 | 20 | 4.5 | 12 |
| RK-1212-WD | 1/2-20 | 8 | 23.5 | 6 | 14 |
| RK-1414-WD | 9/16-18 | 10 | 25 | 7.5 | 17 |
| RK-1616-WD | 5/8-18 | 10/12 | 25 | 8 | 17 |
| RK-1919-WD | 3/4-16 | 12 | 30 | 10 | 17 |
| RK-2222-WD | 7/8-14 | 16 | 34 | 12.5 | 24 |
| RK-2727-WD | 1"1/16-12 | 20 | 38 | 15.5 | 27 |
| RK-3333-WD | 1"5/16-12 | 25 | 43 | 21.5 | 36 |
| RK-4141-WD | 1"5/8-12 | 30/32 | 50 | 27.5 | 41 |
| RK-4747-WD | 1"7/8-12 | 38 | 57.5 | 33.5 | 50 |
