BSP - UNF TERS NİPEL
BSP - UNF TERS NİPEL

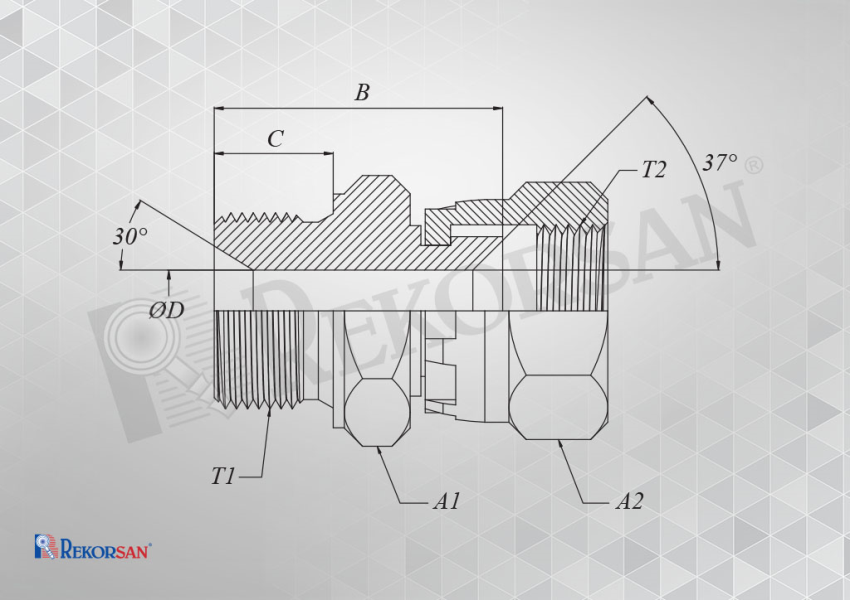

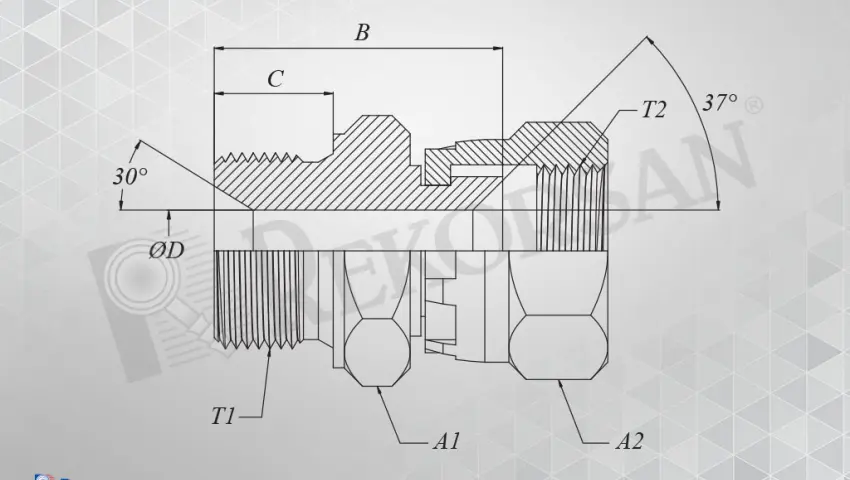

| BSP - UNF TERS NİPEL BSP METAL SEALING - UNF FEMALE SWIWEL | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | A1 | A2 |
| RK-1011-RWTN | R1/8-28 | 7/16-20 | 22.5 | 9 | 4 | 14 | 16 |
| RK-1311-RWTN | R1/4-19 | 7/16-20 | 27 | 11 | 4.5 | 19 | 16 |
| RK-1312-RWTN | R1/4-19 | 1/2-20 | 28.5 | 11 | 5.5 | 19 | 17 |
| RK-1314-RWTN | R1/4-19 | 9/16-18 | 29 | 11 | 6 | 19 | 19 |
| RK-1714-RWTN | R3/8-19 | 9/16-18 | 30.5 | 12 | 6 | 22 | 19 |
| RK-1716-RWTN | R3/8-19 | 5/8-18 | 30.5 | 12 | 7 | 22 | 21 |
| RK-1719-RWTN | R3/8-19 | 3/4-16 | 33.5 | 12 | 9 | 22 | 24 |
| RK-2114-RWTN | R1/2-14 | 9/16-18 | 34 | 14 | 6 | 27 | 19 |
| RK-2116-RWTN | R1/2-14 | 5/8-18 | 34 | 14 | 7 | 27 | 21 |
| RK-2119-RWTN | R1/2-14 | 3/4-16 | 37 | 14 | 9 | 27 | 24 |
| RK-2122-RWTN | R1/2-14 | 7/8-14 | 37.5 | 14 | 12 | 27 | 27 |
| RK-2622-RWTN | R3/4-14 | 7/8-14 | 40.5 | 16 | 12 | 32 | 27 |
| RK-2627-RWTN | R3/4-14 | 1"1/16-12 | 42.5 | 16 | 15 | 32 | 32 |
| RK-3327-RWTN | R1"-11 | 1"1/16-12 | 46.5 | 18.5 | 15 | 41 | 32 |
| RK-3333-RWTN | R1"-11 | 1"5/16-12 | 49 | '18.5 | 20 | 41 | 41 |
