BSP TERS NİPEL
BSP TERS NİPEL

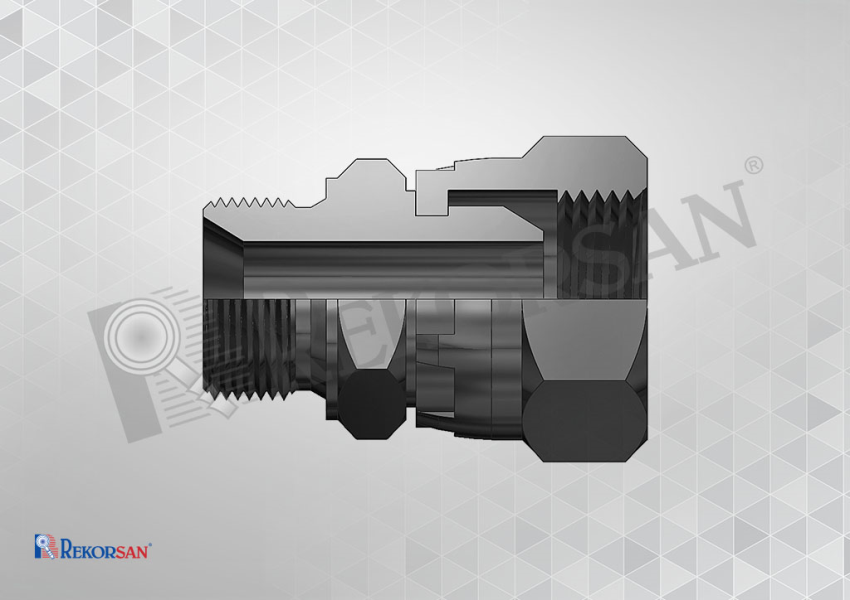

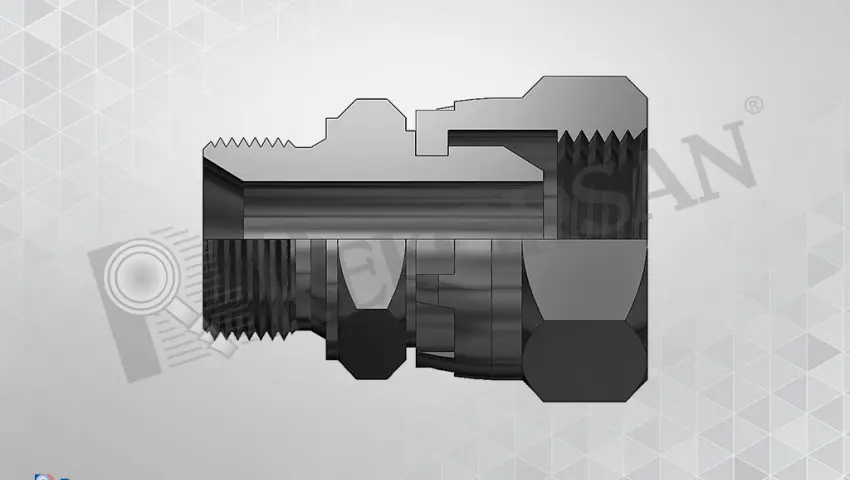

| BSP TERS NİPEL BSP STRAIGHT SWIWEL CONNECTOR | |||||||

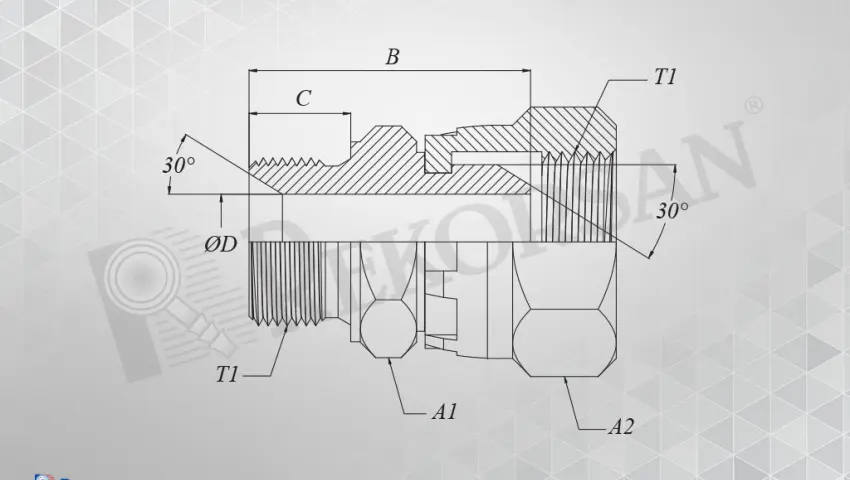

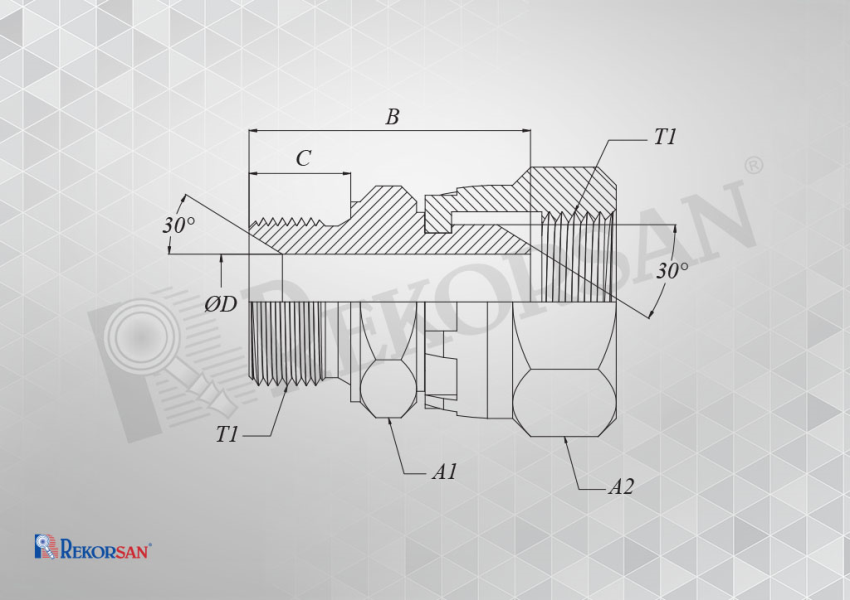

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | ØD | A1 | A2 |
| RK-1010-RRTN | R1/8-28 | R1/8-28 | 23.5 | 9 | 4 | 14 | 14 |
| RK-1313-RRTN | R1/4-19 | R1/4-19 | 30 | 11 | 5.5 | 19 | 17 |
| RK-1717-RRTN | R3/8-19 | R3/8-19 | 33.5 | 12 | 8 | 22 | 22 |
| RK-2121-RRTN | R1/2-14 | R1/2-14 | 39.5 | 14 | 10 | 27 | 27 |
| RK-2626-RRTN | R3/4-14 | R3/4-14 | 45 | 16 | 15 | 32 | 32 |
| RK-3333-RRTN | R1"-11 | R1"-11 | 53 | 18.5 | 20 | 41 | 41 |
| RK-4242-RRTN | R1"1/4-11 | R1"1/4-11 | 58.5 | 22 | 26 | 50 | 50 |
| RK-4848-RRTN | R1"1/2-11 | R1"1/2-11 | 62.5 | 22 | 30 | 55 | 55 |
| RK-6060-RRTN | R2"-11 | R2"-11 | 69 | 25 | 43.5 | 70 | 70 |
