BSP - ORFS TERS NİPEL
BSP - ORFS TERS NİPEL

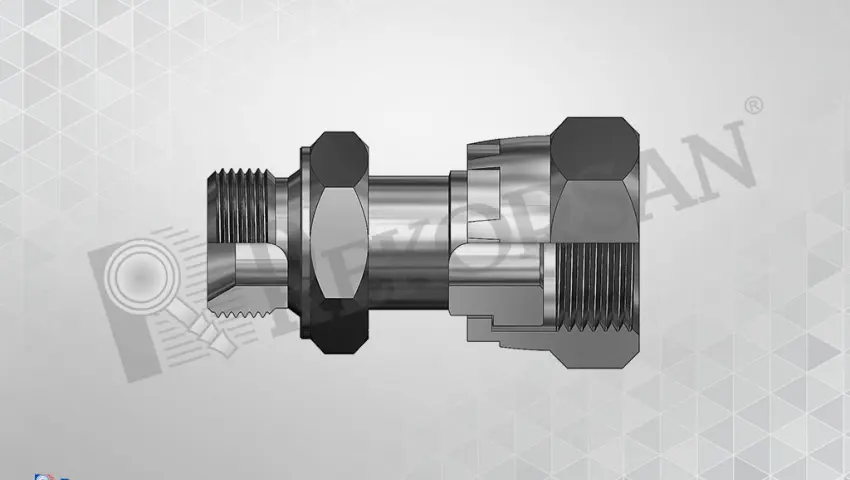

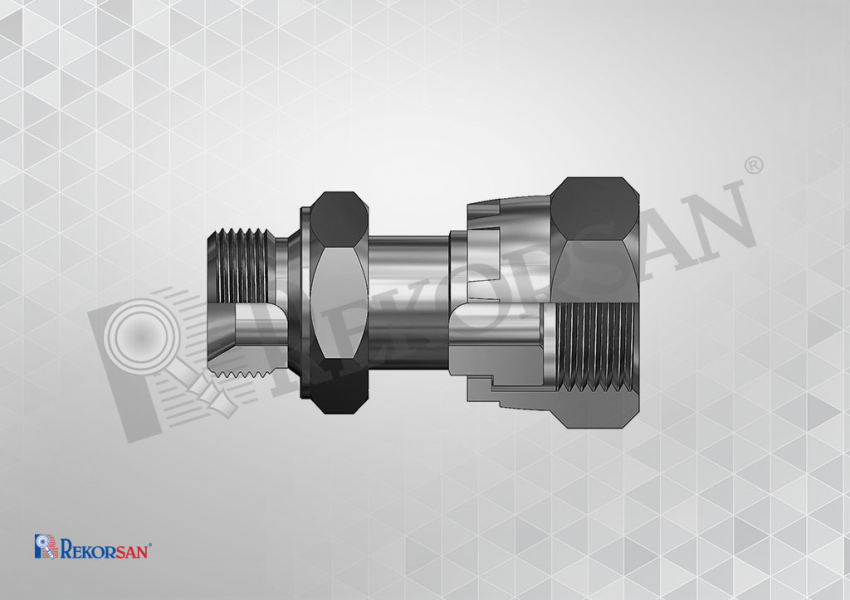

| BSP - ORFS TERS PFX NİPEL BSP WITH ELASTOMERIC SEAL - ORFS FEMALE SWIWEL CONNECTOR | |||||||

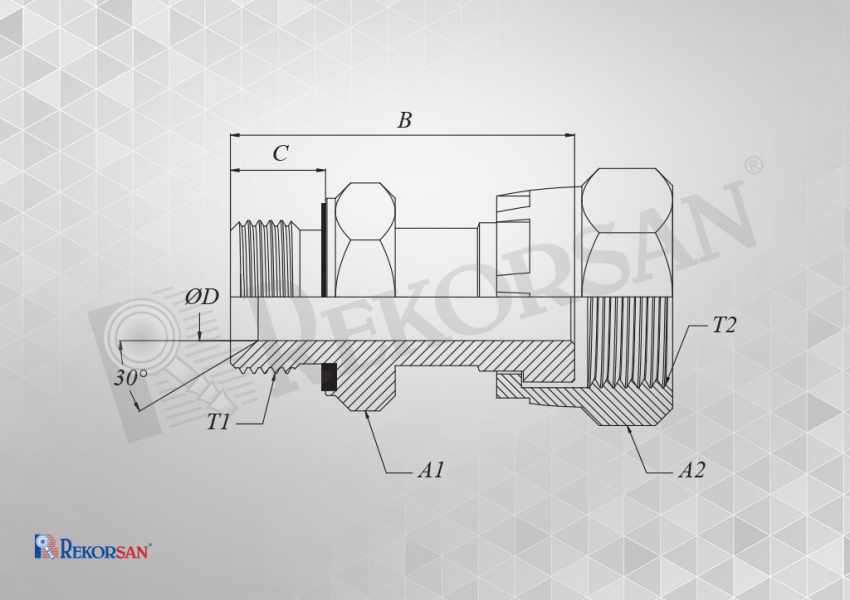

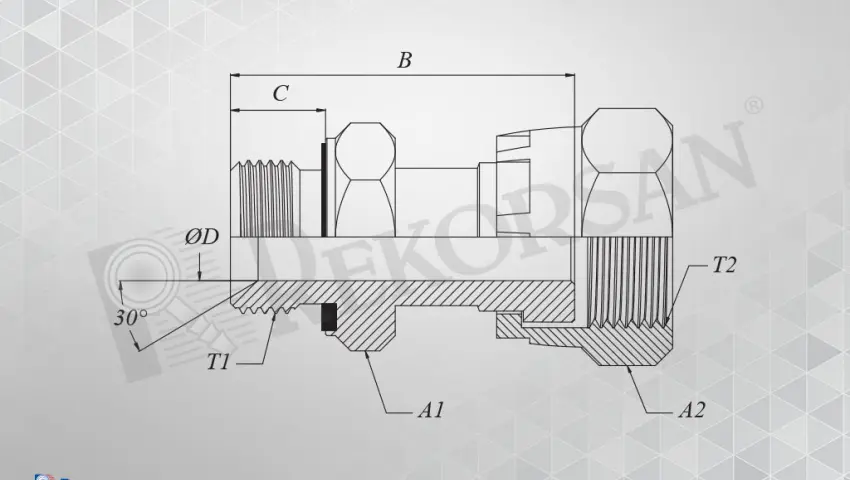

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | A1 | A2 |
| RK-1314-ROTN | R1/4-19 | 9/16-18 | 35.5 | 12 | 5 | 19 | 19 |
| RK-1317-ROTN | R1/4-19 | 11/16-16 | 37.5 | 12 | 6 | 19 | 22 |
| RK-1717-ROTN | R3/8-19 | 11/16-16 | 38 | 12 | 6 | 22 | 22 |
| RK-1721-ROTN | R3/8-19 | 13/16-16 | 42 | 12 | 9 | 22 | 24 |
| RK-2121-ROTN | R1/2-14 | 13/16-16 | 45 | 14 | 9 | 27 | 24 |
| RK-2125-ROTN | R1/2-14 | 1"-14 | 48 | 14 | 12 | 27 | 30 |
| RK-2630-ROTN | R3/4-14 | 1"3/16-12 | 53 | 16 | 15 | 32 | 36 |
| RK-2637-ROTN | R3/4-14 | 1"7/16-12 | 55.5 | 16 | 16 | 36 | 41 |
| RK-3337-ROTN | R1"-11 | 1"7/16-12 | 58 | 18 | 19 | 41 | 41 |
| RK-4243-ROTN | R1"1/4-11 | 1"11/16-12 | 64 | 20 | 23 | 50 | 50 |
