BSP - METRİK PFX TERS RAKOR
BSP - METRİK PFX TERS RAKOR

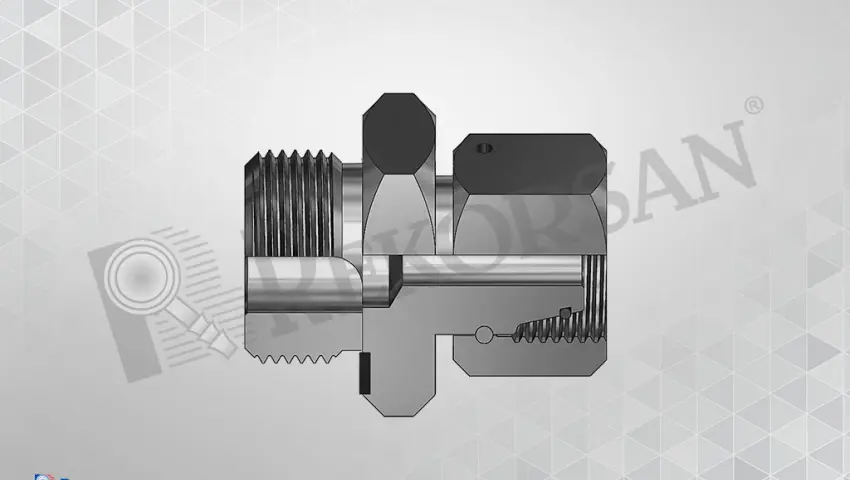

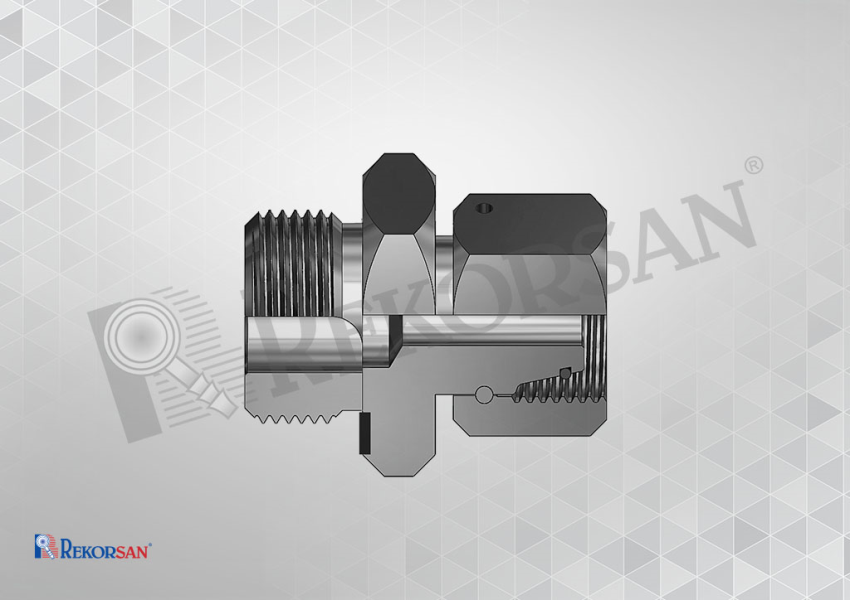

| BSP - METRİK PFX TERS RAKOR BSP - METRIC SWIVEL CONNECTOR WITH ELASTOMERIC SEAL | ||||||||

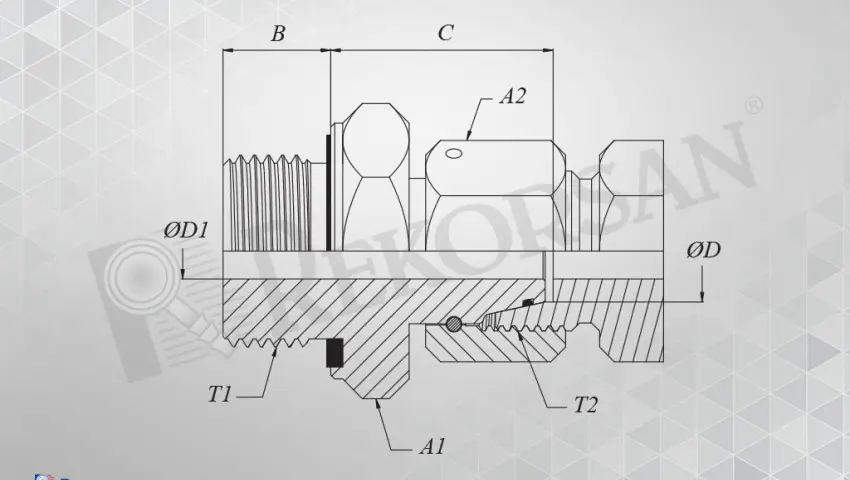

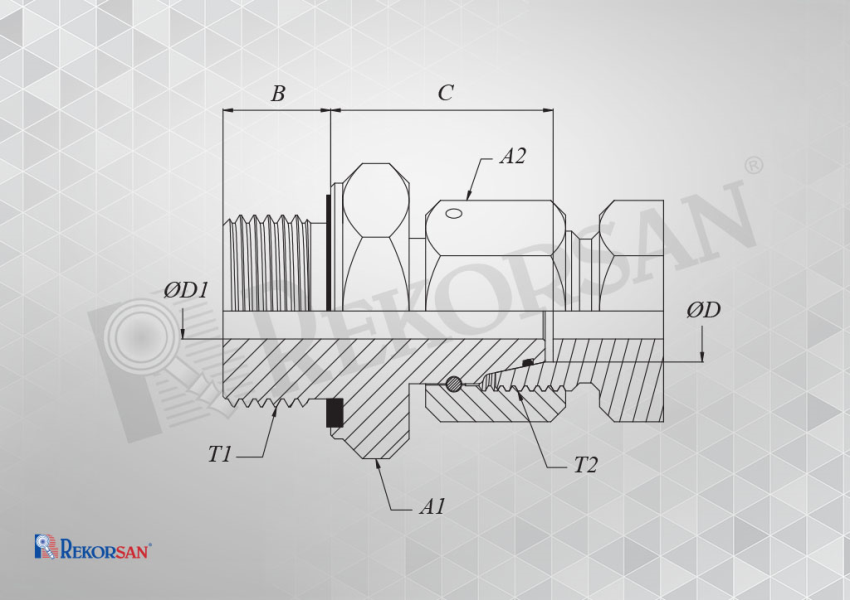

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | BORU ÇAPI TUBE OD ØD | C | B | ØD1 | A1 | A2 |
| L TİPİ / L TYPE | ||||||||
| RK-1006-RMTR-L | R1/8-28 | M12x1,5 6L | 6 | 24.5 | 8 | 3 | 14 | 17 |
| RK-1008-RMTR-L | R1/8-28 | M14x1,5 8L | 8 | 25 | 8 | 4 | 14 | 17 |
| RK-1306-RMTR-L | R1/4-19 | M12x1,5 6L | 6 | 25 | 12 | 3 | 19 | 17 |
| RK-1308-RMTR-L | R1/4-19 | M14x1,5 8L | 8 | 29.5 | 12 | 4 | 19 | 17 |
| RK-1310-RMTR-L | R1/4-19 | M16x1,5 10L | 10 | 27.5 | 12 | 6 | 19 | 19 |
| RK-1312-RMTR-L | R1/4-19 | M18x1,5 12L | 12 | 27.5 | 12 | 6 | 19 | 22 |
| RK-1708-RMTR-L | R3/8-19 | M14x1,5 8L | 8 | 27.5 | 12 | 4 | 22 | 17 |
| RK-1710-RMTR-L | R3/8-19 | M16x1,5 10L | 10 | 29 | 12 | 6 | 22 | 19 |
| RK-1712-RMTR-L | R3/8-19 | M18x1,5 12L | 12 | 34 | 12 | 8 | 22 | 22 |
| RK-1715-RMTR-L | R3/8-19 | M22x1,5 15L | 15 | 30 | 12 | 9 | 22 | 27 |
| RK-2110-RMTR-L | R1/2-14 | M16x1,5 10L | 10 | 27.5 | 14 | 6 | 27 | 19 |
| RK-2112-RMTR-L | R1/2-14 | M18x1,5 12L | 12 | 29.5 | 14 | 8 | 27 | 22 |
| RK-2115-RMTR-L | R1/2-14 | M22x1,5 15L | 15 | 32 | 14 | 10 | 27 | 27 |
| RK-2118-RMTR-L | R1/2-14 | M26x1,5 18L | 18 | 31.5 | 14 | 13 | 27 | 32 |
| RK-2122-RMTR-L | R1/2-14 | M30x2 22L | 22 | 32.5 | 14 | 13 | 27 | 36 |
| RK-2618-RMTR-L | R3/4-14 | M26x1,5 18L | 18 | 29.5 | 16 | 13 | 32 | 32 |
| RK-2622-RMTR-L | R3/4-14 | M30x2 22L | 22 | 32.5 | 16 | 17 | 32 | 36 |
| RK-2628-RMTR-L | R3/4-14 | M36x2 28L | 28 | 34 | 16 | 18 | 36 | 41 |
| RK-3322-RMTR-L | R1"-11 | M30x2 22L | 22 | 36 | 18 | 17 | 41 | 36 |
| RK-3328-RMTR-L | R1"-11 | M36x2 28L | 28 | 35 | 18 | 22 | 41 | 41 |
| RK-3335-RMTR-L | R1"-11 | M45x2 35L | 35 | 41 | 18 | 22 | 46 | 50 |
| RK-4228-RMTR-L | R1"1/4-11 | M36x2 28L | 28 | 37 | 20 | 22 | 50 | 41 |
| RK-4235-RMTR-L | R1"1/4-11 | M45x2 35L | 35 | 42.5 | 20 | 28 | 50 | 50 |
| RK-4242-RMTR-L | R1"1/4-11 | M52x2 42L | 42 | 44.5 | 20 | 30 | 50 | 60 |
| RK-4842-RMTR-L | R1"1/2-11 | M52x2 42L | 42 | 46.5 | 22 | 34 | 55 | 60 |
| S TİPİ / S TYPE | ||||||||
| RK-1306-RMTR-S | R1/4-19 | M14x1,5 6S | 6 | 27 | 12 | 3 | 19 | 17 |
| RK-1308-RMTR-S | R1/4-19 | M16x1,5 8S | 8 | 29.5 | 12 | 4 | 19 | 19 |
| RK-1310-RMTR-S | R1/4-19 | M18x1,5 10S | 10 | 31.5 | 12 | 6 | 19 | 22 |
| RK-1312-RMTR-S | R1/4-19 | M20x1,5 12S | 12 | 31.5 | 12 | 6 | 19 | 24 |
| RK-1708-RMTR-S | R3/8-19 | M16x1,5 8S | 8 | 30.5 | 12 | 4 | 22 | 19 |
| RK-1710-RMTR-S | R3/8-19 | M18x1,5 10S | 10 | 32 | 12 | 6 | 22 | 22 |
| RK-1712-RMTR-S | R3/8-19 | M20x1,5 12S | 12 | 34 | 12 | 8 | 22 | 24 |
| RK-1716-RMTR-S | R3/8-19 | M24x1,5 16S | 16 | 36.5 | 12 | 9 | 22 | 30 |
| RK-2112-RMTR-S | R1/2-14 | M20x1,5 12S | 12 | 35 | 14 | 8 | 27 | 24 |
| RK-2116-RMTR-S | R1/2-14 | M24x1,5 16S | 16 | 37 | 14 | 11 | 27 | 30 |
| RK-2120-RMTR-S | R1/2-14 | M30x2 20S | 20 | 42 | 14 | 12 | 27 | 36 |
| RK-2616-RMTR-S | R3/4-14 | M24x1,5 16S | 16 | 39.5 | 16 | 11 | 32 | 30 |
| RK-2620-RMTR-S | R3/4-14 | M30x2 20S | 20 | 43 | 16 | 14 | 32 | 36 |
| RK-2625-RMTR-S | R3/4-14 | M36x2 25S | 25 | 46.5 | 16 | 16 | 36 | 46 |
| RK-3320-RMTR-S | R1"-11 | M30x2 20S | 20 | 44 | 18 | 14 | 41 | 36 |
| RK-3325-RMTR-S | R1"-11 | M36x2 25S | 25 | 48 | 18 | 18 | 41 | 46 |
| RK-3330-RMTR-S | R1"-11 | M42x2 30S | 30 | 50 | 18 | 22 | 41 | 50 |
| RK-4225-RMTR-S | R1"1/4-11 | M36x2 25S | 25 | 45 | 20 | 18 | 50 | 46 |
| RK-4230-RMTR-S | R1"1/4-11 | M42x2 30S | 30 | 51 | 20 | 23 | 50 | 50 |
| RK-4238-RMTR-S | R1"1/4-11 | M52x2 38S | 38 | 58 | 20 | 28 | 50 | 60 |
| RK-4838-RMTR-S | R1"1/2-11 | M52x2 38S | 38 | 60 | 22 | 30 | 55 | 60 |
