METRİK PFX KÖRTAPA
METRİK PFX KÖRTAPA

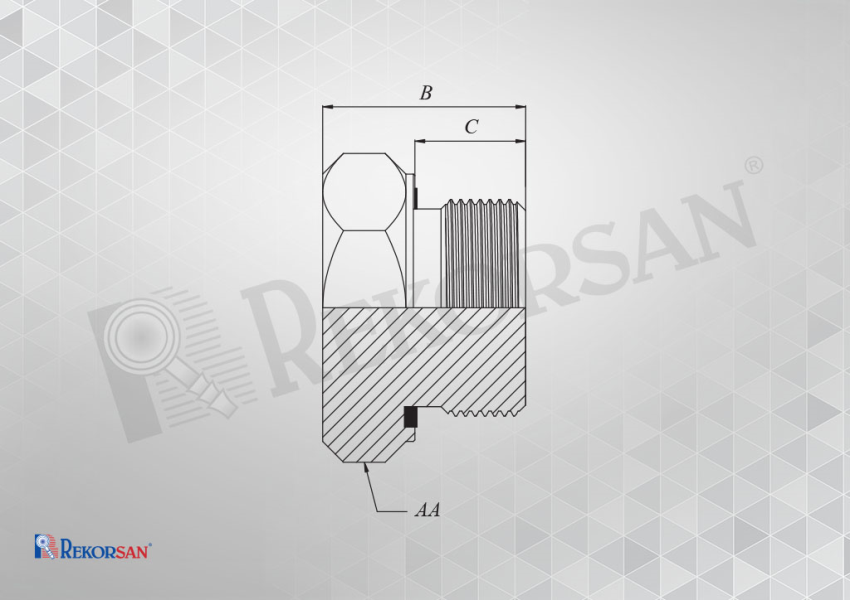

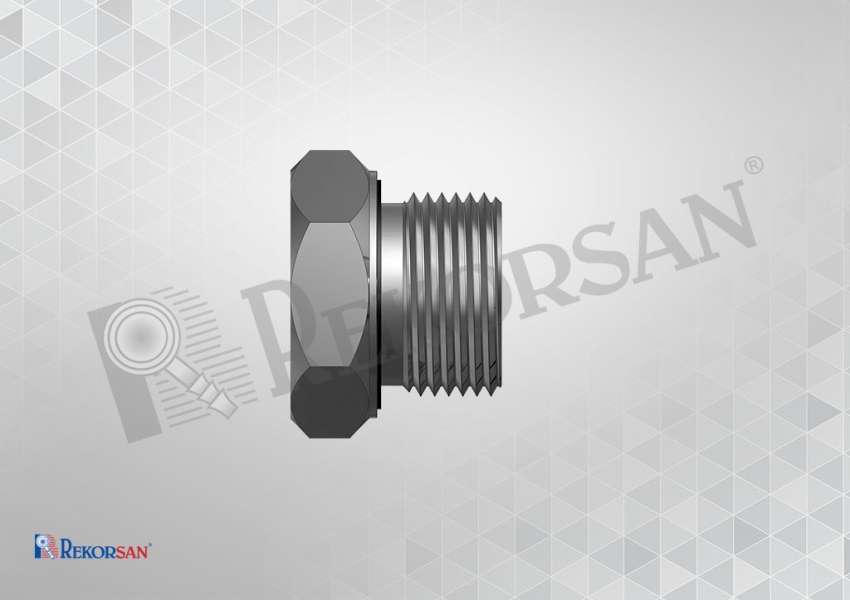

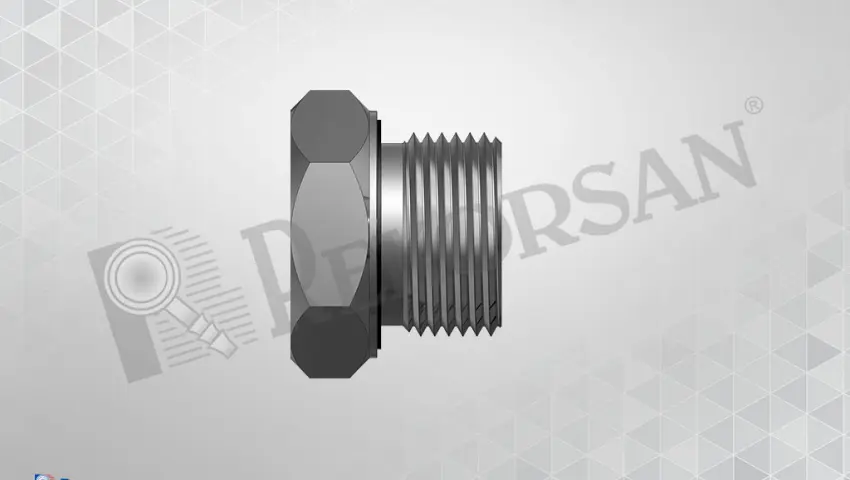

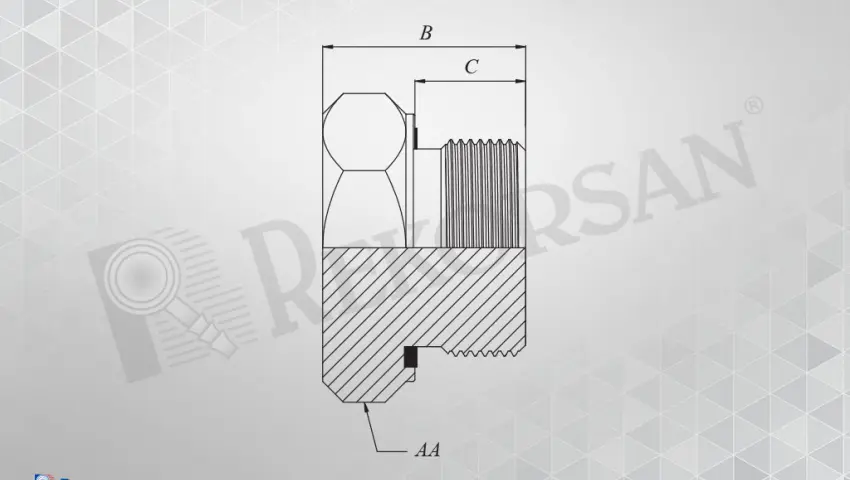

| METRİK PFX KÖRTAPA MALE METRIC THREAD WITH ELASTOMERIC SEAL (EXT. HEX) | ||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | AA |
| RK-1215-MKT | M12x1,5 | 20 | 12 | 17 |
| RK-1415-MKT | M14x1,5 | 20 | 12 | 19 |
| RK-1615-MKT | M16x1,5 | 22 | 12 | 22 |
| RK-1815-MKT | M18x1,5 | 23 | 12 | 24 |
| RK-2015-MKT | M20x1,5 | 25 | 14 | 27 |
| RK-2215-MKT | M22x1,5 | 26 | 14 | 27 |
| RK-2415-MKT | M24x1,5 (PUL SIKMALI / METAL SEAL) | 22.5 | 13 | 30 |
| RK-2615-MKT | M26x1,5 | 29 | 16 | 32 |
| RK-3020-MKT | M30x2 (PUL SIKMALI / METAL SEAL) | 27 | 16 | 36 |
