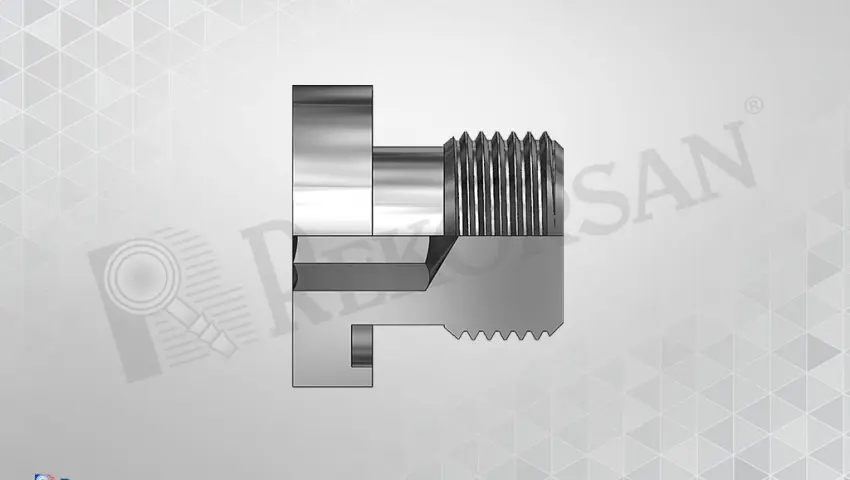

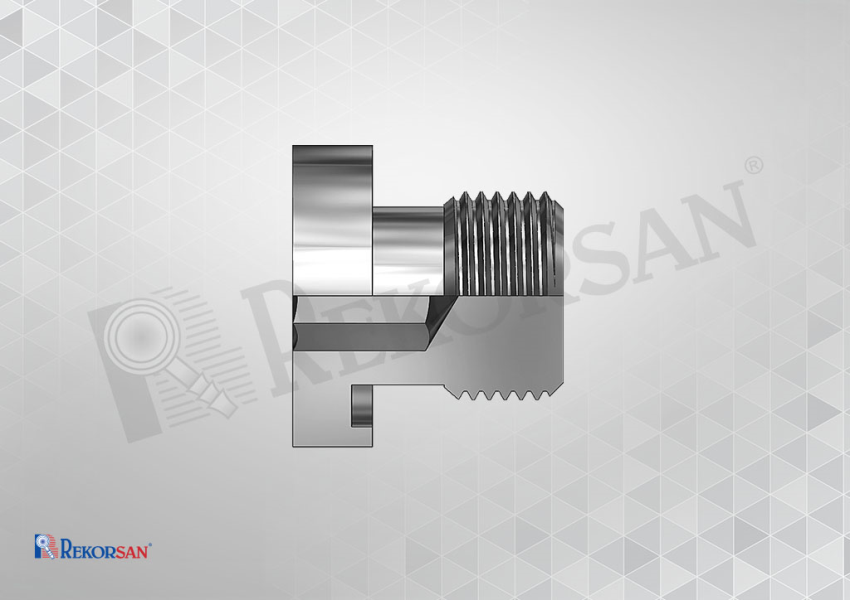

BSP PFX ALYANBAŞLI KÖRTAPA
BSP PFX ALYANBAŞLI KÖRTAPA

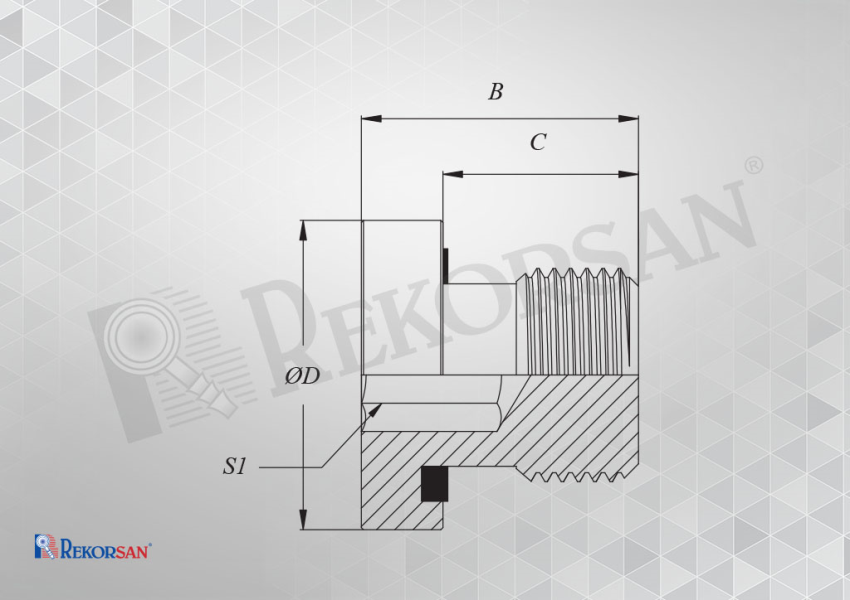

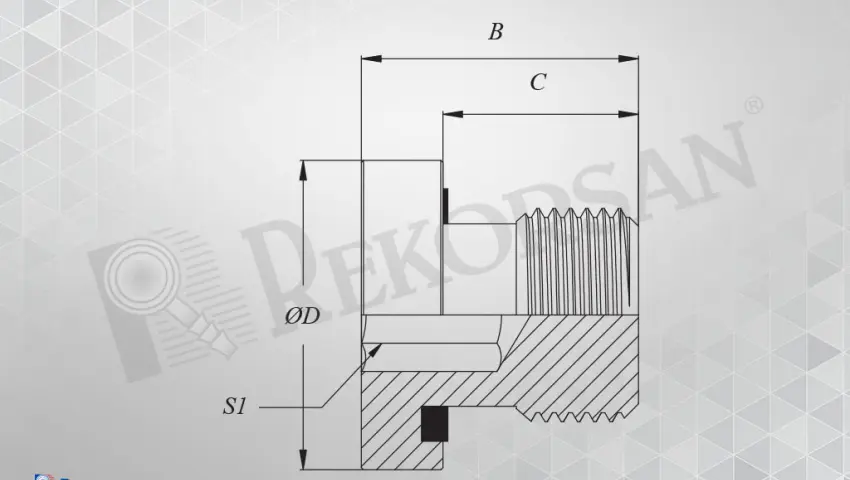

| BSP PFX ALYANBAŞLI KÖRTAPA MALE BSP THREAD WITH ELASTOMERIC SEAL (IN. HEX) | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | ØD | S1 |
| RK-1028-RAT | R1/8-28 | 12 | 8 | 14 | 5 |
| RK-1319-RAT | R1/4-19 | 17 | 12 | 19 | 6 |
| RK-1719-RAT | R3/8-19 | 17 | 12 | 22 | 8 |
| RK-2114-RAT | R1/2-14 | 19 | 14 | 27 | 10 |
| RK-2614-RAT | R3/4-14 | 21 | 16 | 32 | 12 |
| RK-3311-RAT | R1"-11 | 22.5 | 16 | 40 | 17 |
| RK-4211-RAT | R1"1/4-11 | 22.5 | 16 | 50 | 22 |
| RK-4811-RAT | R1"1/2-11 | 22.5 | 16 | 55 | 24 |
| RK-6011-RAT | R2"-11 | 35 | 24 | 72 | 32 |
