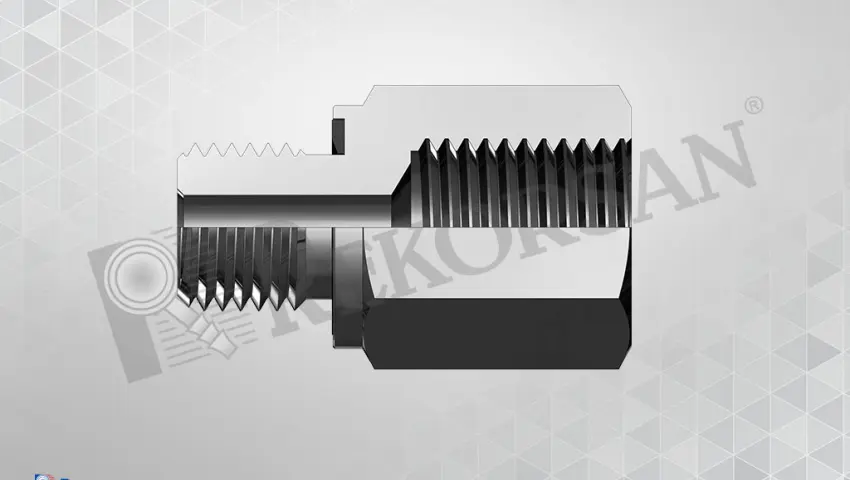

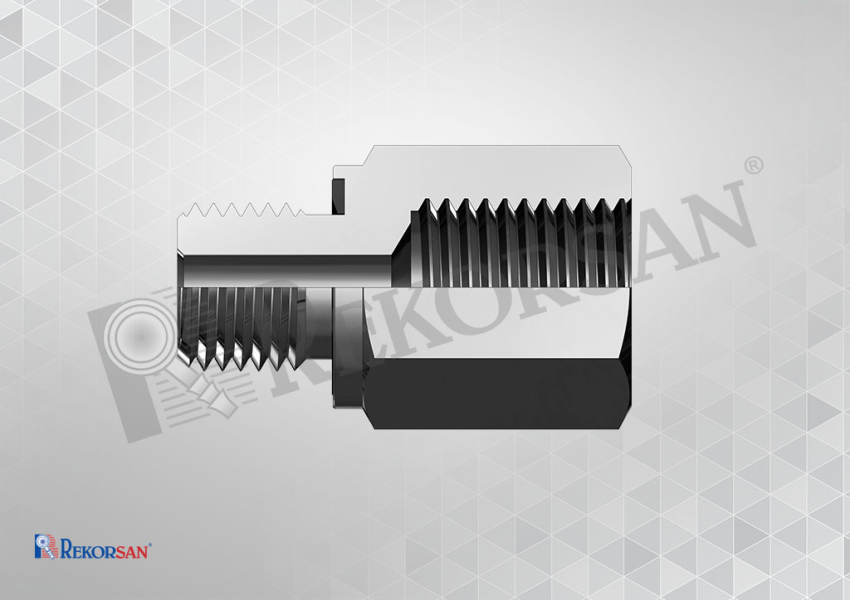

BSP UZUN PFX REDÜKSİYON
BSP UZUN PFX REDÜKSİYON

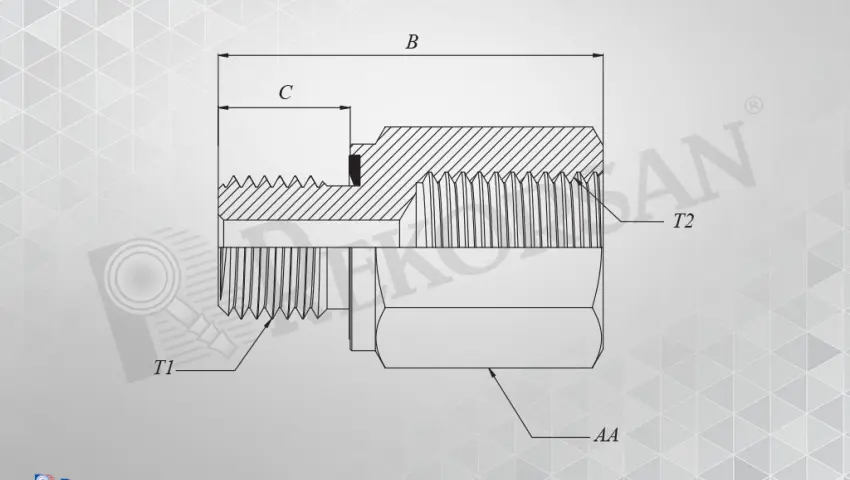

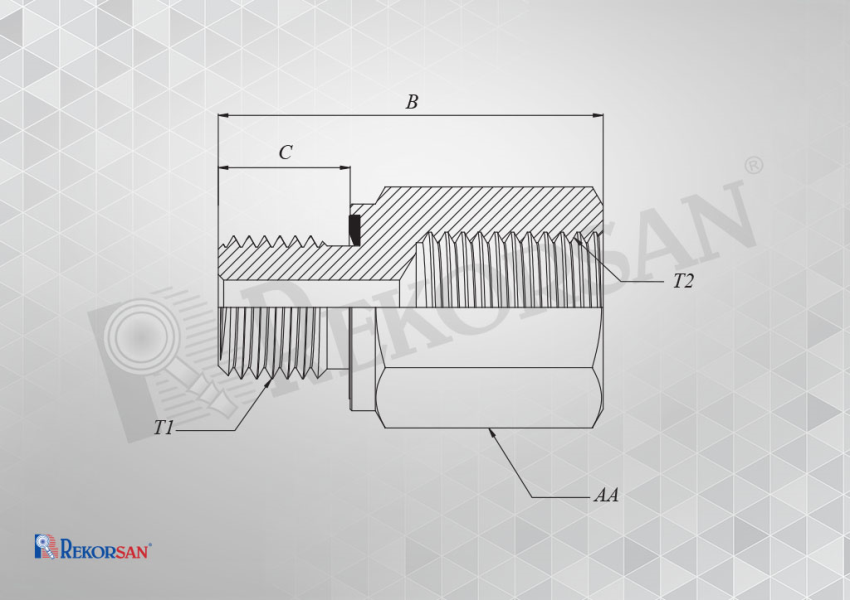

| BSP UZUN PFX REDİKSİYON MALE BSP THREAD WITH ELASTOMERIC SEAL - FEMALE BSP THREAD | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | AA |
| RK-1010-URD | R1/8-28 | R1/8-28 | 23 | 8 | 14 |
| RK-1013-URD | R1/8-28 | R1/4-19 | 31 | 8 | 19 |
| RK-1310-URD | R1/4-19 | R1/8-28 | 28 | 12 | 19 |
| RK-1313-URD | R1/4-19 | R1/4-19 | 35 | 12 | 19 |
| RK-1317-URD | R1/4-19 | R3/8-19 | 36 | 12 | 24 |
| RK-1321-URD | R1/4-19 | R1/2-14 | 40 | 12 | 30 |
| RK-1713-URD | R3/8-19 | R1/4-19 | 36 | 12 | 22 |
| RK-1717-URD | R3/8-19 | R3/8-19 | 36 | 12 | 22 |
| RK-1721-URD | R3/8-19 | R1/2-14 | 41 | 12 | 30 |
| RK-1726-URD | R3/8-19 | R3/4-14 | 44 | 12 | 36 |
| RK-2117-URD | R1/2-14 | R3/8-19 | 36 | 14 | 27 |
| RK-2121-URD | R1/2-14 | R1/2-14 | 39 | 14 | 27 |
| RK-2126-URD | R1/2-14 | R3/4-14 | 46 | 14 | 36 |
| RK-2133-URD | R1/2-14 | R1"-11 | 49 | 14 | 41 |
| RK-2621-URD | R3/4-14 | R1/2-14 | 41 | 16 | 32 |
| RK-2626-URD | R3/4-14 | R3/4-14 | 43.5 | 16 | 36 |
| RK-2633-URD | R3/4-14 | R1"-11 | 51 | 16 | 41 |
| RK-2642-URD | R3/4-14 | R1"1/4-11 | 55 | 16 | 55 |
| RK-3326-URD | R1"-11 | R3/4-14 | 49 | 18 | 41 |
| RK-3342-URD | R1"-11 | R1"1/4-11 | 57 | 18 | 55 |
| RK-3348-URD | R1"-11 | R1"1/2-11 | 59 | 18 | 60 |
| RK-4233-URD | R1"1/4-11 | R1"-11 | 52 | 20 | 50 |
| RK-4248-URD | R1"1/4-11 | R1"1/2-11 | 60 | 20 | 60 |
| RK-4842-URD | R1"1/2-11 | R1"1/4-11 | 58 | 22 | 55 |
