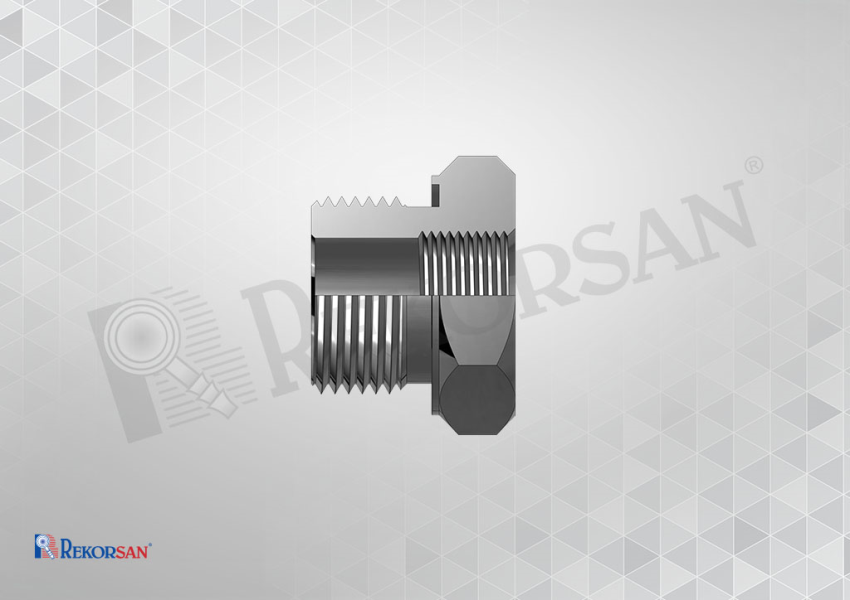

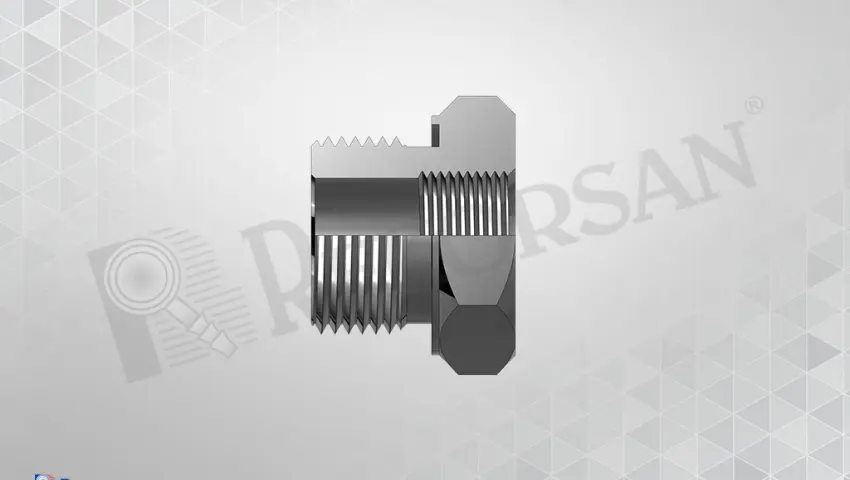

BSP KISA PFX REDÜKSİYON
BSP KISA PFX REDÜKSİYON

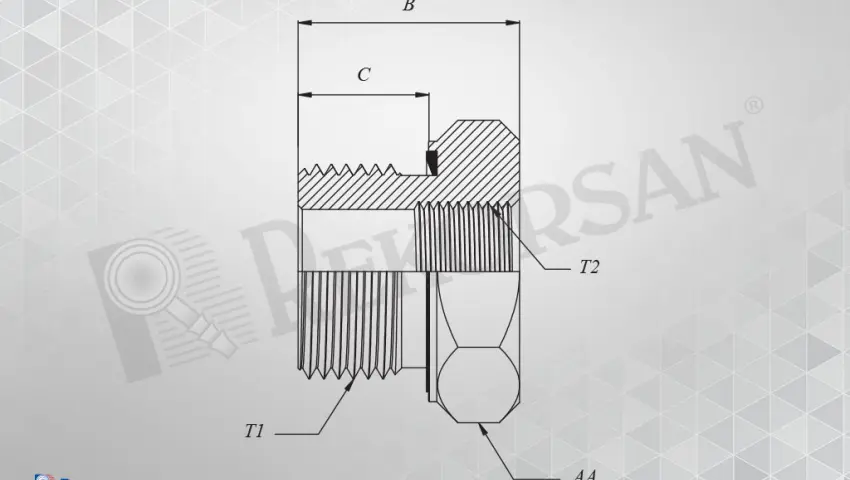

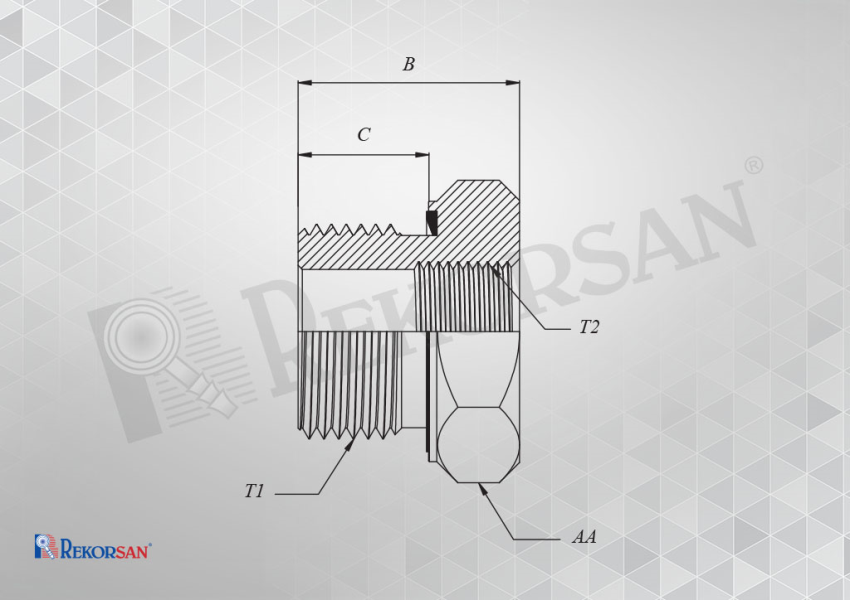

| BSP KISA PFX REDİKSİYON MALE BSP THREAD WITH ELASTOMERIC SEAL - FEMALE BSP THREAD | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | AA |
| RK-1310-KRD | R1/4-19 | R1/8-28 | 20 | 12 | 19 |
| RK-1710-KRD | R3/8-19 | R1/8-28 | 20.5 | 12 | 22 |
| RK-1713-KRD | R3/8-19 | R1/4-19 | 20.5 | 12 | 22 |
| RK-2113-KRD | R1/2-14 | R1/4-19 | 24 | 14 | 27 |
| RK-2117-KRD | R1/2-14 | R3/8-19 | 24 | 14 | 27 |
| RK-2613-KRD | R3/4-14 | R1/4-19 | 27 | 16 | 32 |
| RK-2617-KRD | R3/4-14 | R3/8-19 | 27 | 16 | 32 |
| RK-2621-KRD | R3/4-14 | R1/2-14 | 27 | 16 | 32 |
| RK-3321-KRD | R1"-11 | R1/2-14 | 30 | 18 | 41 |
| RK-3326-KRD | R1"-11 | R3/4-14 | 30 | 18 | 41 |
| RK-4226-KRD | R1"1/4-11 | R3/4-14 | 33.5 | 20 | 50 |
| RK-4233-KRD | R1"1/4-11 | R1"-11 | 33.5 | 20 | 50 |
| RK-4833-KRD | R1"1/2-11 | R1"-11 | 36 | 22 | 55 |
| RK-4842-KRD | R1"1/2-11 | R1"1/4-11 | 36 | 22 | 55 |
| RK-6042-KRD | R2"-11 | R1"1/4-11 | 42 | 24 | 70 |
| RK-6048-KRD | R2"-11 | R1"1/2-11 | 42 | 24 | 70 |
