ORFS YANBACAK TE
ORFS YANBACAK TE

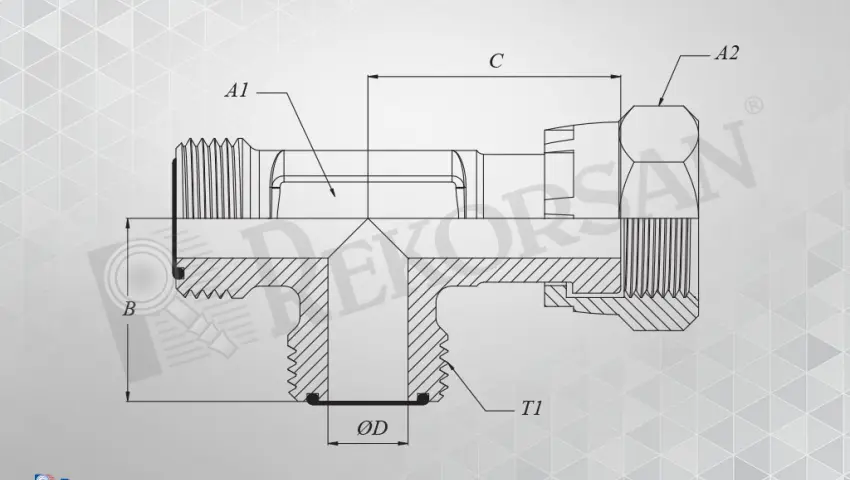

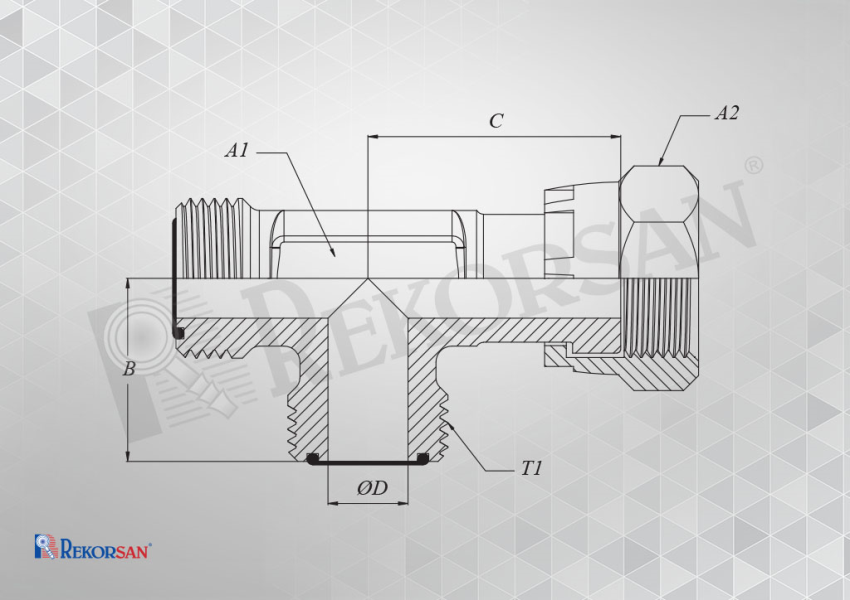

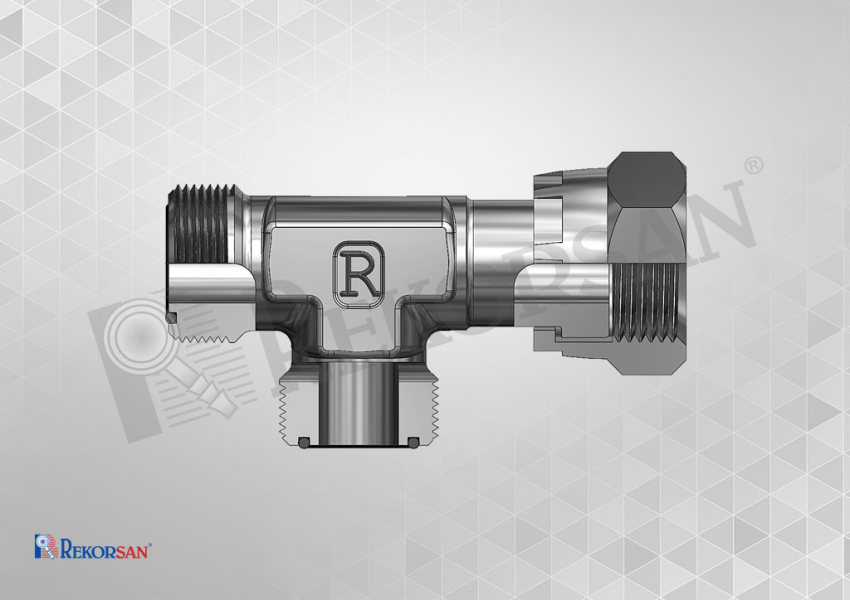

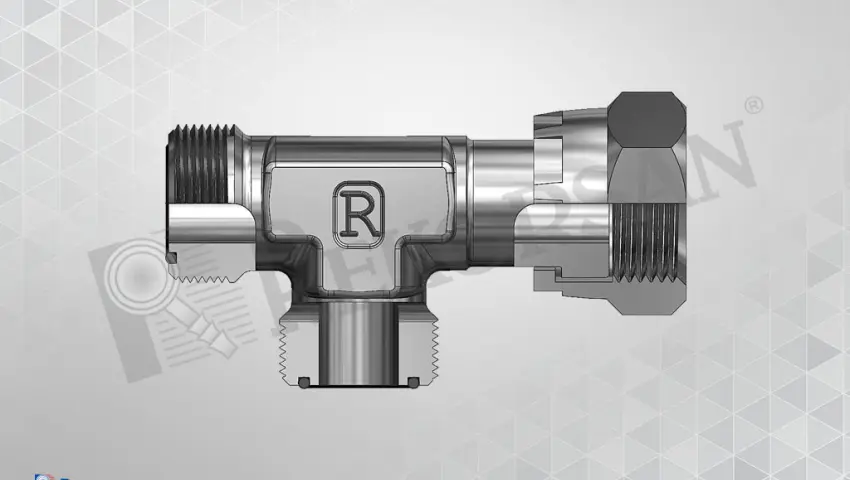

| ORFS YANBACAK TE ORFS SWIVEL RUN TEE | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD | B | C | ØD | A1 | A2 |
| RK-1414-OYT | 9/16-18 | 6 | 21 | 24 | 5 | 12 | 19 |
| RK-1717-OYT | 11/16-16 | 10 | 24 | 28 | 6 | 17 | 22 |
| RK-2121-OYT | 13/16-16 | 12 | 29 | 29.5 | 9 | 17 | 24 |
| RK-2525-OYT | 1"-14 | 16 | 31 | 36 | 12 | 24 | 30 |
| RK-3030-OYT | 1"3/16-12 | 20 | 37 | 42 | 15 | 27 | 36 |
| RK-3737-OYT | 1"7/16-12 | 25 | 42 | 45.5 | 19 | 36 | 41 |
| RK-4343-OYT | 1"11/16-12 | 30 | 48.5 | 49.5 | 25 | 41 | 50 |
