ORFS DİRSEKLER
ORFS DİRSEKLER
| ORFS DİRSEKLER ORFS ELBOWS | |||||

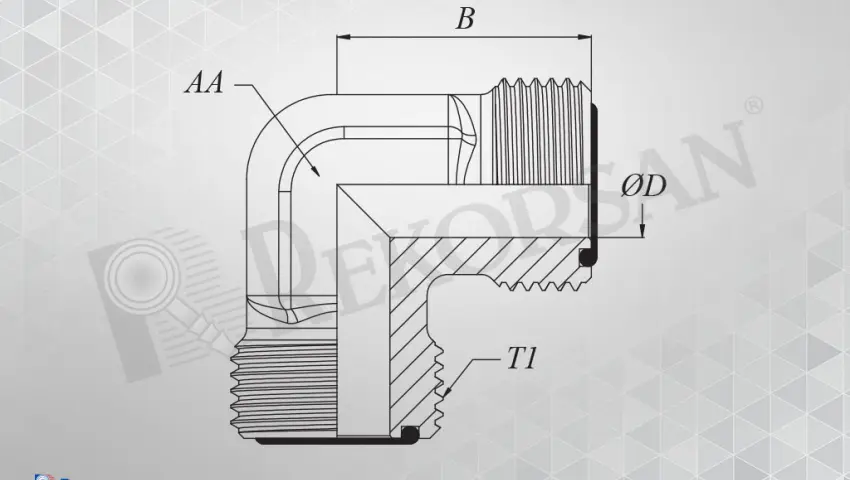

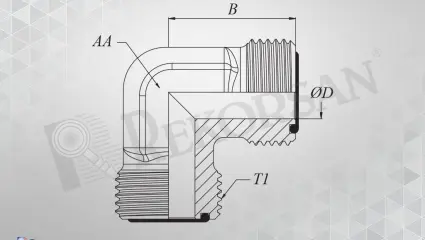

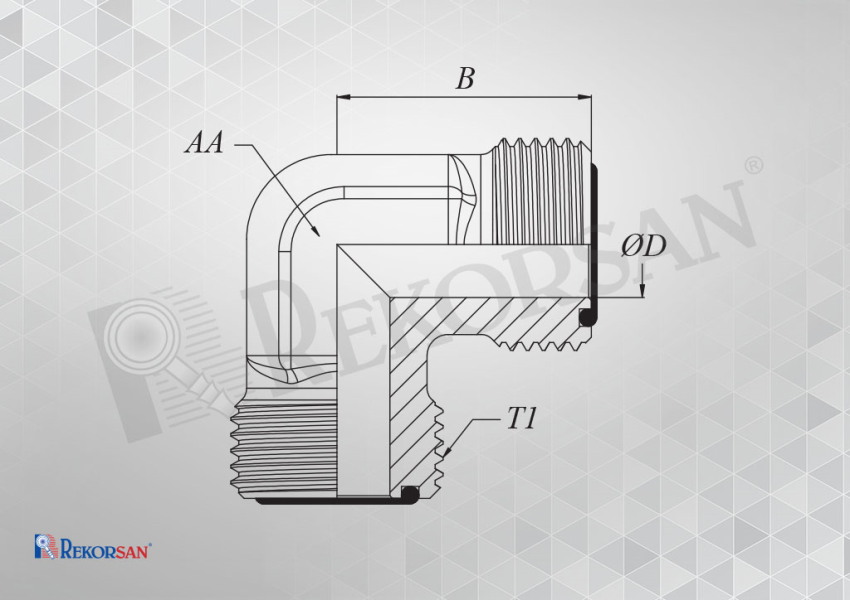

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD | B | ØD | AA |
| RK-1414-OD | 9/16-18 | 6 | 21 | 5 | 12 |
| RK-1717-OD | 11/16-16 | 10 | 24 | 6 | 17 |
| RK-2121-OD | 13/16-16 | 12 | 29 | 9 | 17 |
| RK-2525-OD | 1"-14 | 16 | 31 | 12 | 24 |
| RK-3030-OD | 1"3/16-12 | 20 | 37 | 15 | 27 |
| RK-3737-OD | 1"7/16-12 | 25 | 42 | 19 | 36 |
| RK-4343-OD | 1"11/16-12 | 30 | 48.5 | 25 | 41 |
