UNF ARA NİPELİ
UNF ARA NİPELİ

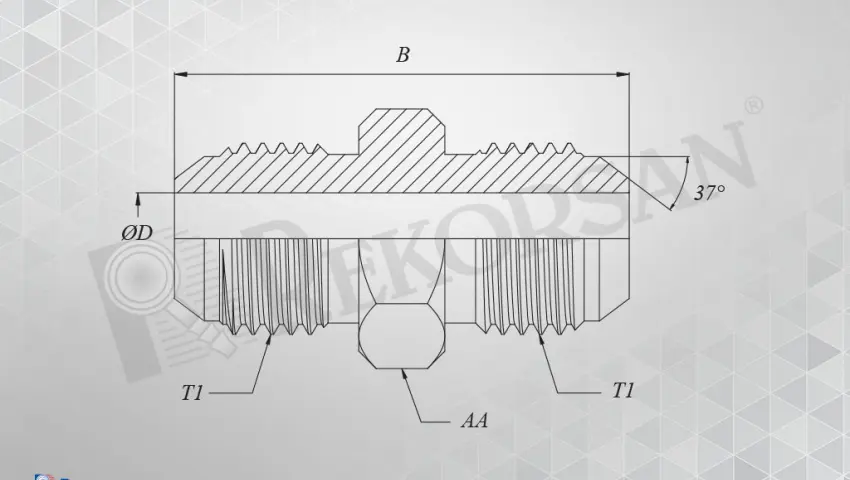

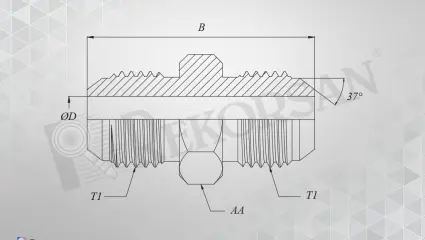

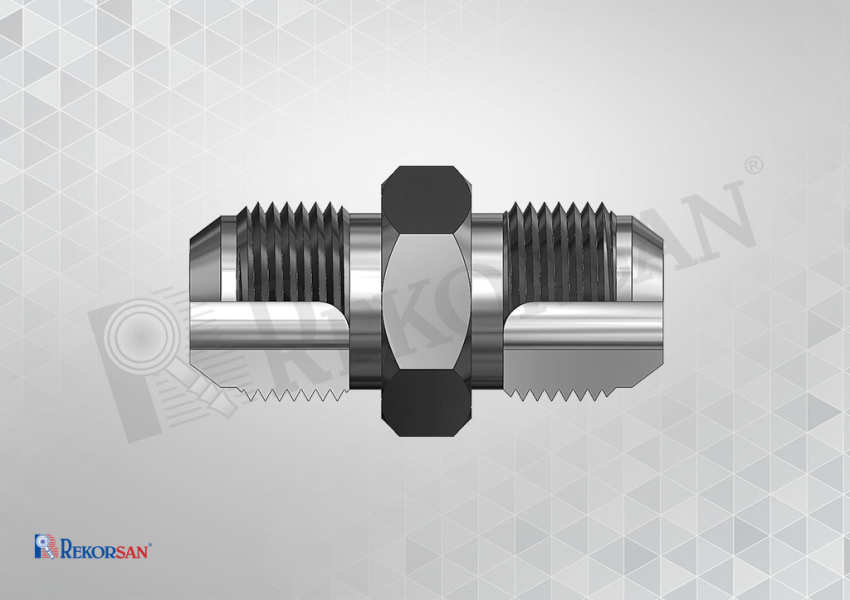

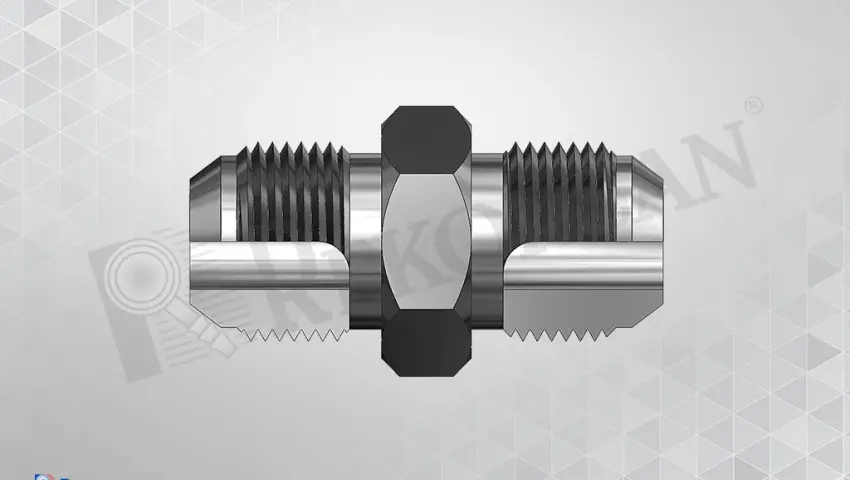

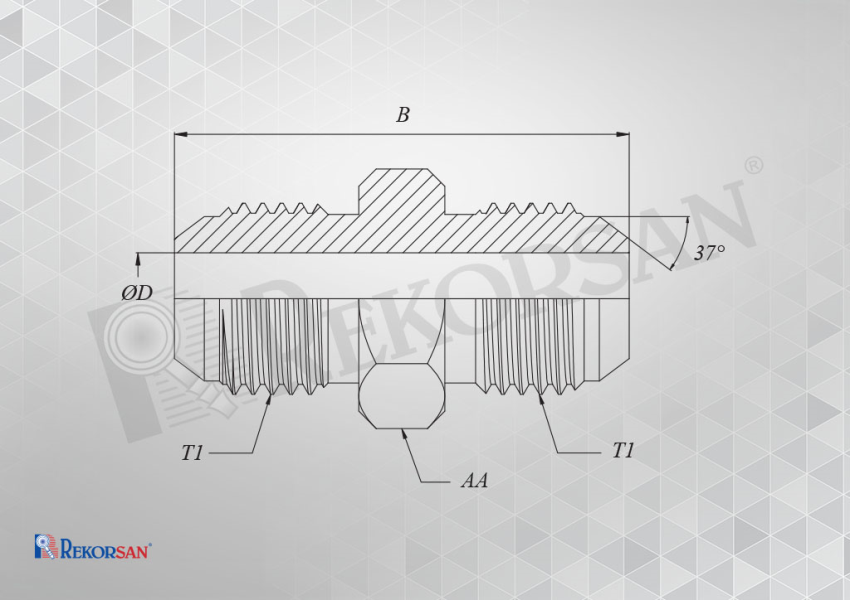

| UNF ARA NİPELİ UNF STRAIGHT UNION CONNECTOR | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | ØD | AA |
| RK-1111-WWN | 7/16-20 | 7/16-20 | 35 | 4,5 | 12 |
| RK-1212-WWN | 1/2-20 | 1/2-20 | 35 | 6 | 14 |
| RK-1414-WWN | 9/16-18 | 9/16-18 | 35,5 | 7,5 | 17 |
| RK-1616-WWN | 5/8-18 | 5/8-18 | 39 | 8 | 17 |
| RK-1919-WWN | 3/4-16 | 3/4-16 | 41 | 10 | 19 |
| RK-2222-WWN | 7/8-14 | 7/8-14 | 48 | 12,5 | 24 |
| RK-2727-WWN | 1"1/16-12 | 1"1/16-12 | 55 | 15,5 | 27 |
| RK-3333-WWN | 1"5/16-12 | 1"5/16-12 | 57 | 21,5 | 36 |
| RK-4141-WWN | 1"5/8-12 | 1"5/8-12 | 61,5 | 27,5 | 46 |
| RK-4747-WWN | 1"7/8-12 | 1"7/8-12 | 69,5 | 33,5 | 50 |
