BSPT - UNF NİPEL
BSPT - UNF NİPEL

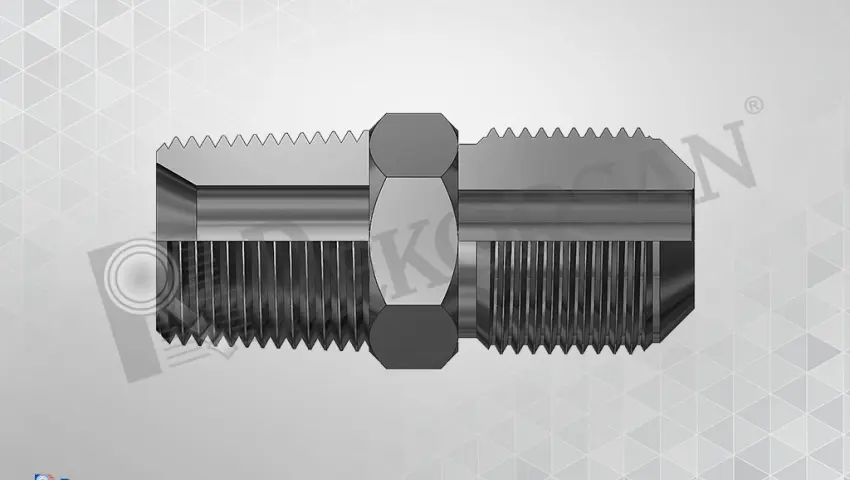

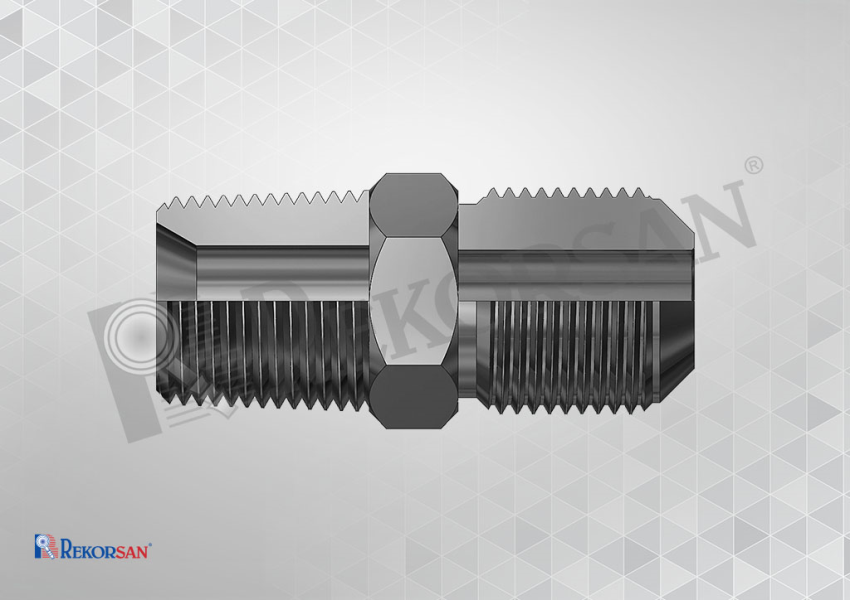

| BSPT - UNF 37° NİPEL BSPT THREAD - UNF 37° FLARE NIPPLE | |||||

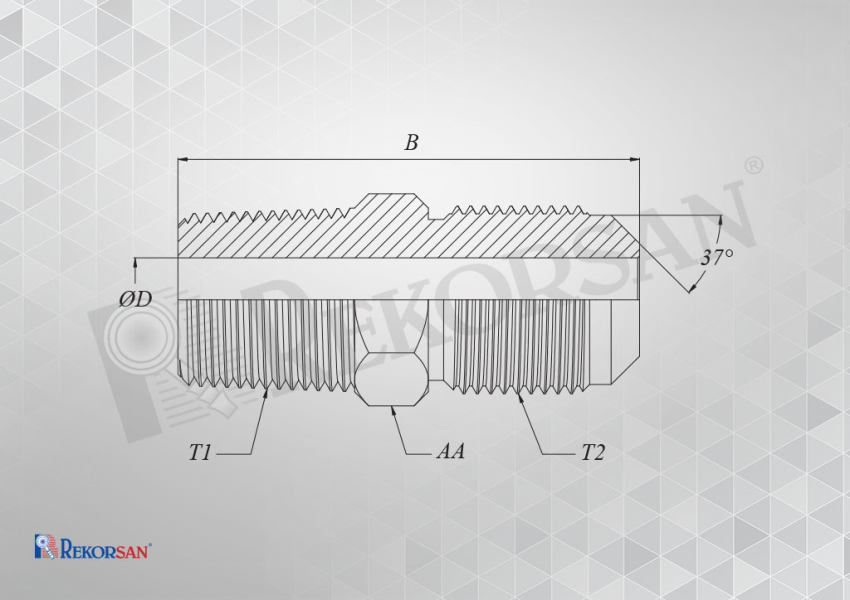

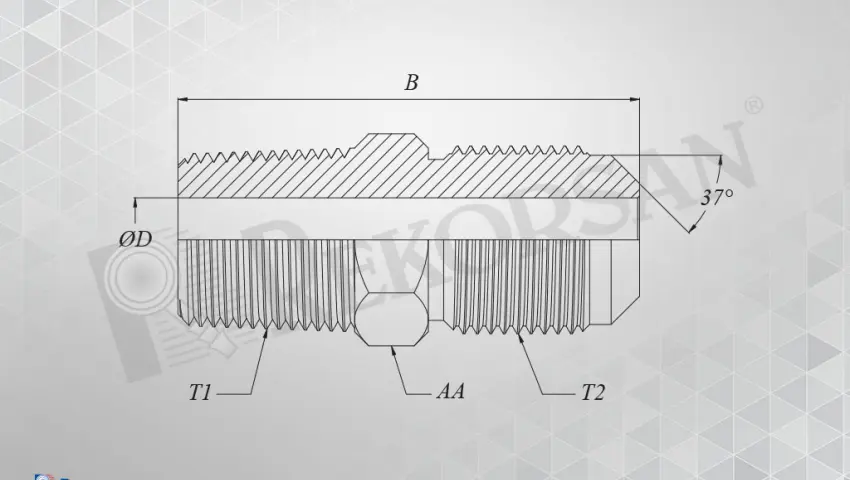

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | ØD | AA |
| RK-1011-NWN | 1/8-28 BSPT | 7/16-20 | 31.5 | 4.5 | 14 |
| RK-1311-NWN | 1/4-19 BSPT | 7/16-20 | 36 | 4.5 | 14 |
| RK-1312-NWN | 1/4-19 BSPT | 1/2-20 | 36 | 6 | 14 |
| RK-1314-NWN | 1/4-19 BSPT | 9/16-18 | 36 | 7 | 16 |
| RK-1316-NWN | 1/4-19 BSPT | 5/8-18 | 37.5 | 7 | 17 |
| RK-1319-NWN | 1/4-19 BSPT | 3/4-16 | 39 | 7 | 19 |
| RK-1714-NWN | 3/8-19 BSPT | 9/16-18 | 36 | 7.5 | 19 |
| RK-1716-NWN | 3/8-19 BSPT | 5/8-18 | 38 | 8 | 19 |
| RK-1719-NWN | 3/8-19 BSPT | 3/4-16 | 38.5 | 10 | 19 |
| RK-2114-NWN | 1/2-14 BSPT | 9/16-18 | 43 | 7.5 | 22 |
| RK-2116-NWN | 1/2-14 BSPT | 5/8-18 | 45 | 8 | 22 |
| RK-2119-NWN | 1/2-14 BSPT | 3/4-16 | 45.5 | 10 | 22 |
| RK-2122-NWN | 1/2-14 BSPT | 7/8-14 | 48 | 12.5 | 24 |
| RK-2627-NWN | 3/4-14 BSPT | 1"1/16-12 | 52 | 15.5 | 27 |
