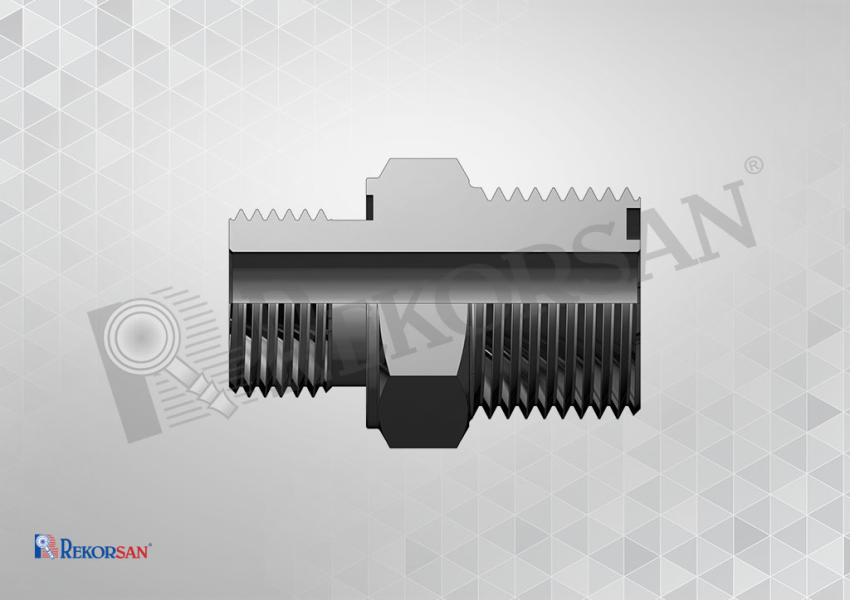

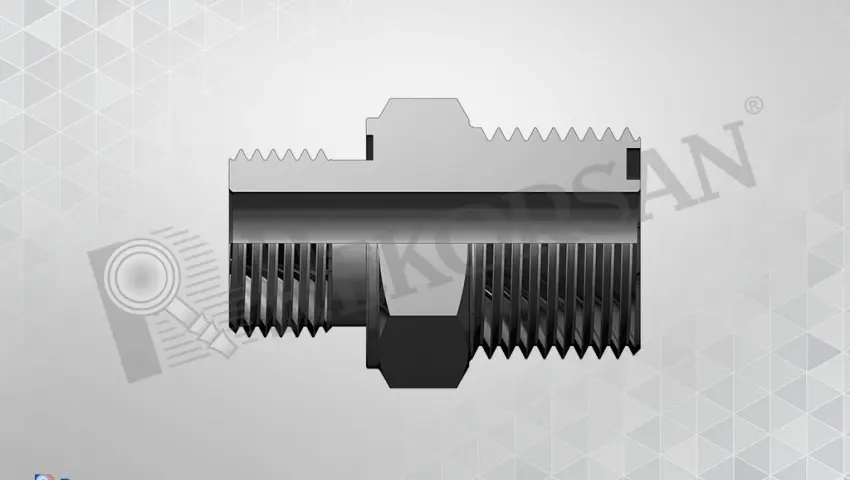

BSP ORFS PFX NİPEL
BSP ORFS PFX NİPEL
| BSP ORFS PFX NİPELLER BSP ORFS NIPPLES WITH ELASTOMERIC SEAL | ||||||

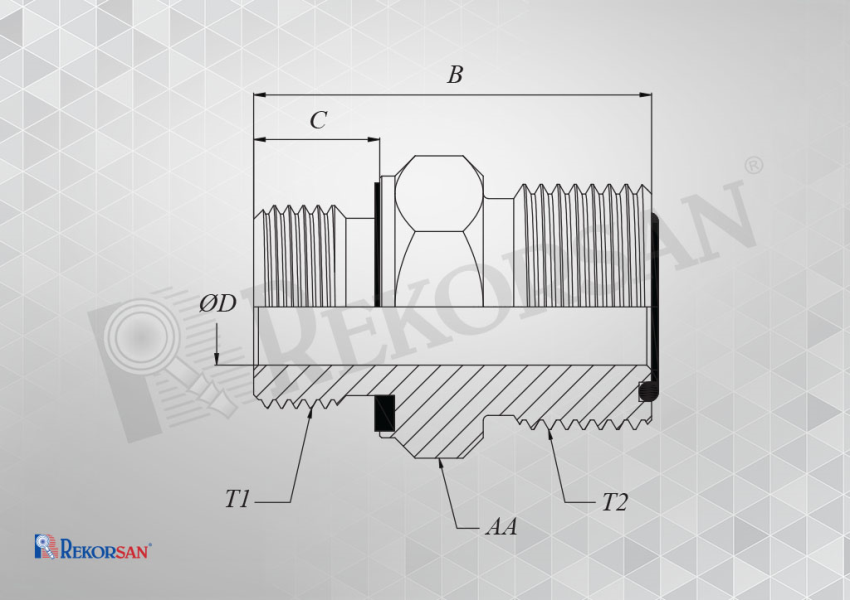

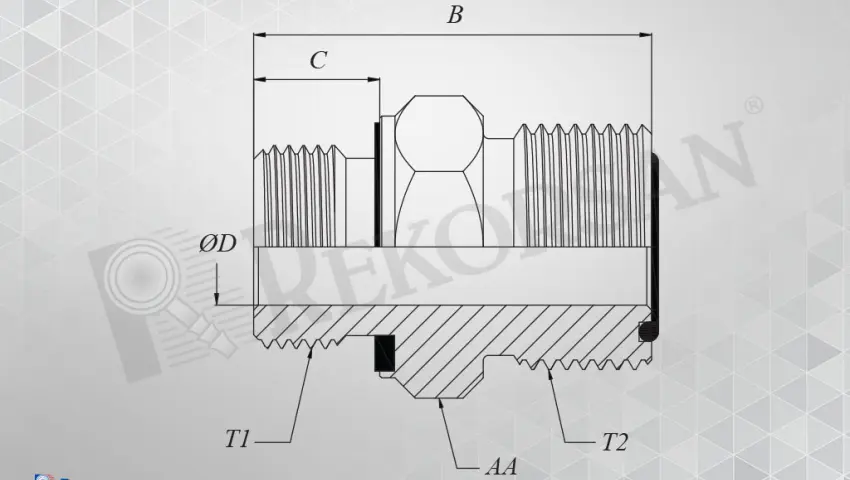

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | AA |
| RK-1314-RON | R1/4-19 | 9/16-18 | 31 | 12 | 5 | 19 |
| RK-1317-RON | R1/4-19 | 11/16-16 | 32 | 12 | 6 | 19 |
| RK-1717-RON | R3/8-19 | 11/16-16 | 33 | 12 | 6 | 22 |
| RK-1721-RON | R3/8-19 | 13/16-16 | 35 | 12 | 9 | 22 |
| RK-2121-RON | R1/2-14 | 13/16-16 | 38 | 14 | 9 | 27 |
| RK-2125-RON | R1/2-14 | 1"-14 | 41 | 14 | 12 | 27 |
| RK-2630-RON | R3/4-14 | 1"3/16-12 | 46 | 16 | 15 | 32 |
| RK-2637-RON | R3/4-14 | 1"7/16-12 | 48 | 16 | 15 | 41 |
| RK-3337-RON | R1"-11 | 1"7/16-12 | 50 | 18 | 19 | 41 |
| RK-3343-RON | R1"-11 | 1"11/16-12 | 52 | 18 | 20 | 46 |
| RK-4237-RON | R1"1/4-11 | 1"7/16-12 | 54 | 20 | 19 | 50 |
| RK-4243-RON | R1"1/4-11 | 1"11/16-12 | 54 | 20 | 23 | 50 |
