BSP ORANTI NİPELİ
BSP ORANTI NİPELİ

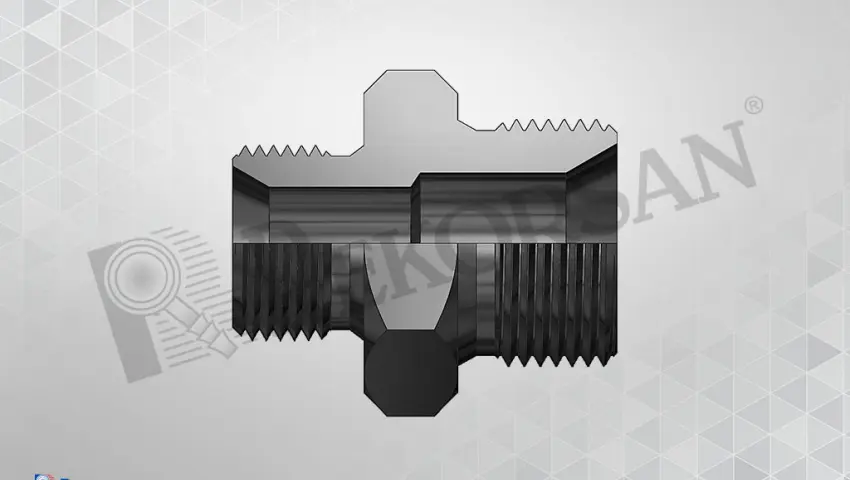

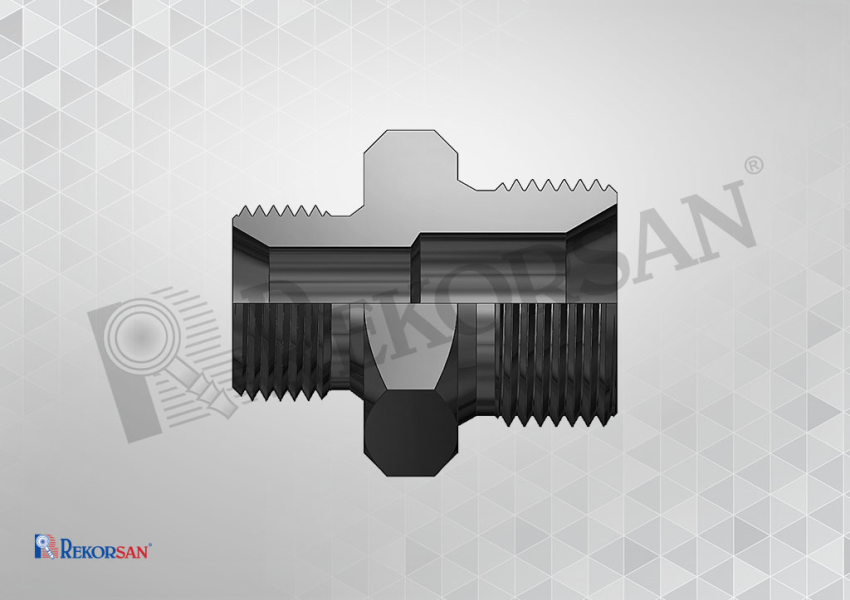

| BSP 60° ORANTI NİPELİ BSP 60° STRAIGHT REDUCER | ||||||||

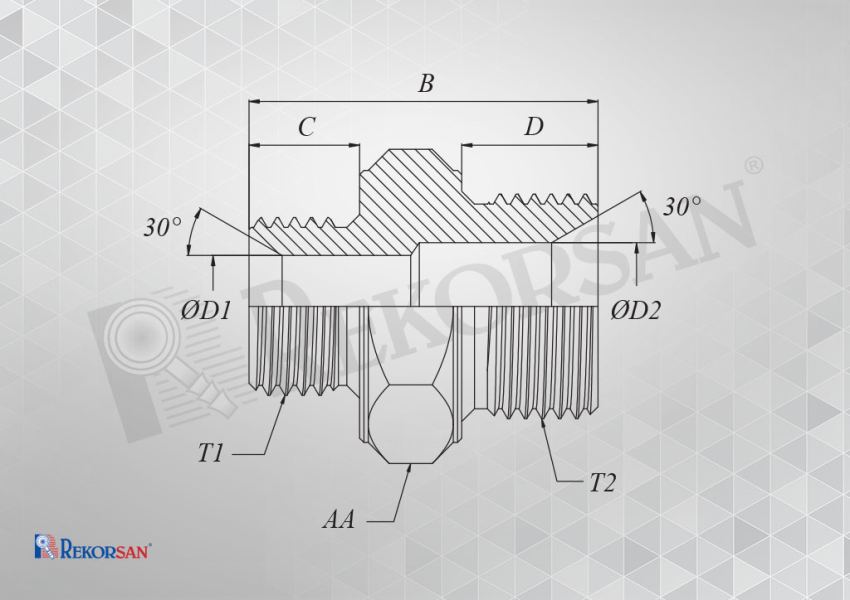

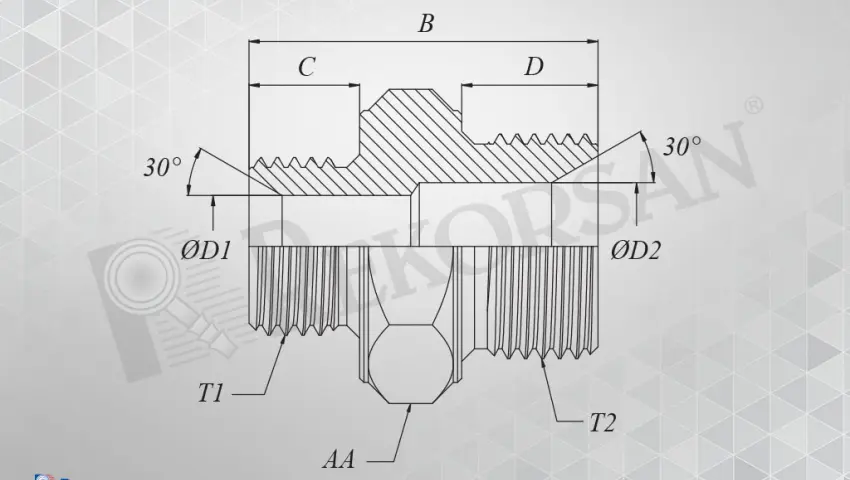

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | D | ØD1 | ØD2 | AA |
| RK-1013-RRON | R1/8-28 | R1/4-19 | 29 | 9 | 11 | 4 | 6 | 19 |
| RK-1017-RRON | R1/8-28 | R3/8-19 | 30.5 | 9 | 12 | 4 | 9 | 22 |
| RK-1317-RRON | R1/4-19 | R3/8-19 | 32.5 | 11 | 12 | 6 | 9 | 22 |
| RK-1321-RRON | R1/4-19 | R1/2-14 | 36 | 11 | 14 | 6 | 12 | 27 |
| RK-1326-RRON | R1/4-19 | R3/4-14 | 39 | 11 | 16 | 6 | 16 | 32 |
| RK-1721-RRON | R3/8-19 | R1/2-14 | 37 | 12 | 14 | 9 | 12 | 27 |
| RK-1726-RRON | R3/8-19 | R3/4-14 | 40 | 12 | 16 | 9 | 16 | 32 |
| RK-2123-RRON | R1/2-14 | R5/8-14 | 41.5 | 14 | 16 | 12 | 12 | 30 |
| RK-2126-RRON | R1/2-14 | R3/4-14 | 42 | 14 | 16 | 12 | 16 | 32 |
| RK-2133-RRON | R1/2-14 | R1"-11 | 46 | 14 | 18.5 | 12 | 20 | 41 |
| RK-2326-RRON | R5/8-14 | R3/4-14 | 44 | 16 | 16 | 14 | 16 | 32 |
| RK-2633-RRON | R3/4-14 | R1"-11 | 48 | 16 | 18.5 | 16 | 20 | 41 |
| RK-2642-RRON | R3/4-14 | R1"1/4-11 | 53.5 | 16 | 22 | 16 | 28 | 50 |
| RK-2648-RRON | R3/4-14 | R1"1/2-11 | 55.5 | 16 | 22 | 16 | 32 | 55 |
| RK-3342-RRON | R1"-11 | R1"1/4-11 | 56 | 18.5 | 22 | 20 | 28 | 50 |
| RK-3348-RRON | R1"-11 | R1"1/2-11 | 57.5 | 18.5 | 22 | 20 | 32 | 55 |
| RK-3360-RRON | R1"-11 | R2"-11 | 62 | 18.5 | 24 | 20 | 45 | 70 |
| RK-4248-RRON | R1"1/4-11 | R1"1/2-11 | 61 | 22 | 22 | 28 | 32 | 55 |
| RK-4260-RRON | R1"1/4-11 | R2"-11 | 65 | 22 | 24 | 28 | 45 | 70 |
| RK-4860-RRON | R1"1/2-11 | R2"-11 | 65 | 22 | 24 | 32 | 45 | 70 |
| RK-6075-RRON | R2"-11 | R2"1/2-11 | 70 | 24 | 24 | 45 | 56 | 81 |
| RK-7588-RRON | R2"1/2-11 | R3"-11 | 69 | 24 | 24 | 56 | 68 | 91 |
