BSP METRİK PFX NİPELLER
BSP METRİK PFX NİPELLER

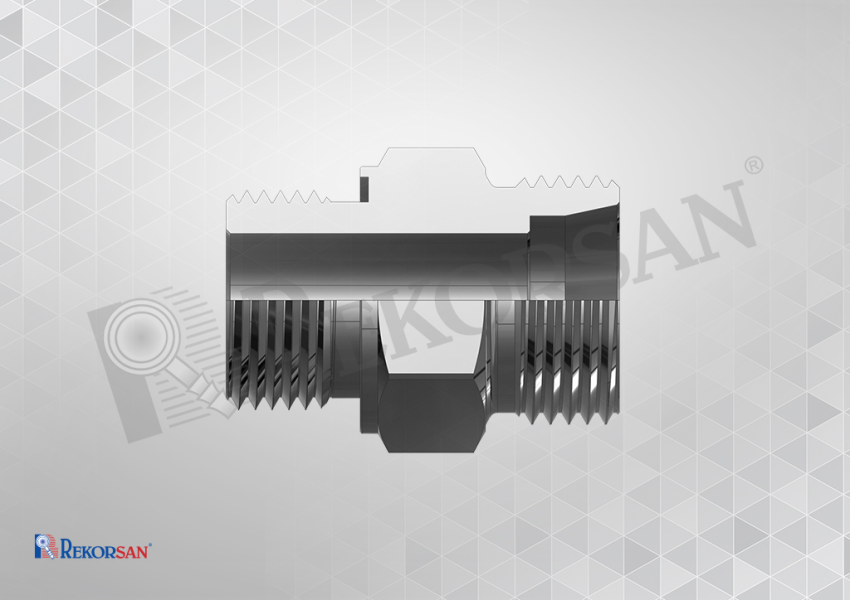

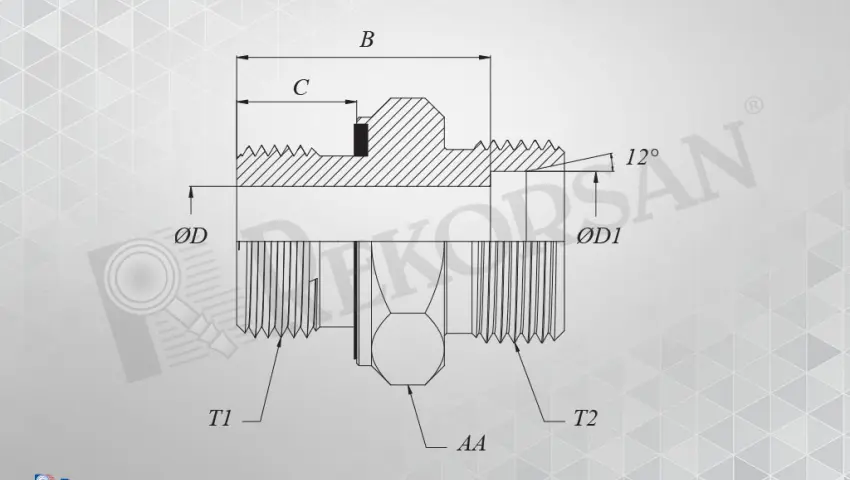

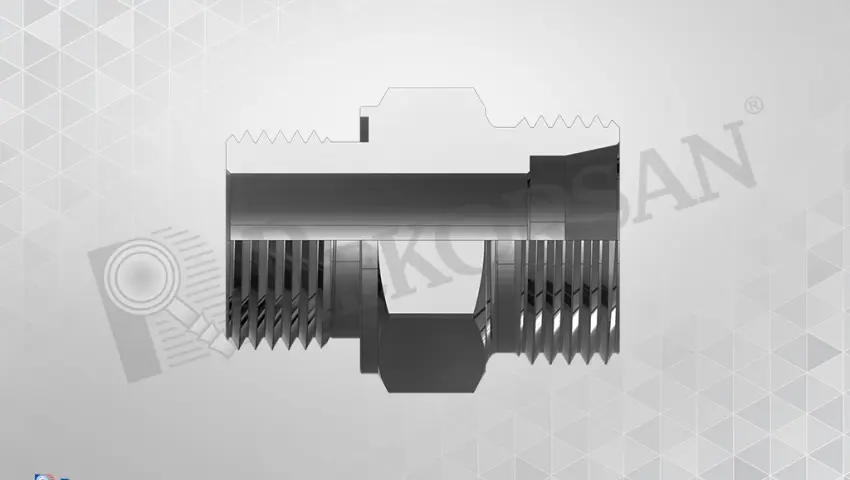

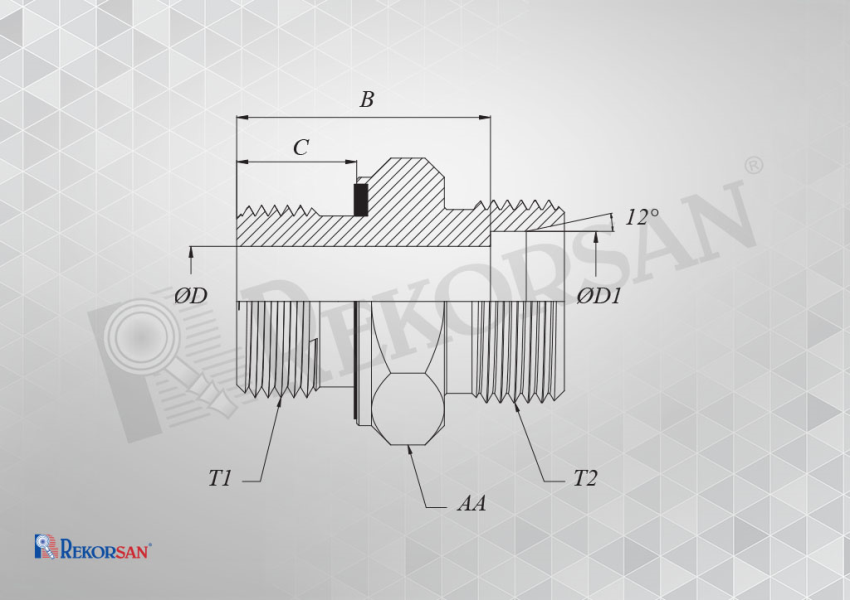

| BSP METRİK PFX NİPELLER BSP METRIC NIPPLES WITH ELASTOMERIC SEAL | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | ØD1 | AA |
| L TİPİ / L TYPE | |||||||
| RK-1006-RMNP-LL | R1/8-28 | M10x1 6LL | 16 | 8 | 4.5 | 6 | 14 |
| RK-1006-RMNP-L | R1/8-28 | M12x1,5 6L | 16.5 | 8 | 4 | 6 | 14 |
| RK-1008-RMNP-L | R1/8-28 | M14x1,5 8L | 17.5 | 8 | 4 | 8 | 14 |
| RK-1010-RMNP-L | R1/8-28 | M16x1,5 10L | 19.5 | 8 | 4 | 10 | 17 |
| RK-1306-RMNP-L | R1/4-19 | M12x1,5 6L | 22 | 12 | 4 | 6 | 19 |
| RK-1308-RMNP-L | R1/4-19 | M14x1,5 8L | 22 | 12 | 6 | 8 | 19 |
| RK-1310-RMNP-L | R1/4-19 | M16x1,5 10L | 23 | 12 | 6 | 10 | 19 |
| RK-1312-RMNP-L | R1/4-19 | M18x1,5 12L | 24 | 12 | 6 | 12 | 19 |
| RK-1706-RMNP-L | R3/8-19 | M12x1,5 6L | 23.5 | 12 | 4 | 6 | 22 |
| RK-1708-RMNP-L | R3/8-19 | M14x1,5 8L | 23.5 | 12 | 6 | 8 | 22 |
| RK-1710-RMNP-L | R3/8-19 | M16x1,5 10L | 24.5 | 12 | 8 | 10 | 22 |
| RK-1712-RMNP-L | R3/8-19 | M18x1,5 12L | 24.5 | 12 | 9 | 12 | 22 |
| RK-1715-RMNP-L | R3/8-19 | M22x1,5 15L | 25.5 | 12 | 9 | 15 | 24 |
| RK-2106-RMNP-L | R1/2-14 | M12x1,5 6L | 26 | 14 | 4 | 6 | 27 |
| RK-2108-RMNP-L | R1/2-14 | M14x1,5 8L | 26 | 14 | 6 | 8 | 27 |
| RK-2110-RMNP-L | R1/2-14 | M16x1,5 10L | 27 | 14 | 8 | 10 | 27 |
| RK-2112-RMNP-L | R1/2-14 | M18x1,5 12L | 27 | 14 | 10 | 12 | 27 |
| RK-2115-RMNP-L | R1/2-14 | M22x1,5 15L | 28 | 14 | 12 | 15 | 27 |
| RK-2118-RMNP-L | R1/2-14 | M26x1,5 18L | 28.5 | 14 | 13 | 18 | 27 |
| RK-2122-RMNP-L | R1/2-14 | M30x2 22L | 30.5 | 14 | 13 | 22 | 32 |
| RK-2612-RMNP-L | R3/4-14 | M18x1,5 12L | 30 | 16 | 10 | 12 | 32 |
| RK-2615-RMNP-L | R3/4-14 | M22x1,5 15L | 31 | 16 | 12 | 15 | 32 |
| RK-2618-RMNP-L | R3/4-14 | M26x1,5 18L | 30.5 | 16 | 15 | 18 | 32 |
| RK-2622-RMNP-L | R3/4-14 | M30x2 22L | 32.5 | 16 | 18 | 22 | 32 |
| RK-2628-RMNP-L | R3/4-14 | M36x2 28L | 33.5 | 16 | 18 | 28 | 41 |
| RK-3322-RMNP-L | R1"-11 | M30x2 22L | 35.5 | 18 | 19 | 22 | 41 |
| RK-3328-RMNP-L | R1"-11 | M36x2 28L | 35.5 | 18 | 23 | 28 | 41 |
| RK-3335-RMNP-L | R1"-11 | M45x2 35L | 35.5 | 18 | 23 | 35 | 46 |
| RK-4228-RMNP-L | R1"1/4-11 | M36x2 28L | 38.5 | 20 | 24 | 28 | 50 |
| RK-4235-RMNP-L | R1"1/4-11 | M45x2 35L | 37.5 | 20 | 30 | 35 | 50 |
| RK-4242-RMNP-L | R1"1/4-11 | M52x2 42L | 39 | 20 | 30 | 42 | 55 |
| RK-4835-RMNP-L | R1"1/2-11 | M45x2 35L | 41.5 | 22 | 30 | 35 | 55 |
| RK-4842-RMNP-L | R1"1/2-11 | M52x2 42L | 41 | 22 | 36 | 42 | 55 |
| S TİPİ / S TYPE | |||||||
| RK-1006-RMNP-S | R1/8-28 | M14x1,5 6S | 20.5 | 8 | 4 | 6 | 14 |
| RK-1008-RMNP-S | R1/8-28 | M16x1,5 8S | 21.5 | 8 | 4 | 8 | 17 |
| RK-1306-RMNP-S | R1/4-19 | M14x1,5 6S | 25 | 12 | 4 | 6 | 19 |
| RK-1308-RMNP-S | R1/4-19 | M16x1,5 8S | 27 | 12 | 5 | 8 | 19 |
| RK-1310-RMNP-S | R1/4-19 | M18x1,5 10S | 26.5 | 12 | 5 | 10 | 19 |
| RK-1312-RMNP-S | R1/4-19 | M20x1,5 12S | 28.5 | 12 | 6 | 12 | 22 |
| RK-1708-RMNP-S | R3/8-19 | M16x1,5 8S | 27.5 | 12 | 5 | 8 | 22 |
| RK-1710-RMNP-S | R3/8-19 | M18x1,5 10S | 27 | 12 | 7 | 10 | 22 |
| RK-1712-RMNP-S | R3/8-19 | M20x1,5 12S | 29 | 12 | 8 | 12 | 22 |
| RK-1716-RMNP-S | R3/8-19 | M24x1,5 16S | 30 | 12 | 8 | 16 | 27 |
| RK-1720-RMNP-S | R3/8-19 | M30x2 20S | 35 | 12 | 9 | 20 | 32 |
| RK-2108-RMNP-S | R1/2-14 | M16x1,5 8S | 32 | 14 | 5 | 8 | 27 |
| RK-2110-RMNP-S | R1/2-14 | M18x1,5 10S | 31.5 | 14 | 7 | 10 | 27 |
| RK-2112-RMNP-S | R1/2-14 | M20x1,5 12S | 31.5 | 14 | 8 | 12 | 27 |
| RK-2116-RMNP-S | R1/2-14 | M24x1,5 16S | 32.5 | 14 | 12 | 16 | 27 |
| RK-2120-RMNP-S | R1/2-14 | M30x2 20S | 34.5 | 14 | 12 | 20 | 32 |
| RK-2125-RMNP-S | R1/2-14 | M36x2 25S | 41 | 14 | 12 | 25 | 36 |
| RK-2612-RMNP-S | R3/4-14 | M20x1,5 12S | 36 | 16 | 8 | 12 | 32 |
| RK-2616-RMNP-S | R3/4-14 | M24x1,5 16S | 36.5 | 16 | 12 | 16 | 32 |
| RK-2620-RMNP-S | R3/4-14 | M30x2 20S | 36.5 | 16 | 16 | 20 | 32 |
| RK-2625-RMNP-S | R3/4-14 | M36x2 25S | 39 | 16 | 16 | 25 | 41 |
| RK-2630-RMNP-S | R3/4-14 | M42x2 30S | 39.5 | 16 | 16 | 30 | 46 |
| RK-3312-RMNP-S | R1"-11 | M20x1,5 12S | 39 | 18 | 8 | 12 | 41 |
| RK-3316-RMNP-S | R1"-11 | M24x1,5 16S | 38.5 | 18 | 12 | 16 | 41 |
| RK-3320-RMNP-S | R1"-11 | M30x2 20S | 40.5 | 18 | 16 | 20 | 41 |
| RK-3325-RMNP-S | R1"-11 | M36x2 25S | 41 | 18 | 20 | 25 | 41 |
| RK-3330-RMNP-S | R1"-11 | M42x2 30S | 41.5 | 18 | 20 | 30 | 46 |
| RK-3338-RMNP-S | R1"-11 | M52x2 38S | 41 | 18 | 20 | 38 | 55 |
| RK-4220-RMNP-S | R1"1/4-11 | M30x2 20S | 42.5 | 20 | 16 | 20 | 50 |
| RK-4225-RMNP-S | R1"1/4-11 | M36x2 25S | 43 | 20 | 20 | 25 | 50 |
| RK-4230-RMNP-S | R1"1/4-11 | M42x2 30S | 43.5 | 20 | 25 | 30 | 50 |
| RK-4238-RMNP-S | R1"1/4-11 | M52x2 38S | 46 | 20 | 25 | 38 | 55 |
| RK-4825-RMNP-S | R1"1/2-11 | M36x2 25S | 46 | 22 | 20 | 25 | 55 |
| RK-4830-RMNP-S | R1"1/2-11 | M42x2 30S | 48.5 | 22 | 25 | 30 | 55 |
| RK-4838-RMNP-S | R1"1/2-11 | M52x2 38S | 48 | 22 | 32 | 38 | 55 |
