BSP BOMBELİ - BSP BOMBELİ NİPEL
BSP BOMBELİ - BSP BOMBELİ NİPEL

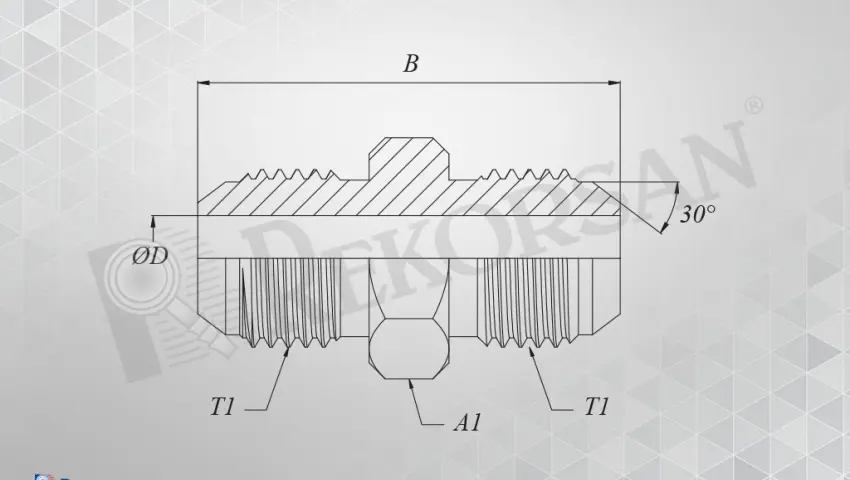

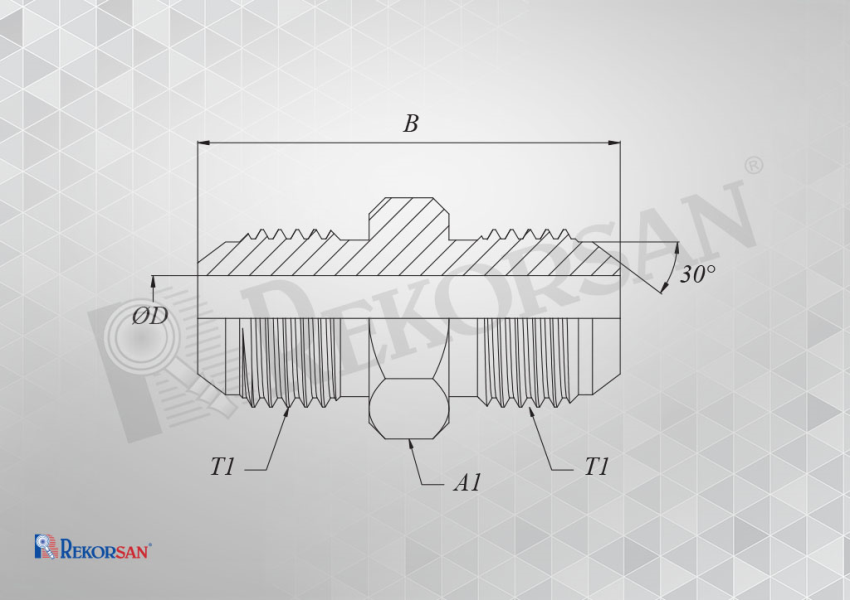

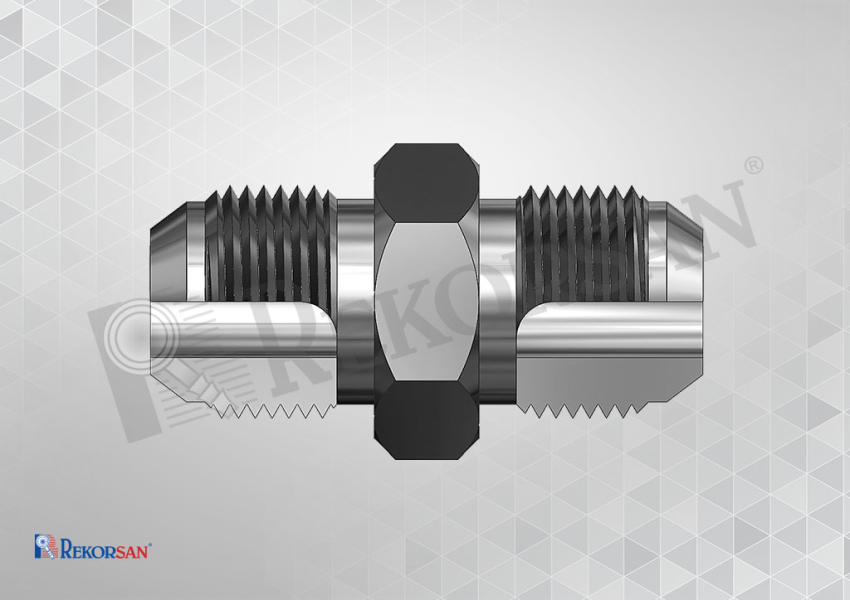

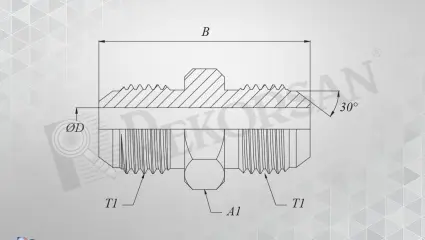

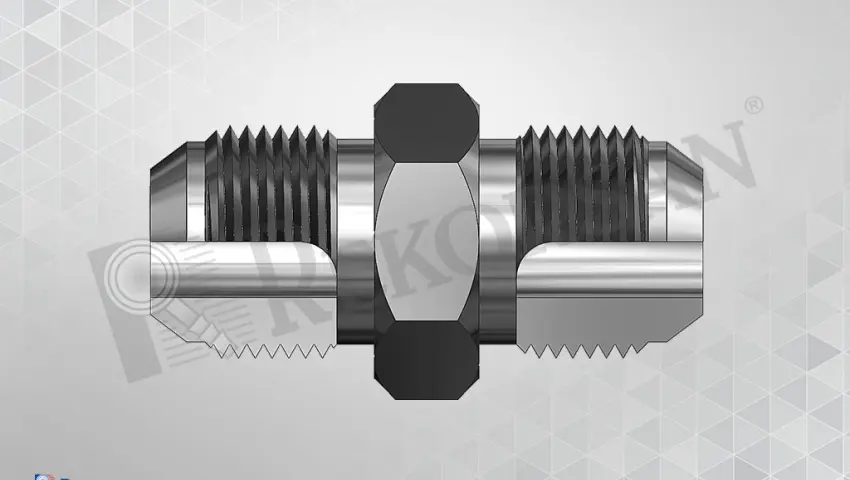

| BSP BOMBELİ - BSP BOMBELİ NİPEL BSP 30° FLARE STRAIGHT UNION CONNECTOR | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | ØD | AA |
| RK-1313-RBBN | R1/4-19 | R1/4-19 | 35 | 6.5 | 14 |
| RK-1717-RBBN | R3/8-19 | R3/8-19 | 40 | 8 | 17 |
| RK-2121-RBBN | R1/2-14 | R1/2-14 | 49.5 | 12 | 24 |
| RK-2626-RBBN | R3/4-14 | R3/4-14 | 55.5 | 15 | 27 |
| RK-3333-RBBN | R1"-11 | R1"-11 | 61 | 20 | 36 |
