BSP BLOK - UNF NİPEL
BSP BLOK - UNF NİPEL

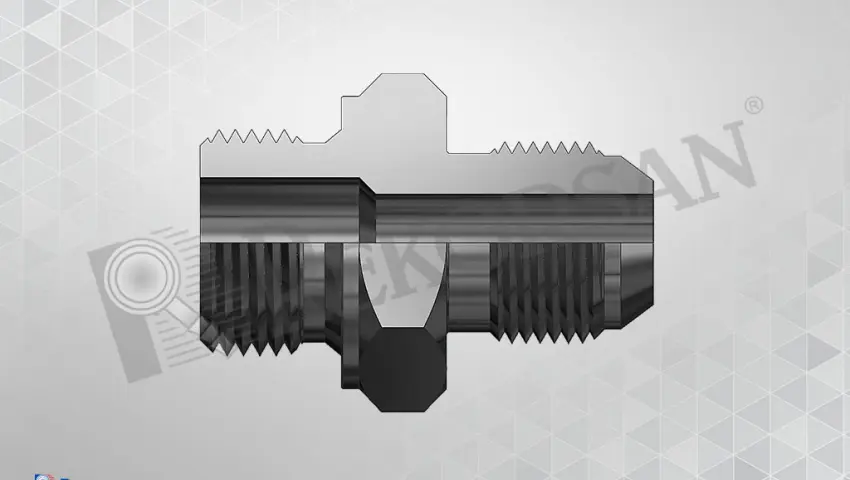

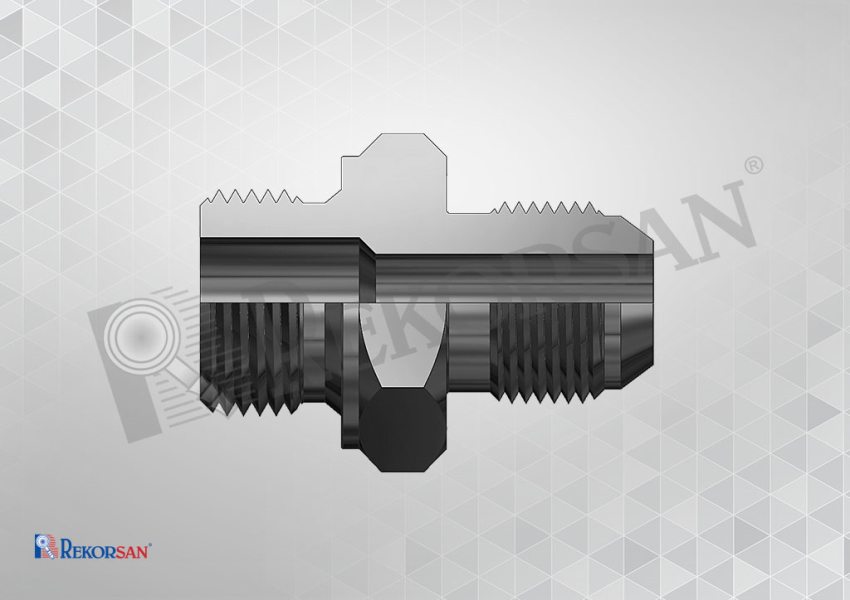

| BSP - UNF PUL SIKMALI NİPEL BSP METAL SEALİNG EDGE - UNF 37° FLARE NIPPLE | ||||||

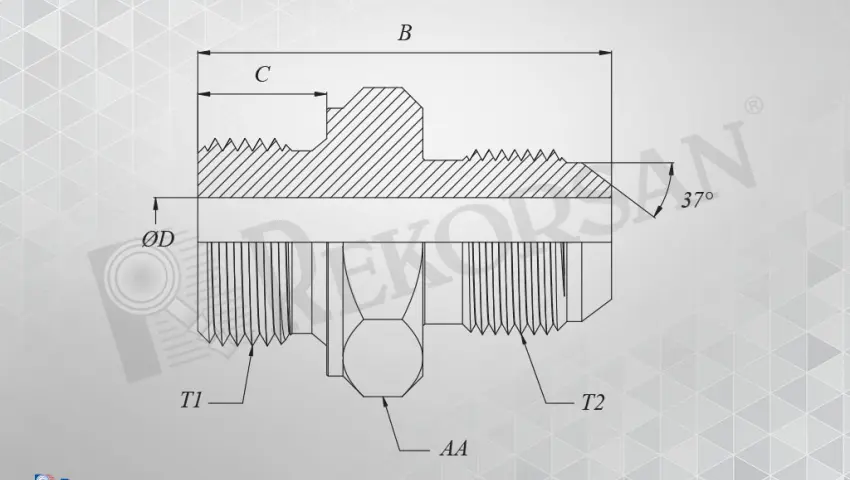

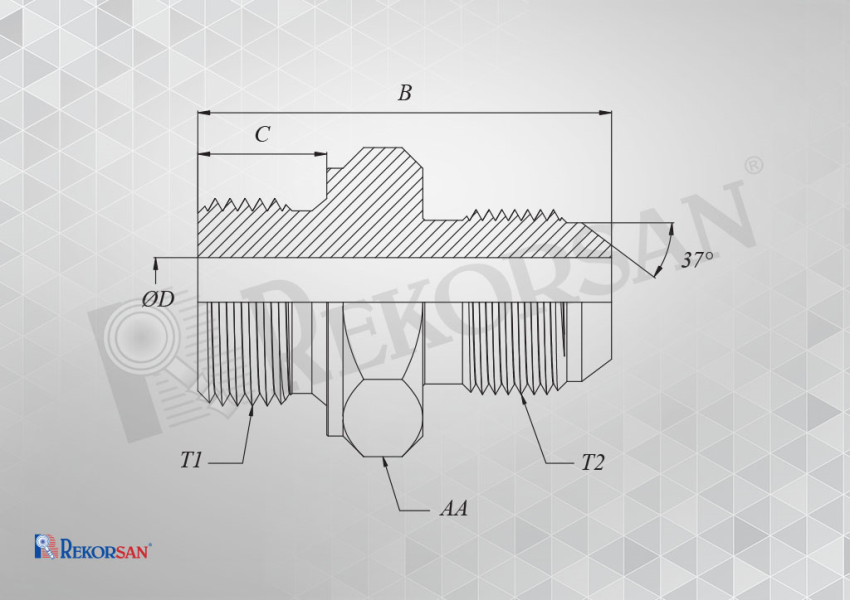

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | AA |
| RK-1011-RWN | R1/8-28 | 7/16-20 | 29.5 | 8 | 4 | 14 |
| RK-1311-RWN | R1/4-19 | 7/16-20 | 34 | 12 | 4.5 | 19 |
| RK-1312-RWN | R1/4-19 | 1/2-20 | 34 | 12 | 6 | 19 |
| RK-1314-RWN | R1/4-19 | 9/16-18 | 34.5 | 12 | 7 | 19 |
| RK-1316-RWN | R1/4-19 | 5/8-18 | 36.5 | 12 | 6 | 19 |
| RK-1319-RWN | R1/4-19 | 3/4-16 | 37 | 12 | 6 | 19 |
| RK-1711-RWN | R3/8-19 | 7/16-20 | 34.5 | 12 | 4.5 | 22 |
| RK-1712-RWN | R3/8-19 | 1/2-20 | 34.5 | 12 | 6 | 22 |
| RK-1714-RWN | R3/8-19 | 9/16-18 | 34.5 | 12 | 7.5 | 22 |
| RK-1716-RWN | R3/8-19 | 5/8-18 | 36.5 | 12 | 8 | 22 |
| RK-1719-RWN | R3/8-19 | 3/4-16 | 37.5 | 12 | 9 | 22 |
| RK-1722-RWN | R3/8-19 | 7/8-14 | 40 | 12 | 9 | 22 |
| RK-2112-RWN | R1/2-14 | 1/2-20 | 38 | 14 | 6 | 27 |
| RK-2114-RWN | R1/2-14 | 9/16-18 | 38 | 14 | 7.5 | 27 |
| RK-2116-RWN | R1/2-14 | 5/8-18 | 40 | 14 | 8 | 27 |
| RK-2119-RWN | R1/2-14 | 3/4-16 | 41 | 14 | 10 | 27 |
| RK-2122-RWN | R1/2-14 | 7/8-14 | 43.5 | 14 | 12 | 27 |
| RK-2127-RWN | R1/2-14 | 1"1/16-12 | 46.5 | 14 | 12 | 27 |
| RK-2619-RWN | R3/4-14 | 3/4-16 | 43 | 16 | 10 | 32 |
| RK-2622-RWN | R3/4-14 | 7/8-14 | 45.5 | 16 | 12.5 | 32 |
| RK-2627-RWN | R3/4-14 | 1"1/16-12 | 50 | 16 | 15.5 | 32 |
| RK-2633-RWN | R3/4-14 | 1"5/16-12 | 51 | 16 | 16 | 36 |
| RK-3327-RWN | R1"-11 | 1"1/16-12 | 53 | 18 | 15.5 | 41 |
| RK-3333-RWN | R1"-11 | 1"5/16-12 | 54 | 18 | 21.5 | 41 |
| RK-4233-RWN | R1"1/4-11 | 1"5/16-12 | 58 | 20 | 21.5 | 50 |
| RK-4241-RWN | R1"1/4-11 | 1"5/8-12 | 59 | 20 | 27.5 | 50 |
| RK-4847-RWN | R1"1/2-11 | 1"7/8-12 | 66 | 22 | 33.5 | 55 |
