BSP BLOK - BSP BOMBELİ NİPEL
BSP BLOK - BSP BOMBELİ NİPEL

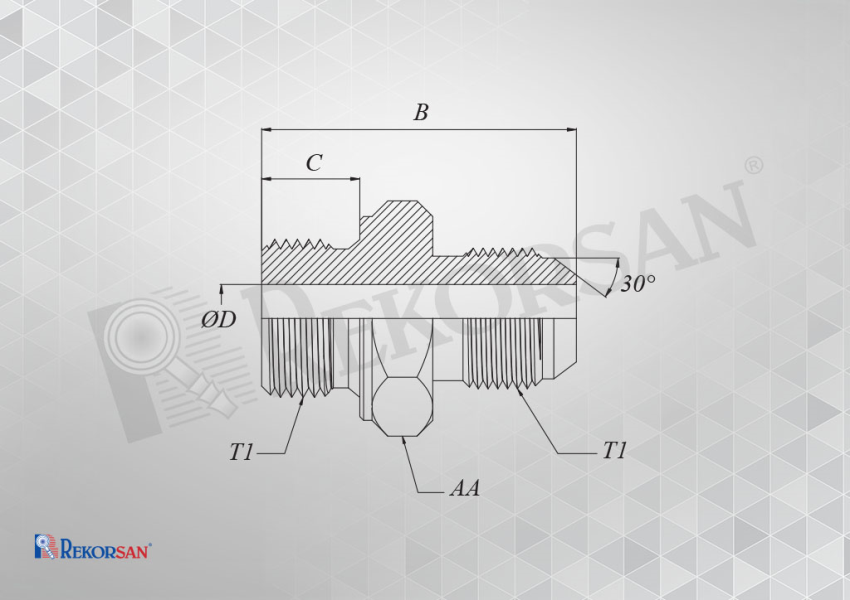

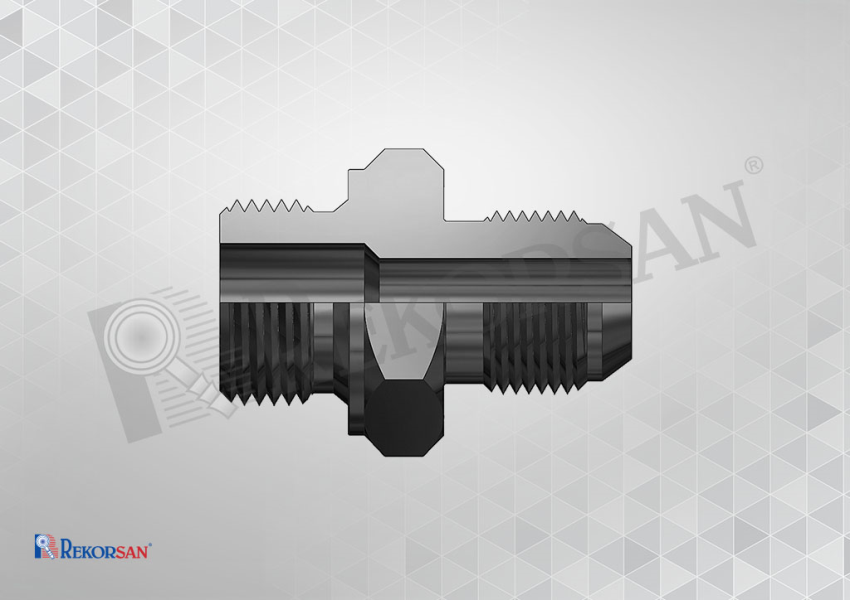

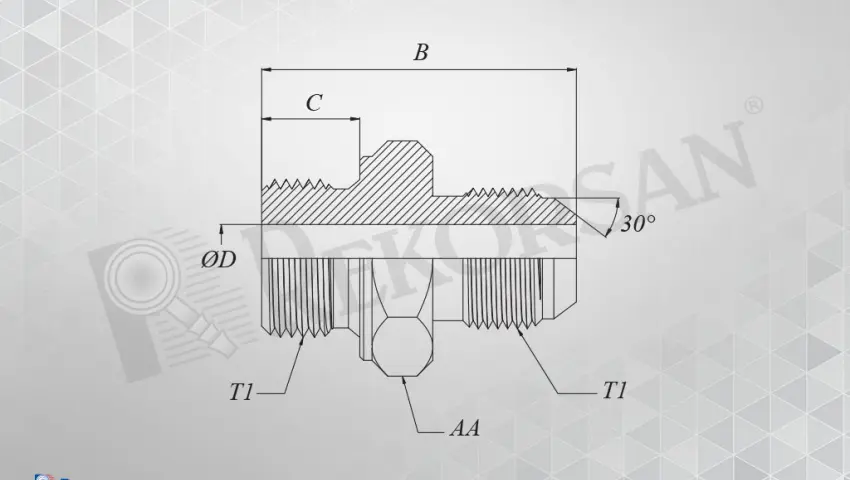

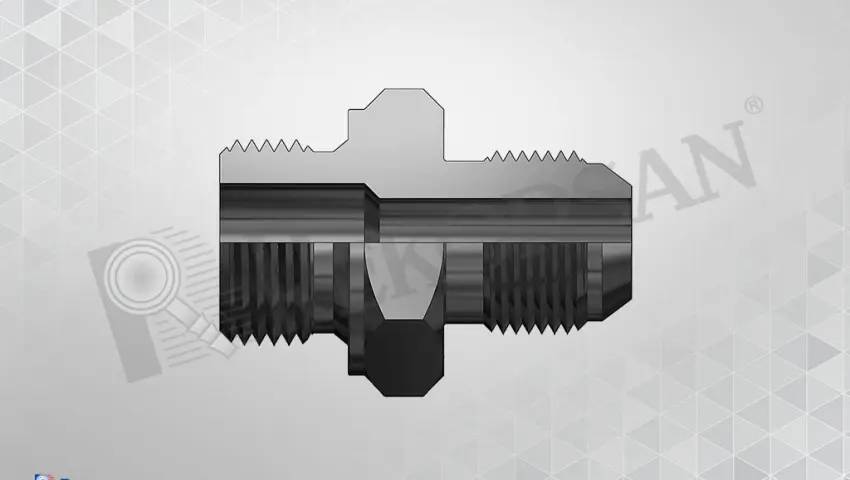

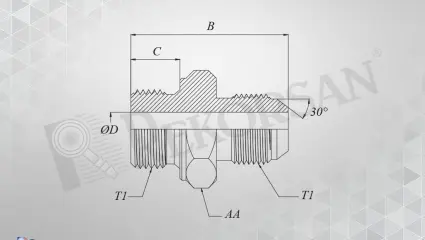

| BSP BLOK - BSP 30° BOMBELİ NİPEL BSP METAL SEALING EDGE - BSP 30° FLARE NIPPLE | ||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | ØD | AA |
| RK-1313-RRBN | R1/4-19 | R1/4-19 | 34 | 12 | 6.5 | 19 |
| RK-1717-RRBN | R3/8-19 | R3/8-19 | 36.5 | 12 | 8 | 22 |
| RK-2121-RRBN | R1/2-14 | R1/2-14 | 43.5 | 14 | 12 | 27 |
| RK-2626-RRBN | R3/4-14 | R3/4-14 | 49 | 16 | 15 | 32 |
| RK-3333-RRBN | R1"-11 | R1"-11 | 55.5 | 18 | 20 | 41 |
