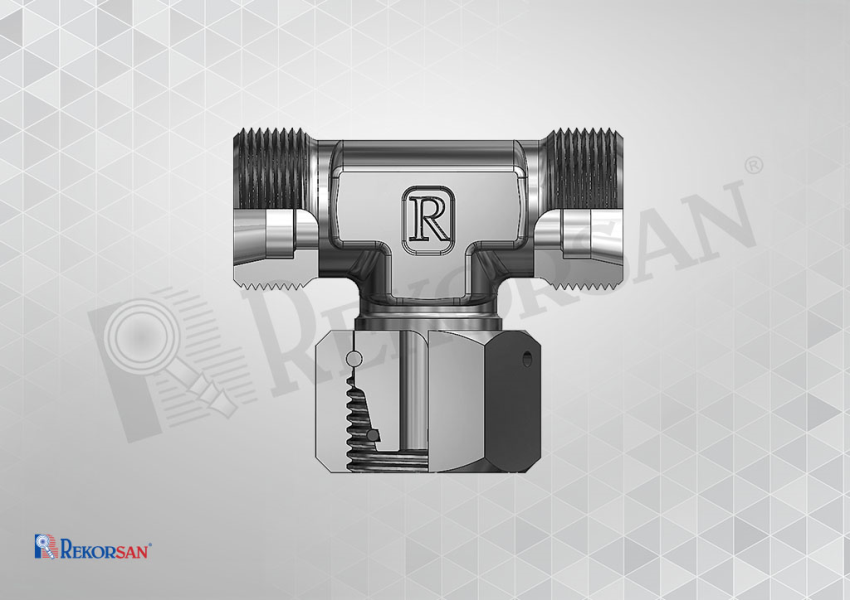

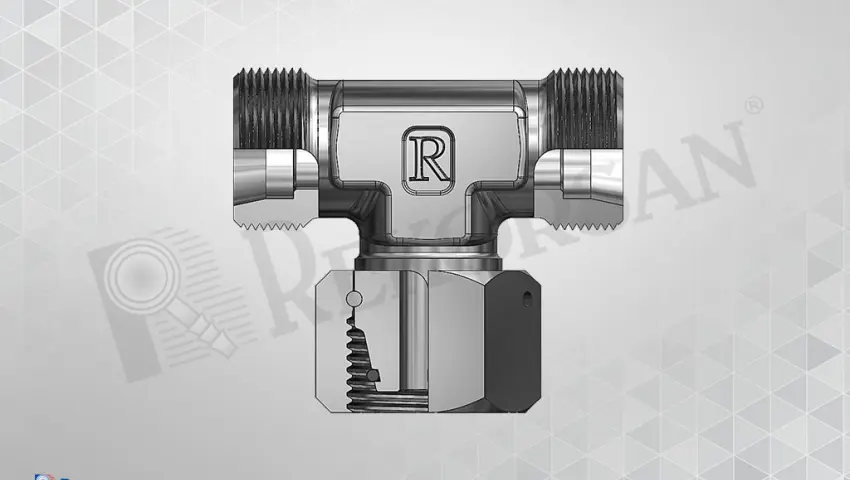

| METRİK ORTABACAK TE METRIC SWIVEL BRANCH TEE | |||||||

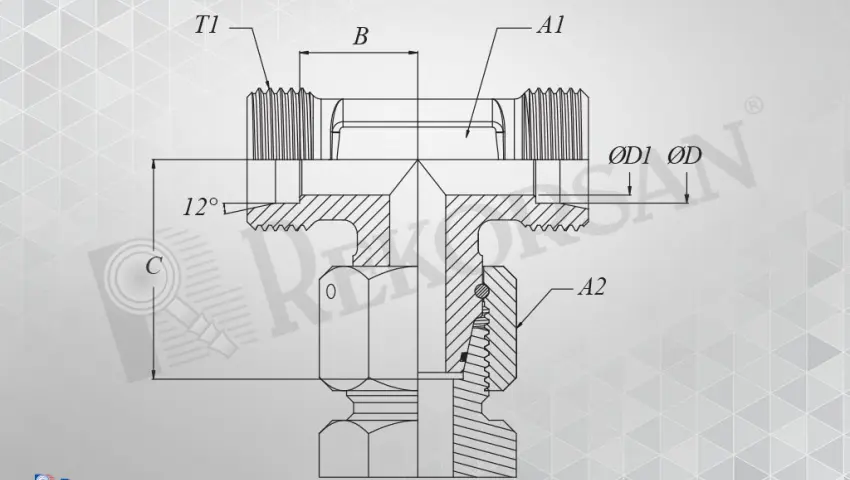

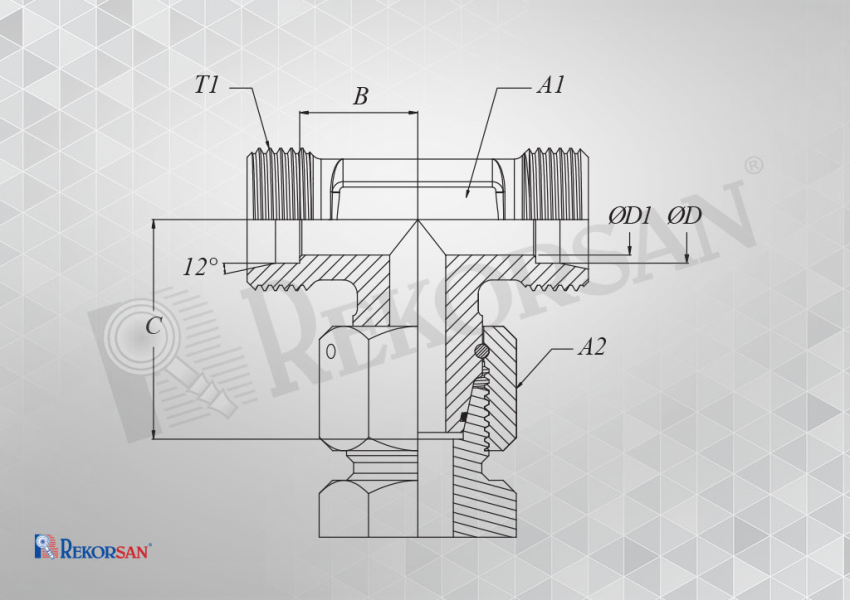

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD ØD | B | C | ØD1 | A1 | A2 |
| L TİPİ / L TYPE | |||||||
| RK-0606-MOT-L | M12x1,5 6L | 6 | 12 | 26 | 4 | 12 | 14 |
| RK-0808-MOT-L | M14x1,5 8L | 8 | 14 | 27.5 | 6 | 12 | 17 |
| RK-1010-MOT-L | M16x1,5 10L | 10 | 15 | 29 | 8 | 14 | 19 |
| RK-1212-MOT-L | M18x1,5 12L | 12 | 17 | 29.5 | 10 | 17 | 22 |
| RK-1515-MOT-L | M22x1,5 15L | 15 | 21 | 32.5 | 12 | 19 | 27 |
| RK-1818-MOT-L | M26x1,5 18L | 18 | 23.5 | 35.5 | 15 | 24 | 32 |
| RK-2222-MOT-L | M30x2 22L | 22 | 27.5 | 38.5 | 19 | 27 | 36 |
| RK-2828-MOT-L | M36x2 28L | 28 | 30.5 | 41.5 | 24 | 36 | 41 |
| RK-3535-MOT-L | M45x2 35L | 35 | 34.5 | 51 | 30 | 41 | 50 |
| RK-4242-MOT-L | M52x2 42L | 42 | 40 | 56 | 36 | 50 | 60 |
| S TİPİ / S TYPE | |||||||
| RK-0606-MOT-S | M14x1,5 6S | 6 | 16 | 27 | 4 | 12 | 17 |
| RK-0808-MOT-S | M16x1,5 8S | 8 | 15.5 | 27.5 | 5 | 14 | 19 |
| RK-1010-MOT-S | M18x1,5 10S | 10 | 17.5 | 30 | 7 | 17 | 22 |
| RK-1212-MOT-S | M20x1,5 12S | 12 | 21.5 | 31 | 8 | 17 | 24 |
| RK-1616-MOT-S | M24x1,5 16S | 16 | 24.5 | 36.5 | 12 | 24 | 30 |
| RK-2020-MOT-S | M30x2 20S | 20 | 26.5 | 44.5 | 16 | 27 | 36 |
| RK-2525-MOT-S | M36x2 25S | 25 | 30 | 50 | 20 | 36 | 46 |
| RK-3030-MOT-S | M42x2 30S | 30 | 35.5 | 55 | 25 | 41 | 50 |
| RK-3838-MOT-S | M52x2 38S | 38 | 41 | 63 | 32 | 50 | 60 |
