METRİK DİRSEKLER
METRİK DİRSEKLER

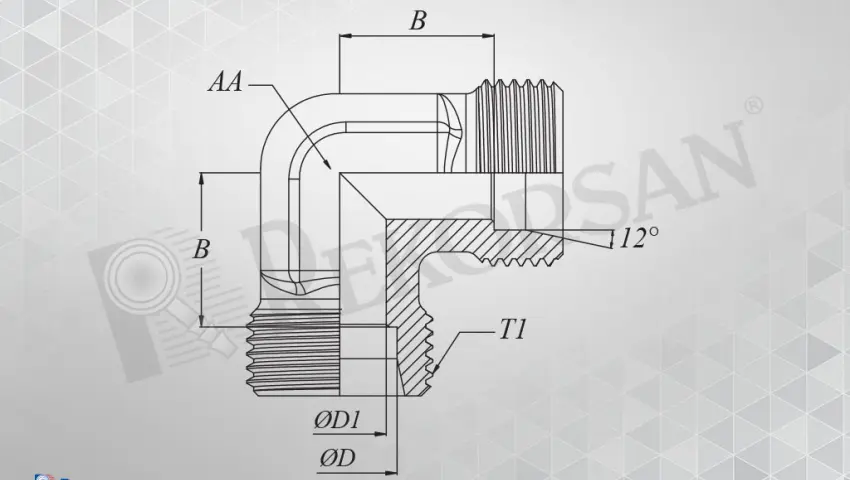

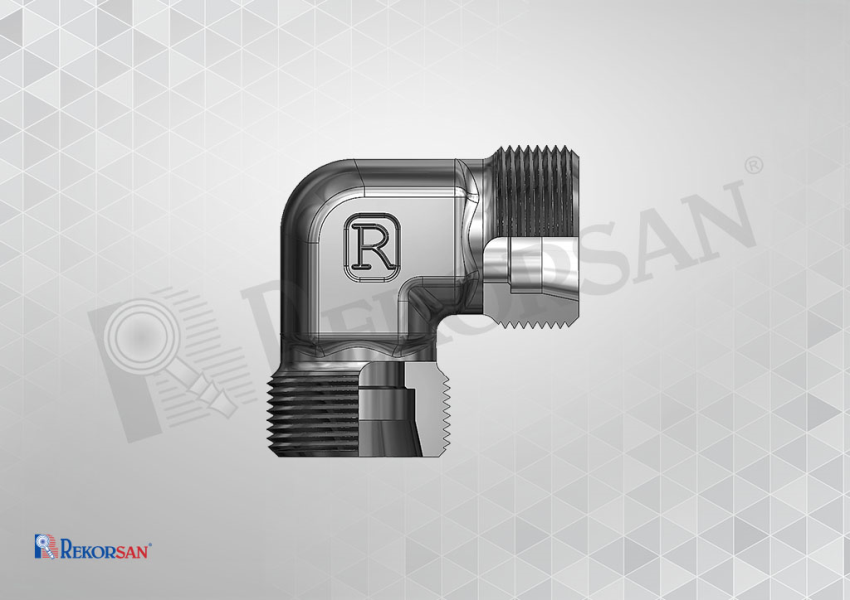

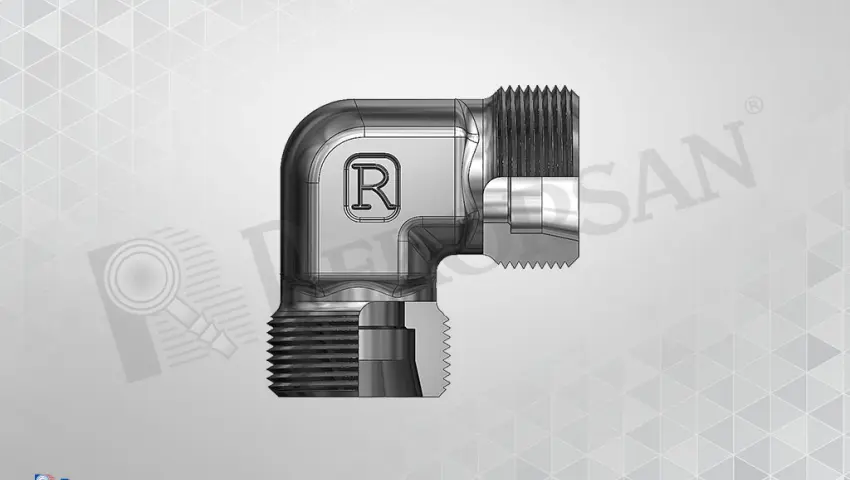

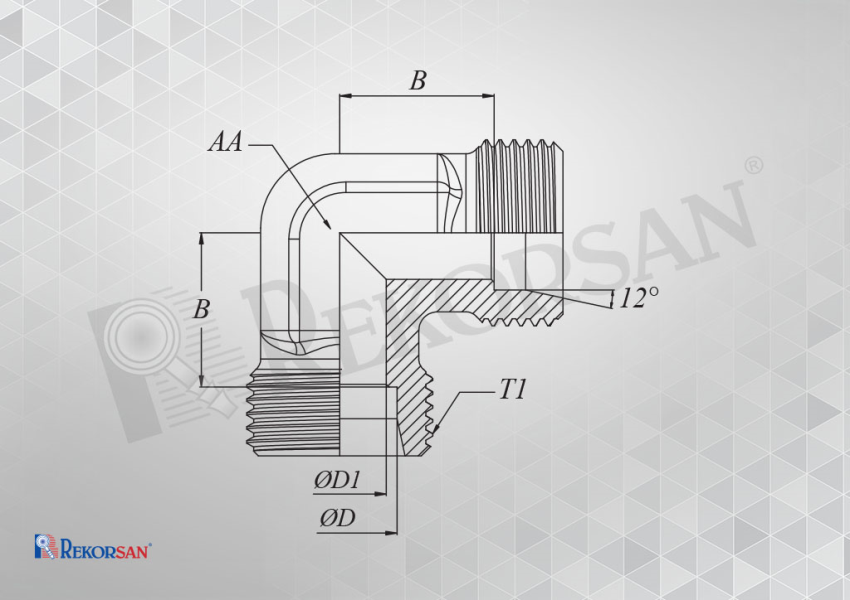

| METRİK DİRSEKLER METRIC ELBOWS | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | BORU ÇAPI TUBE OD ØD | B | ØD1 | AA |
| L TİPİ / L TYPE | |||||
| RK-0606-MD-L | M12x1,5 6L | 6 | 12 | 4 | 12 |
| RK-0808-MD-L | M14x1,5 8L | 8 | 14 | 6 | 12 |
| RK-1010-MD-L | M16x1,5 10L | 10 | 15 | 8 | 14 |
| RK-1212-MD-L | M18x1,5 12L | 12 | 17 | 10 | 17 |
| RK-1515-MD-L | M22x1,5 15L | 15 | 21 | 12 | 19 |
| RK-1818-MD-L | M26x1,5 18L | 18 | 23.5 | 15 | 24 |
| RK-2222-MD-L | M30x2 22L | 22 | 27.5 | 19 | 27 |
| RK-2828-MD-L | M36x2 28L | 28 | 30.5 | 24 | 36 |
| RK-3535-MD-L | M45x2 35L | 35 | 34.5 | 30 | 41 |
| RK-4242-MD-L | M52x2 42L | 42 | 40 | 36 | 50 |
| S TİPİ / S TYPE | |||||
| RK-0606-MD-S | M14x1,5 6S | 6 | 16 | 4 | 12 |
| RK-0808-MD-S | M16x1,5 8S | 8 | 15.5 | 5 | 14 |
| RK-1010-MD-S | M18x1,5 10S | 10 | 17.5 | 7 | 17 |
| RK-1212-MD-S | M20x1,5 12S | 12 | 21.5 | 8 | 17 |
| RK-1616-MD-S | M24x1,5 16S | 16 | 24.5 | 12 | 24 |
| RK-2020-MD-S | M30x2 20S | 20 | 26.5 | 16 | 27 |
| RK-2525-MD-S | M36x2 25S | 25 | 30 | 20 | 36 |
| RK-3030-MD-S | M42x2 30S | 30 | 35.5 | 25 | 41 |
| RK-3838-MD-S | M52x2 38S | 38 | 41 | 32 | 50 |
