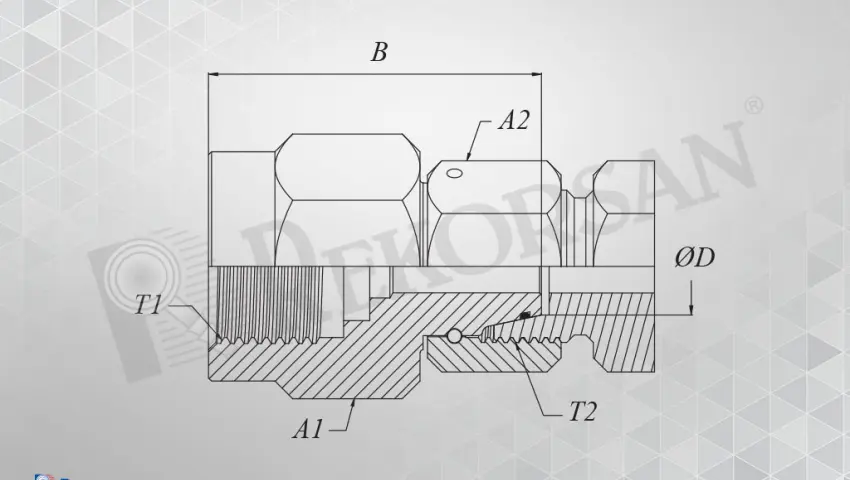

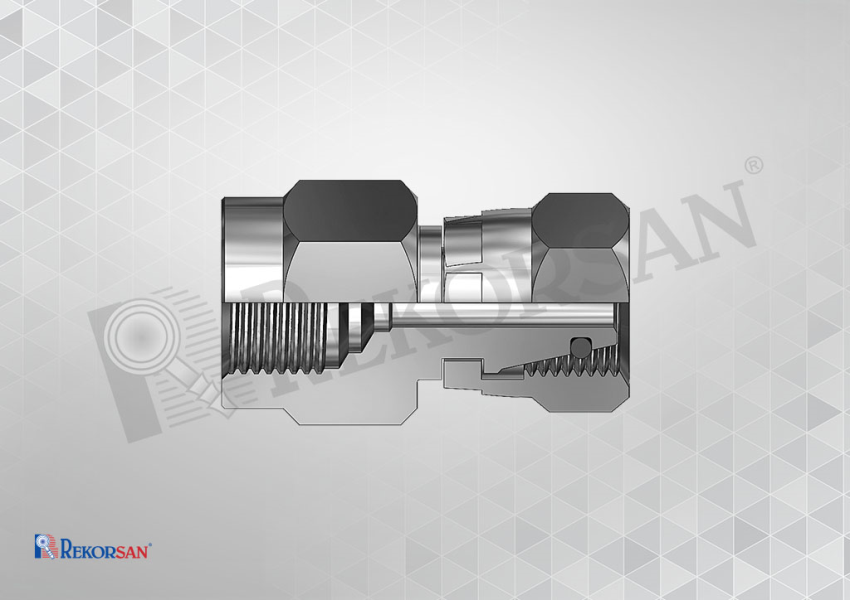

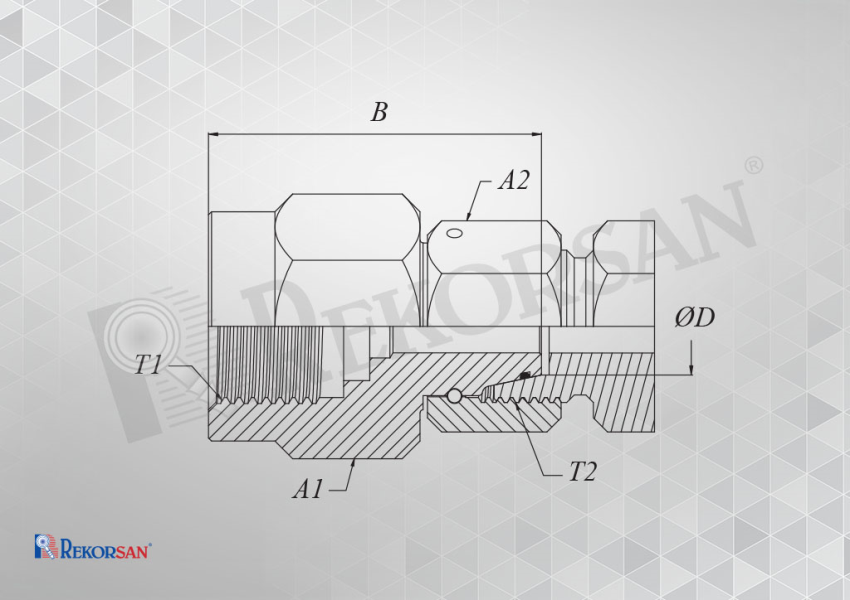

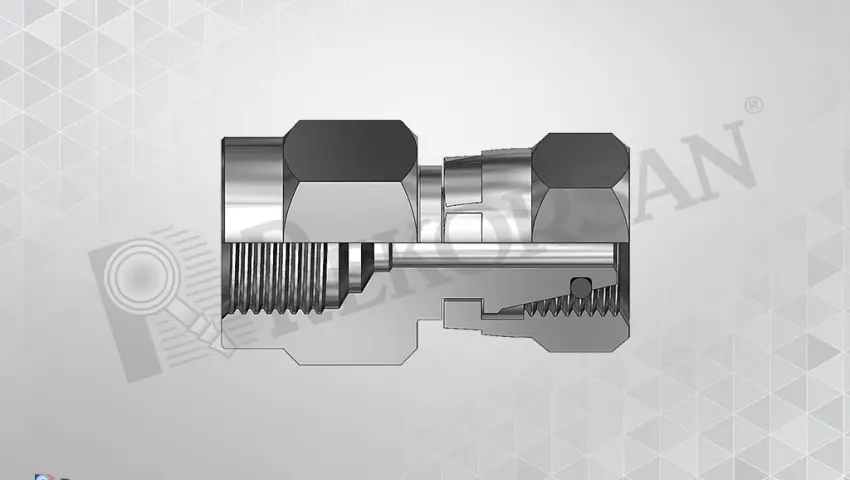

| BSP - METRİK MANOMETRE TERS RAKORLARI BSP FEMALE - METRIC SWIVEL PRESSURE GAUGE CONNECTOR |
||||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
DİŞ ÖLÇÜSÜ THREAD SIZE T2 |
B | ØD | A1 | A2 |
| L TİPİ / L TYPE | ||||||
| RK-1306-MTR-L | R1/4-19 | M12x1,5 6L | 32.5 | 6 | 19 | 17 |
| RK-1308-MTR-L | R1/4-19 | M14x1,5 8L | 33 | 8 | 19 | 17 |
| RK-1310-MTR-L | R1/4-19 | M16x1,5 10L | 33.5 | 10 | 19 | 19 |
| RK-1312-MTR-L | R1/4-19 | M18x1,5 12L | 34.5 | 12 | 19 | 22 |
| RK-2106-MTR-L | R1/2-14 | M12x1,5 6L | 41.5 | 6 | 27 | 17 |
| RK-2108-MTR-L | R1/2-14 | M14x1,5 8L | 42 | 8 | 27 | 17 |
| RK-2110-MTR-L | R1/2-14 | M16x1,5 10L | 42.5 | 10 | 27 | 19 |
| RK-2112-MTR-L | R1/2-14 | M18x1,5 12L | 43.5 | 12 | 27 | 22 |
| S TİPİ / S TYPE | ||||||
| RK-1306-MTR-S | R1/4-19 | M14x1,5 6S | 33 | 6 | 19 | 17 |
| RK-1308-MTR-S | R1/4-19 | M16x1,5 8S | 33.5 | 8 | 19 | 19 |
| RK-1310-MTR-S | R1/4-19 | M18x1,5 10S | 34.5 | 10 | 19 | 22 |
| RK-1312-MTR-S | R1/4-19 | M20x1,5 12S | 35.5 | 12 | 19 | 24 |
| RK-2106-MTR-S | R1/2-14 | M14x1,5 6S | 42 | 6 | 27 | 17 |
| RK-2108-MTR-S | R1/2-14 | M16x1,5 8S | 42.5 | 8 | 27 | 19 |
| RK-2110-MTR-S | R1/2-14 | M18x1,5 10S | 43.5 | 10 | 27 | 22 |
