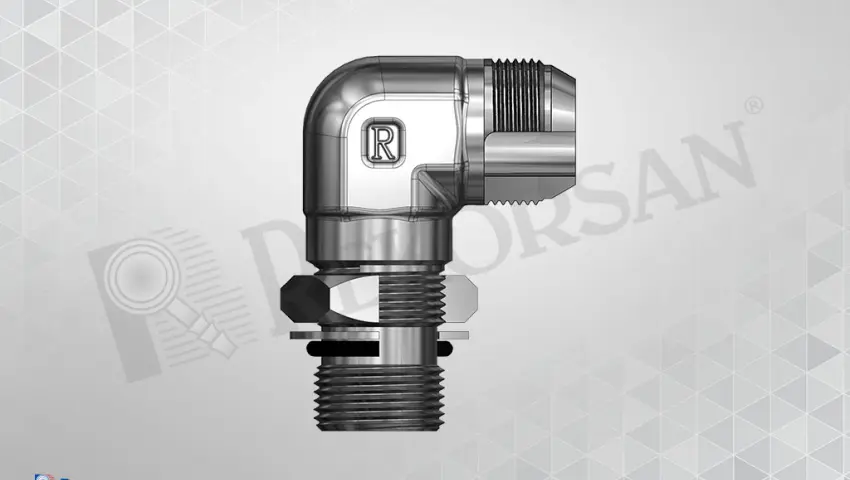

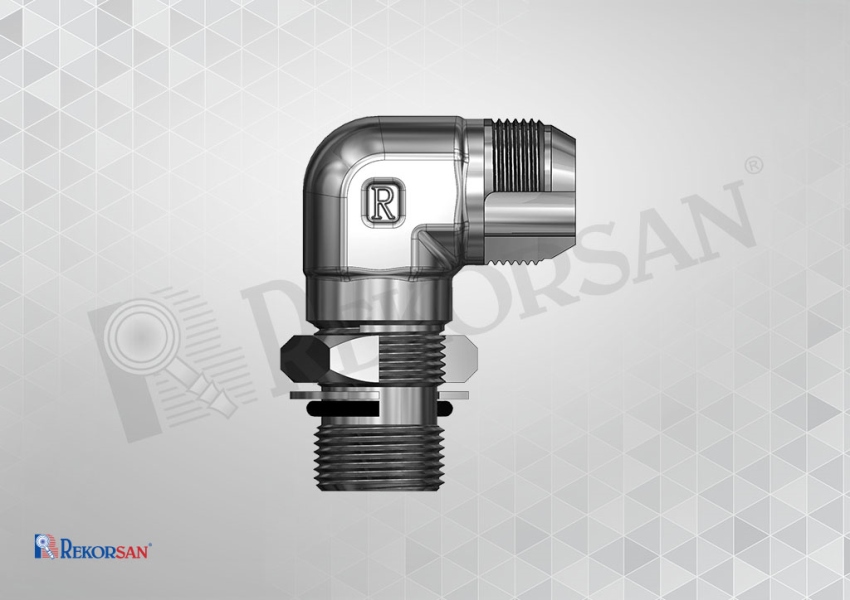

UNF - UNF 90° KONTRALI DİRSEK
UNF - UNF 90° KONTRALI DİRSEK

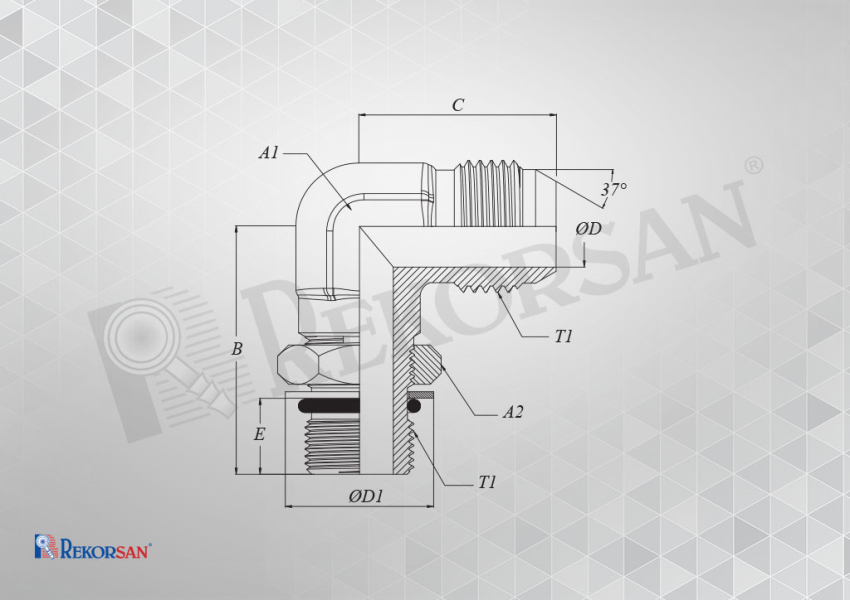

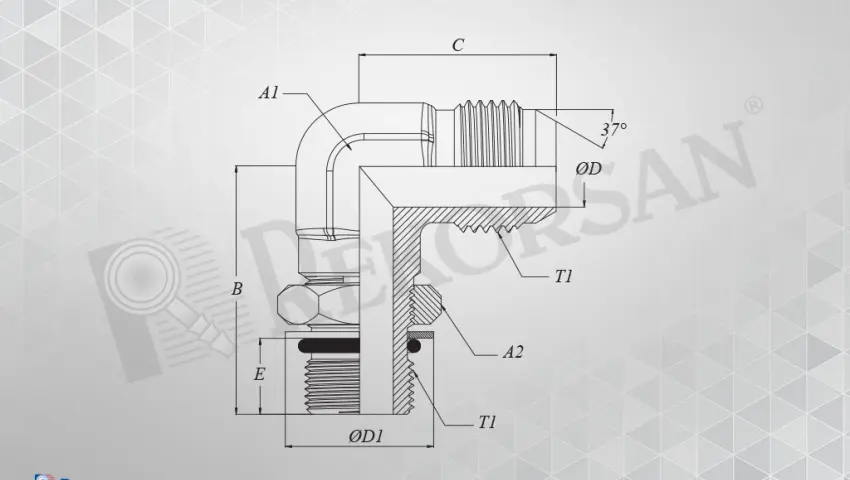

| UNF - UNF 90° KONTRALI DİRSEK UNF 37° FLARE - ADJUSTABLE UNF THREAD WITH O-RING | |||||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1111-WWKD | 7/16-20 | 7/16-20 | 26.5 | 11 | 21.5 | 4.5 | 15 | 12 | 14 |
| RK-1212-WWKD | 1/2-20 | 1/2-20 | 33.5 | 12 | 24.5 | 6 | 18 | 15 | 17 |
| RK-1414-WWKD | 9/16-18 | 9/16-18 | 33.5 | 12 | 24.5 | 7.5 | 20 | 15 | 19 |
| RK-1616-WWKD | 5/8-18 | 5/8-18 | 37 | 14 | 29.5 | 8 | 22 | 19 | 21 |
| RK-1919-WWKD | 3/4-16 | 3/4-16 | 37 | 14 | 29 | 10 | 25 | 19 | 24 |
| RK-2222-WWKD | 7/8-14 | 7/8-14 | 49 | 14.5 | 34 | 12.5 | 28 | 24 | 27 |
| RK-2727-WWKD | 1"1/16-12 | 1"1/16-12 | 49 | 16 | 38 | 15.5 | 33 | 30 | 32 |
| RK-3333-WWKD | 1"5/16-12 | 1"5/16-12 | 58 | 18 | 42 | 21.5 | 41 | 36 | 41 |
