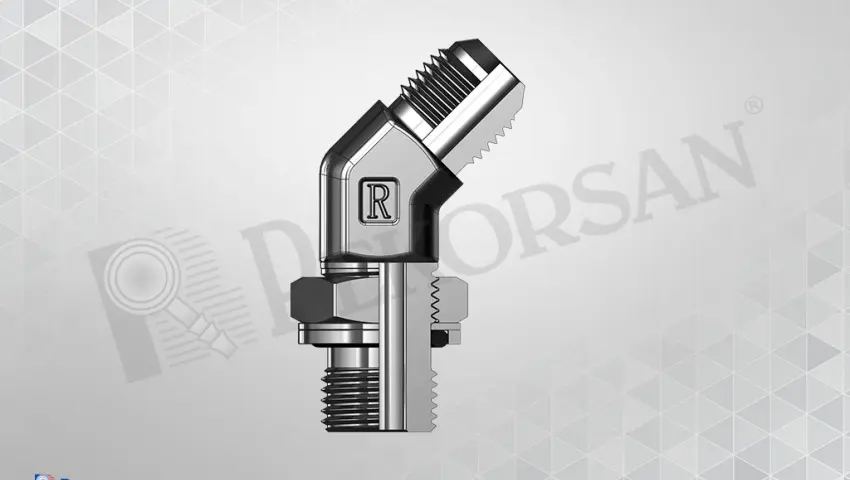

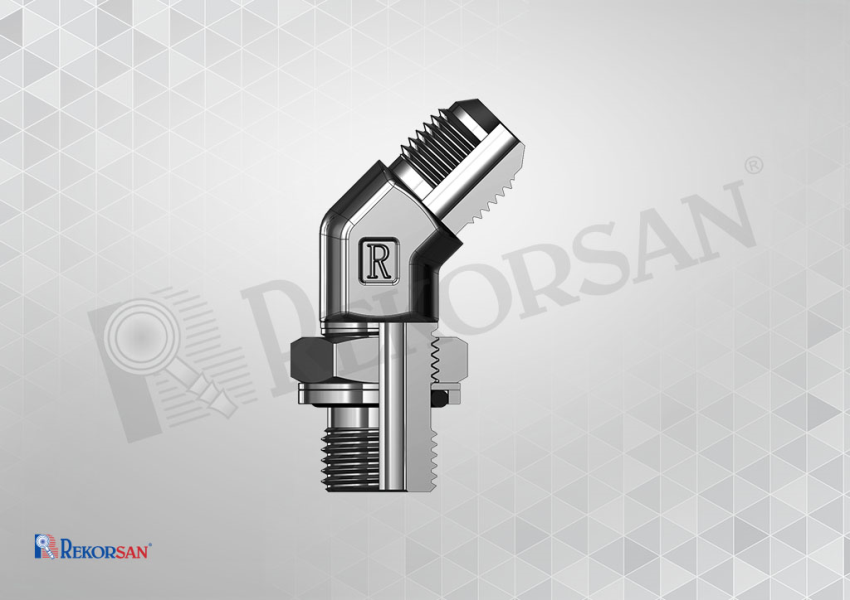

UNF - UNF 45° KONTRALI DİRSEK
UNF - UNF 45° KONTRALI DİRSEK

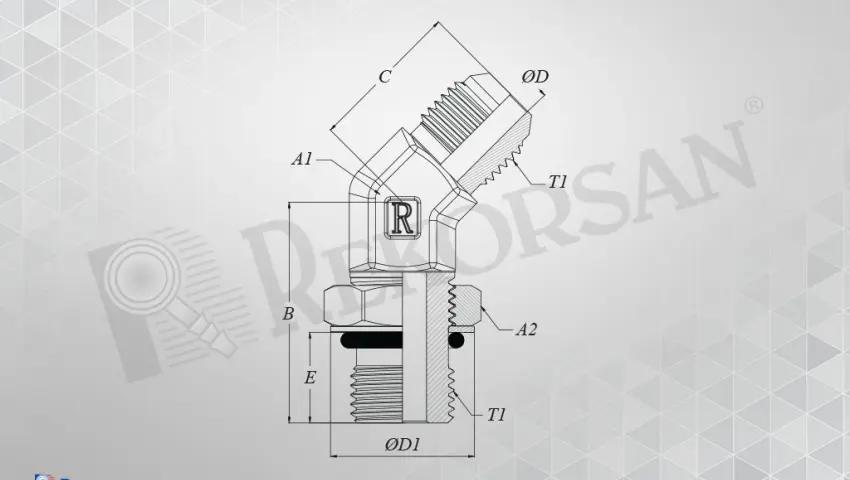

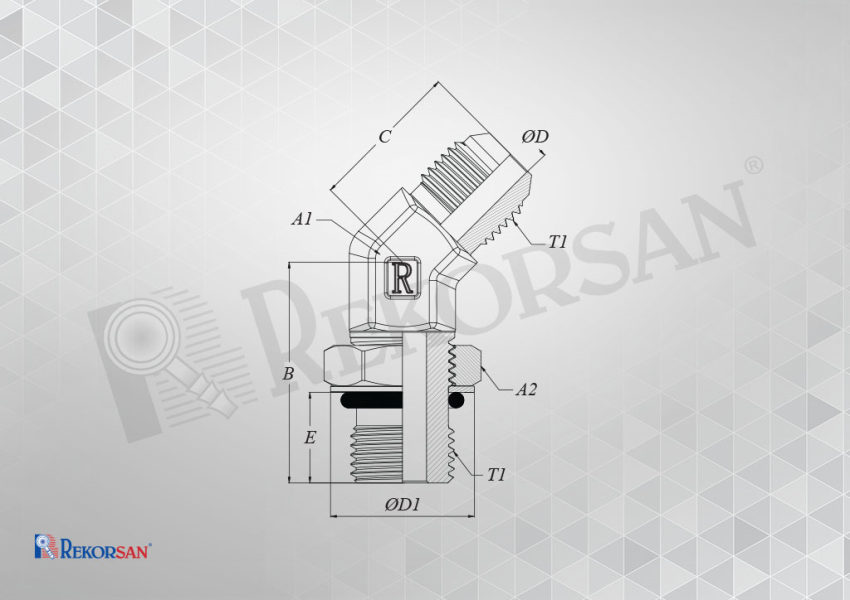

| UNF - UNF 45° KONTRALI DİRSEK UNF 37° FLARE - ADJUSTABLE UNF THREAD WITH O-RING | |||||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1111-WWKD45 | 7/16-20 | 7/16-20 | 26.5 | 11 | 18.5 | 4.5 | 15 | 12 | 14 |
| RK-1212-WWKD45 | 1/2-20 | 1/2-20 | 26.5 | 12 | 19.5 | 6 | 18 | 14 | 17 |
| RK-1414-WWKD45 | 9/16-18 | 9/16-18 | 29 | 12 | 21 | 7.5 | 20 | 14 | 19 |
| RK-1616-WWKD45 | 5/8-18 | 5/8-18 | 33 | 14 | 24 | 8 | 22 | 19 | 21 |
| RK-1919-WWKD45 | 3/4-16 | 3/4-16 | 33 | 14 | 25 | 10 | 25 | 19 | 24 |
| RK-2222-WWKD45 | 7/8-14 | 7/8-14 | 38.5 | 14.5 | 28 | 12.5 | 28 | 22 | 27 |
| RK-2727-WWKD45 | 1"1/16-12 | 1"1/16-12 | 44 | 16 | 32.5 | 15.5 | 33 | 27 | 32 |
| RK-3333-WWKD45 | 1"5/16-12 | 1"5/16-12 | 47 | 18 | 37.5 | 21.5 | 41 | 36 | 41 |
