UNF - ORFS 45° KONTRALI DİRSEK
UNF - ORFS 45° KONTRALI DİRSEK

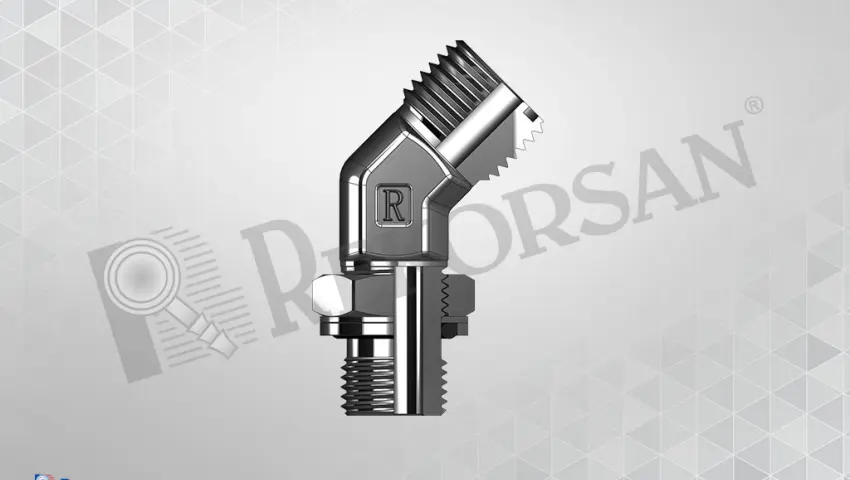

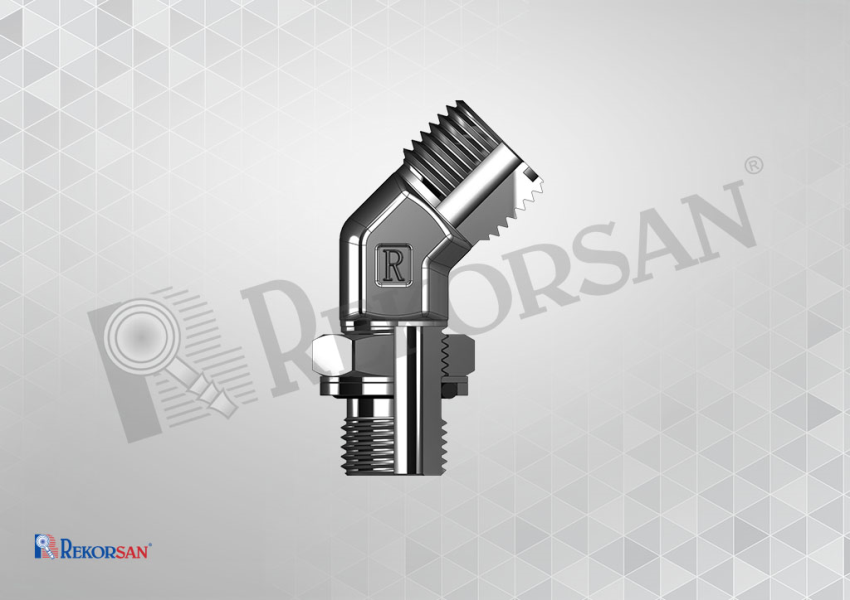

| UNF - ORFS 45° KONTRALI DİRSEK ORFS TUBE END - ADJUSTABLE UNF THREAD WITH O-RING | |||||||||

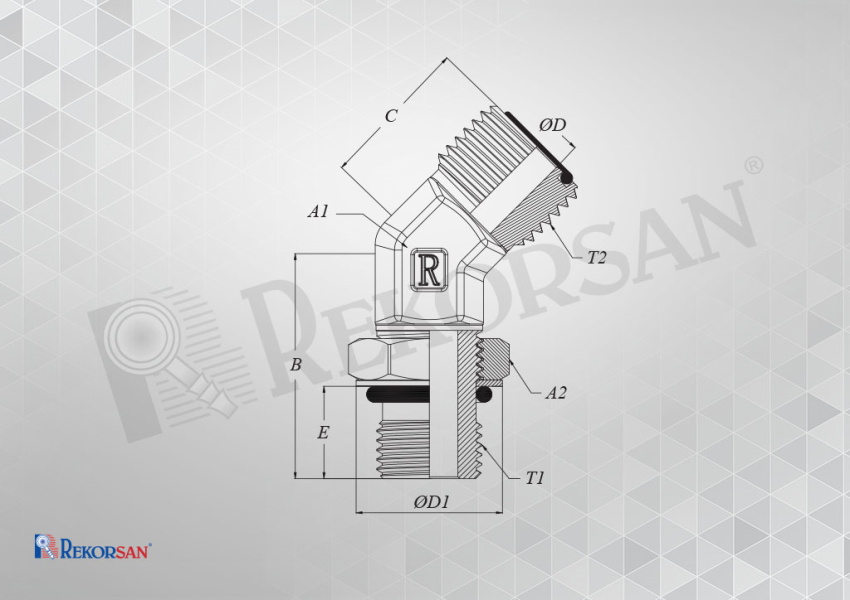

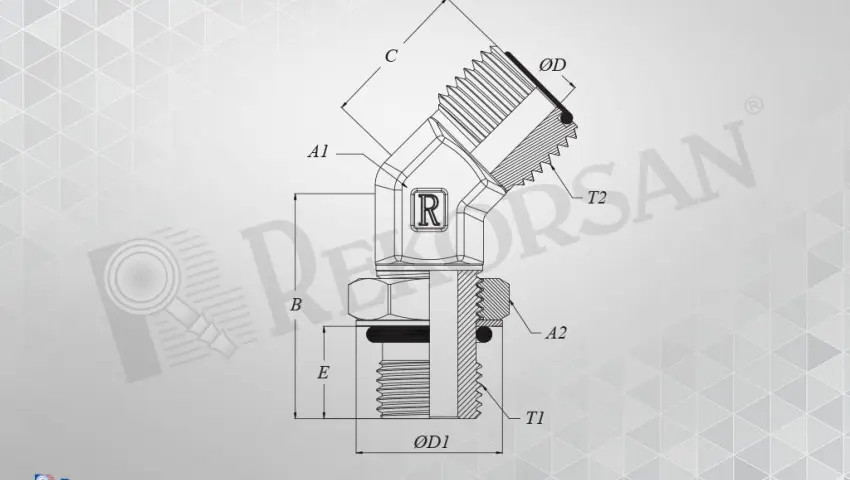

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 (UNF) | DİŞ ÖLÇÜSÜ THREAD SIZE T2 (ORFS) | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1414-WOKD45 | 9/16-18 | 9/16-18 | 33 | 12 | 21 | 5 | 20 | 19 | 19 |
| RK-1417-WOKD45 | 9/16-18 | 11/16-16 | 33 | 12 | 22 | 6 | 20 | 19 | 19 |
| RK-1421-WOKD45 | 9/16-18 | 13/16-16 | 33 | 12 | 24 | 9 | 20 | 19 | 19 |
| RK-1917-WOKD45 | 3/4-16 | 11/16-16 | 34 | 14 | 22 | 6 | 25 | 19 | 24 |
| RK-1921-WOKD45 | 3/4-16 | 13/16-16 | 34 | 14 | 24 | 9 | 25 | 19 | 24 |
| RK-1925-WOKD45 | 3/4-16 | 1"-14 | 44 | 14 | 24 | 12 | 25 | 27 | 24 |
| RK-2217-WOKD45 | 7/8-14 | 11/16-16 | 44 | 14.5 | 22 | 6 | 28 | 27 | 27 |
| RK-2221-WOKD45 | 7/8-14 | 13/16-16 | 44 | 14.5 | 24 | 9 | 28 | 27 | 27 |
| RK-2225-WOKD45 | 7/8-14 | 1"-14 | 44 | 14.5 | 24 | 12 | 28 | 27 | 27 |
| RK-2725-WOKD45 | 1"1/16-12 | 1"-14 | 44 | 16 | 24 | 12 | 33 | 27 | 32 |
| RK-2730-WOKD45 | 1"1/16-12 | 1"3/16-12 | 50 | 16 | 26 | 15 | 33 | 30 | 32 |
| RK-2737-WOKD45 | 1"1/16-12 | 1"7/16-12 | 52 | 16 | 30 | 19 | 33 | 36 | 32 |
| RK-3330-WOKD45 | 1"5/16-12 | 1"3/16-12 | 52 | 18 | 26 | 15 | 41 | 36 | 41 |
| RK-3337-WOKD45 | 1"5/16-12 | 1"7/16-12 | 52 | 18 | 30 | 19 | 41 | 36 | 41 |
