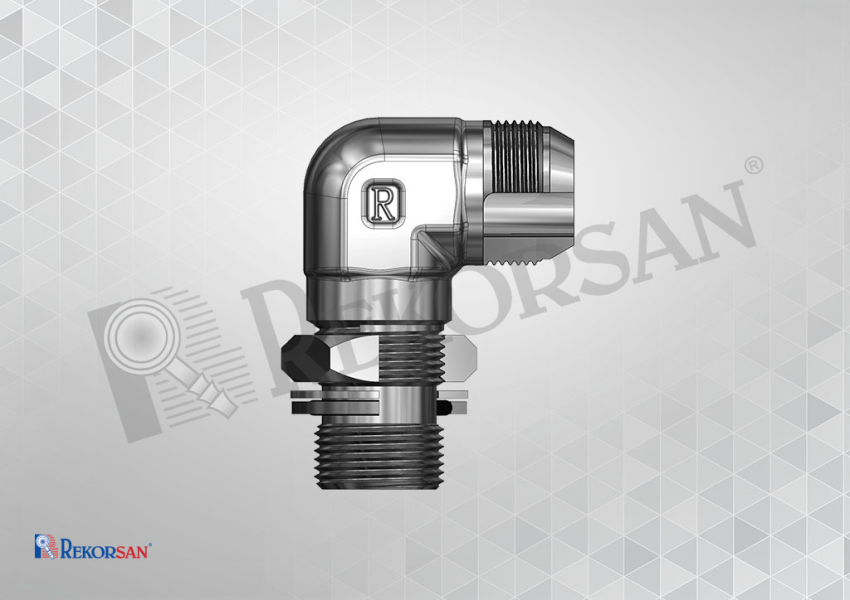

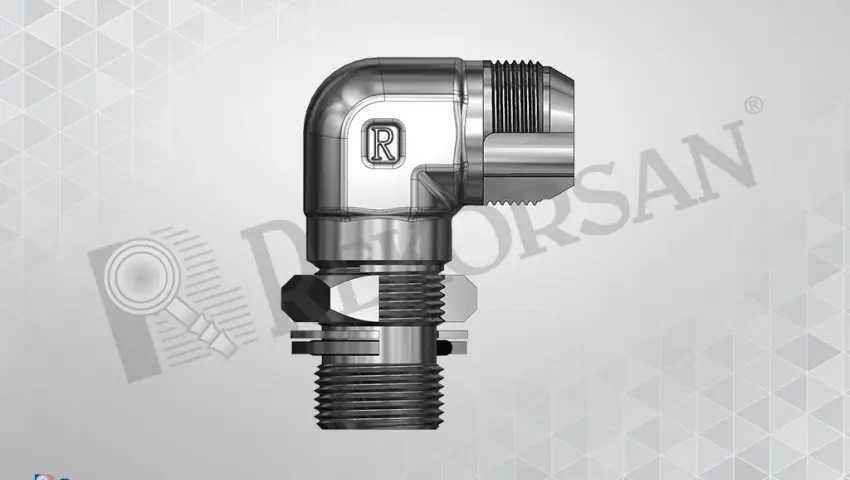

BSP - UNF 90° KONTRALI DİRSEK
BSP - UNF 90° KONTRALI DİRSEK
| BSP - UNF 90° KONTRALI DİRSEK UNF 37° FLARE - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING | |||||||||

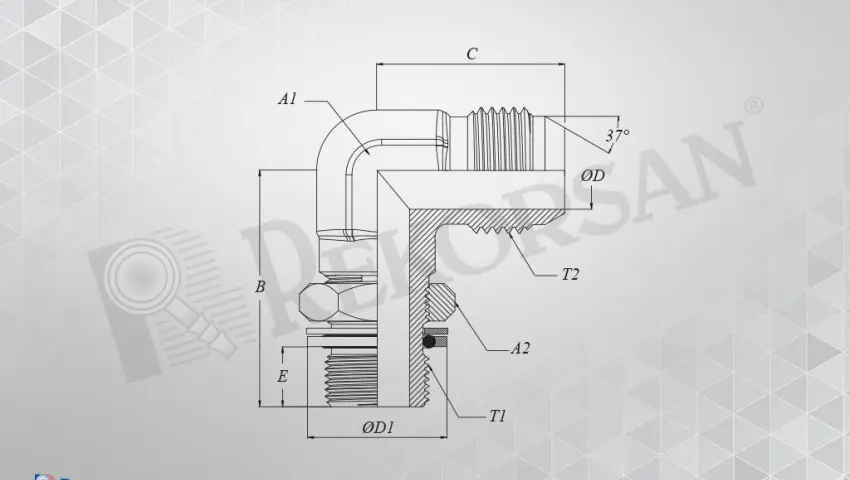

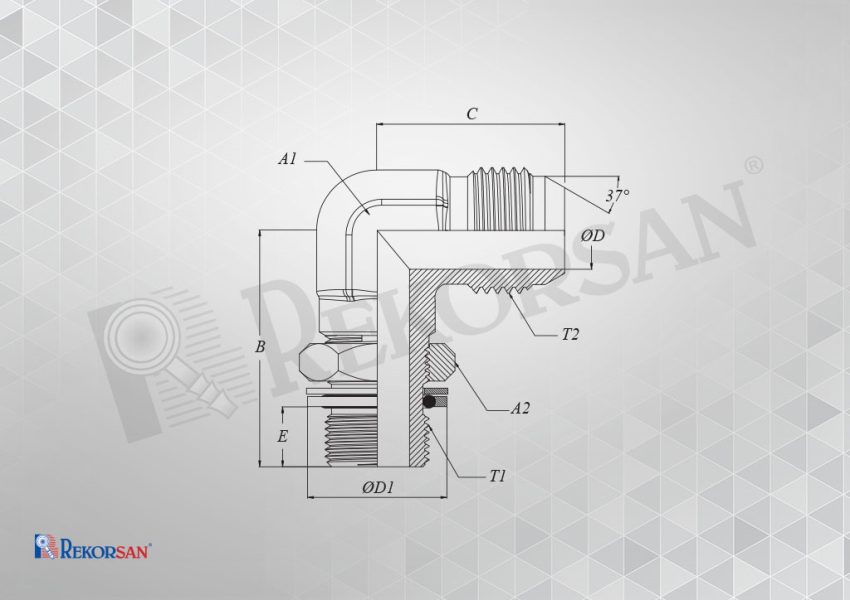

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1011-RWKD | R1/8-28 | 7/16-20 | 26.5 | 7 | 21.5 | 4.5 | 15 | 12 | 14 |
| RK-1311-RWKD | R1/4-19 | 7/16-20 | 34 | 10 | 25 | 4.5 | 20 | 15 | 19 |
| RK-1312-RWKD | R1/4-19 | 1/2-20 | 34 | 10 | 25 | 6 | 20 | 15 | 19 |
| RK-1314-RWKD | R1/4-19 | 9/16-18 | 34 | 10 | 24.5 | 7.5 | 20 | 15 | 19 |
| RK-1714-RWKD | R3/8-19 | 9/16-18 | 37 | 12 | 30 | 7.5 | 23 | 19 | 22 |
| RK-1716-RWKD | R3/8-19 | 5/8-18 | 37 | 12 | 29 | 8 | 23 | 19 | 22 |
| RK-1719-RWKD | R3/8-19 | 3/4-16 | 37 | 12 | 29 | 10 | 23 | 19 | 22 |
| RK-2114-RWKD | R1/2-14 | 9/16-18 | 49 | 12.5 | 34 | 7.5 | 28 | 24 | 27 |
| RK-2116-RWKD | R1/2-14 | 5/8-18 | 49 | 12.5 | 34 | 8 | 28 | 24 | 27 |
| RK-2119-RWKD | R1/2-14 | 3/4-16 | 49 | 12.5 | 34 | 10 | 28 | 24 | 27 |
| RK-2122-RWKD | R1/2-14 | 7/8-14 | 49 | 12.5 | 33 | 12.5 | 28 | 24 | 27 |
| RK-2127-RWKD | R1/2-14 | 1"1/16-12 | 50 | 12.5 | 38 | 15.5 | 28 | 30 | 27 |
| RK-2622-RWKD | R3/4-14 | 7/8-14 | 49 | 14 | 38.5 | 12.5 | 33 | 30 | 32 |
| RK-2627-RWKD | R3/4-14 | 1"1/16-12 | 49 | 14 | 38.5 | 15.5 | 33 | 30 | 32 |
| RK-3327-RWKD | R1"-11 | 1"1/16-12 | 58 | 16 | 42 | 15.5 | 41 | 36 | 41 |
| RK-3333-RWKD | R1"-11 | 1"5/16-12 | 58 | 16 | 42.5 | 21.5 | 41 | 36 | 41 |
