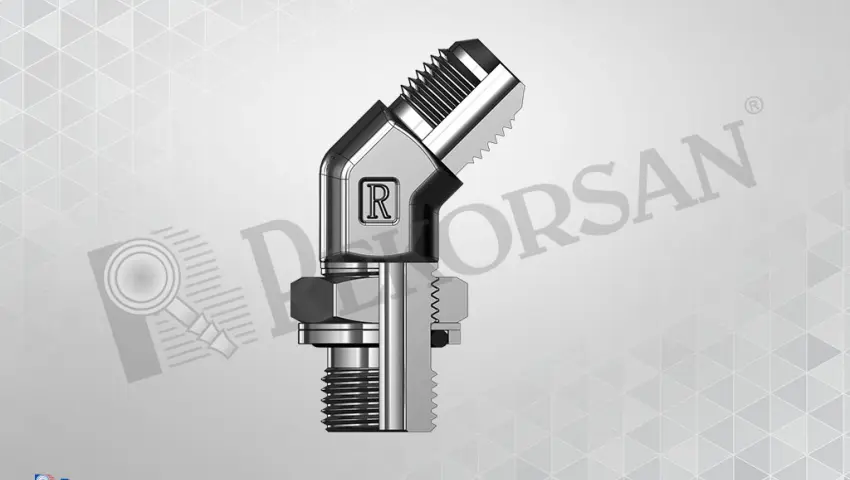

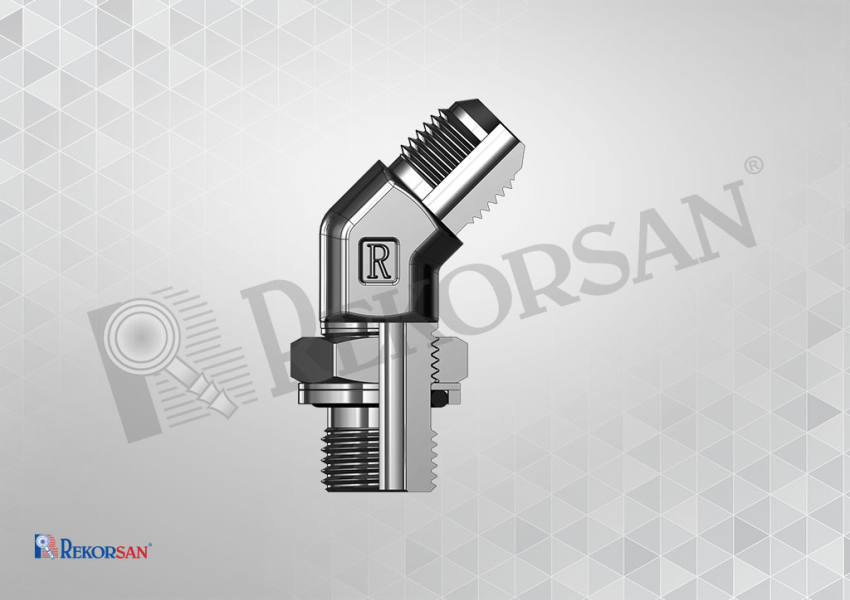

BSP - UNF 45° KONTRALI DİRSEK
BSP - UNF 45° KONTRALI DİRSEK
| BSP - UNF 45° KONTRALI DİRSEK UNF 37° FLARE - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING | |||||||||

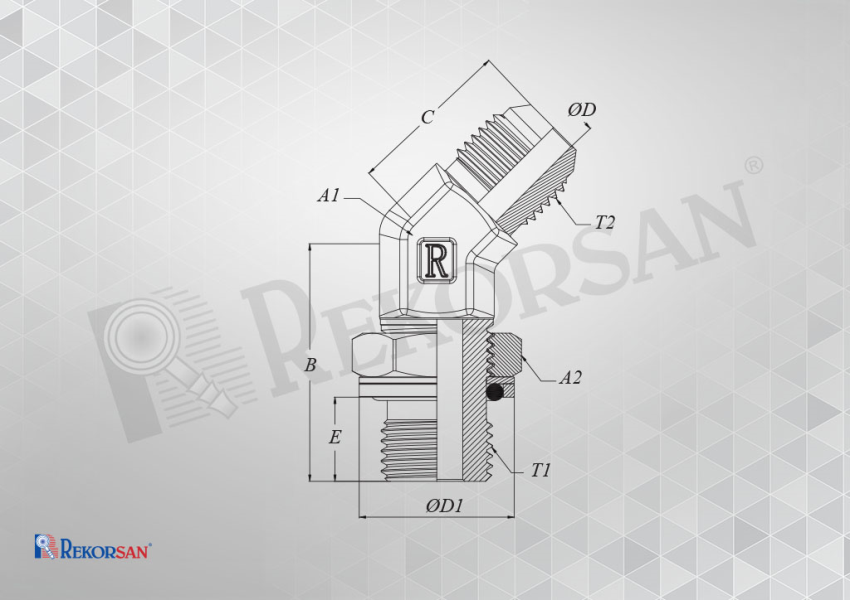

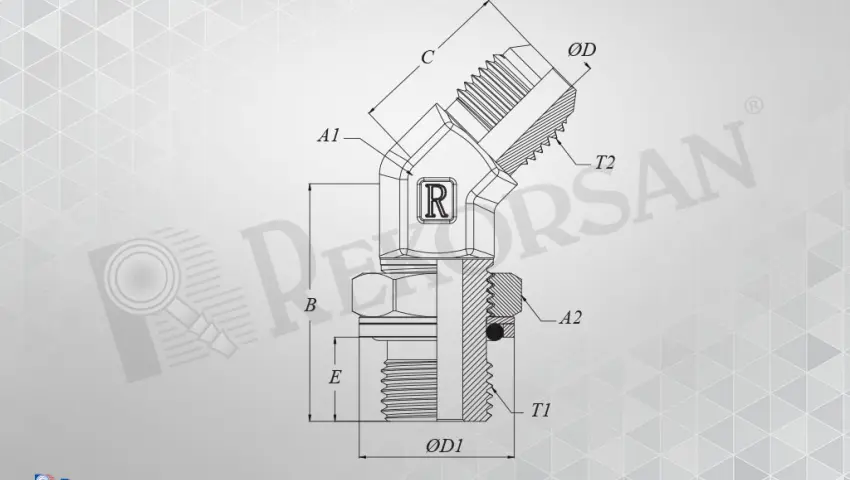

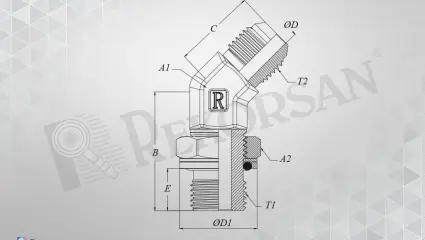

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1011-RWKD45 | R1/8-28 | 7/16-20 | 26.5 | 7 | 18.5 | 4.5 | 15 | 12 | 14 |
| RK-1311-RWKD45 | R1/4-19 | 7/16-20 | 26.5 | 10 | 20 | 4.5 | 20 | 14 | 19 |
| RK-1312-RWKD45 | R1/4-19 | 1/2-20 | 26.5 | 10 | 20 | 6 | 20 | 14 | 19 |
| RK-1314-RWKD45 | R1/4-19 | 9/16-18 | 29 | 10 | 21 | 7.5 | 20 | 14 | 19 |
| RK-1714-RWKD45 | R3/8-19 | 9/16-18 | 33 | 12 | 22 | 7.5 | 23 | 19 | 22 |
| RK-1716-RWKD45 | R3/8-19 | 5/8-18 | 33 | 12 | 24 | 8 | 23 | 19 | 22 |
| RK-1719-RWKD45 | R3/8-19 | 3/4-16 | 33 | 12 | 25 | 10 | 23 | 19 | 22 |
| RK-2114-RWKD45 | R1/2-14 | 9/16-18 | 39 | 12.5 | 22.5 | 7.5 | 28 | 22 | 27 |
| RK-2116-RWKD45 | R1/2-14 | 5/8-18 | 39 | 12.5 | 24 | 8 | 28 | 22 | 27 |
| RK-2119-RWKD45 | R1/2-14 | 3/4-16 | 39 | 12.5 | 25 | 10 | 28 | 22 | 27 |
| RK-2122-RWKD45 | R1/2-14 | 7/8-14 | 39 | 12.5 | 28 | 12.5 | 28 | 22 | 27 |
| RK-2127-RWKD45 | R1/2-14 | 1"1/16-12 | 42 | 12.5 | 32 | 15.5 | 28 | 27 | 27 |
| RK-2622-RWKD45 | R3/4-14 | 7/8-14 | 44 | 14 | 29 | 12.5 | 33 | 27 | 32 |
| RK-2627-RWKD45 | R3/4-14 | 1"1/16-12 | 44 | 14 | 32 | 15.5 | 33 | 27 | 32 |
| RK-3327-RWKD45 | R1"-11 | 1"1/16-12 | 47 | 16 | 33.5 | 15.5 | 41 | 36 | 41 |
| RK-3333-RWKD45 | R1"-11 | 1"5/16-12 | 47 | 16 | 37 | 21.5 | 41 | 36 | 41 |
