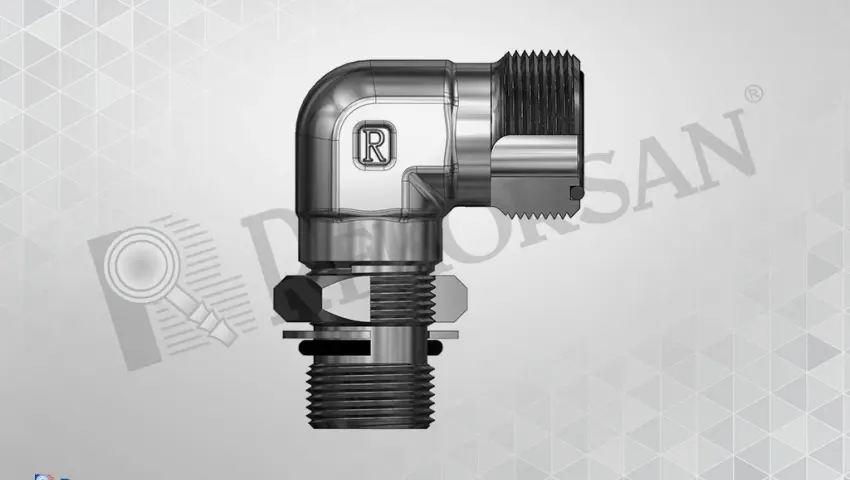

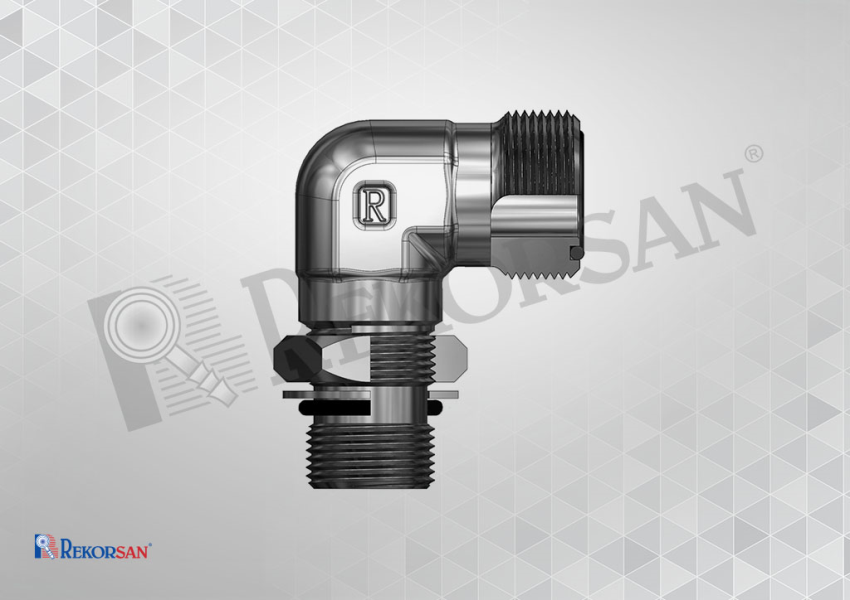

BSP - ORFS 90° KONTRALI DİRSEK
BSP - ORFS 90° KONTRALI DİRSEK

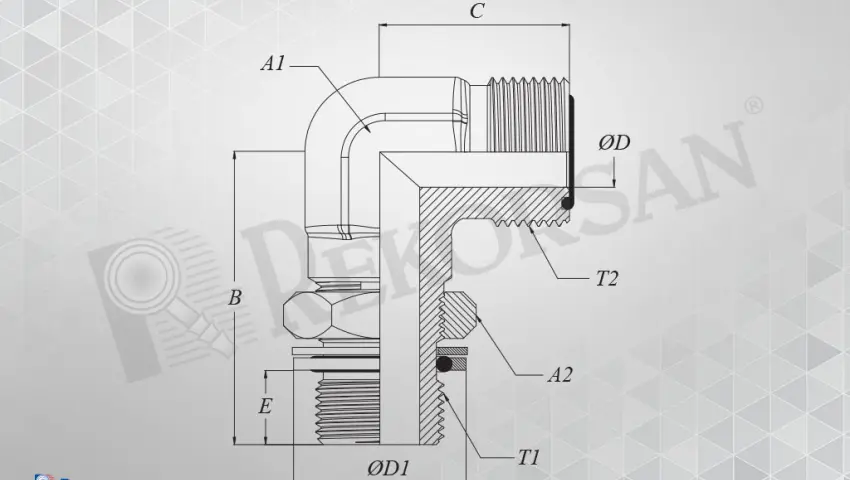

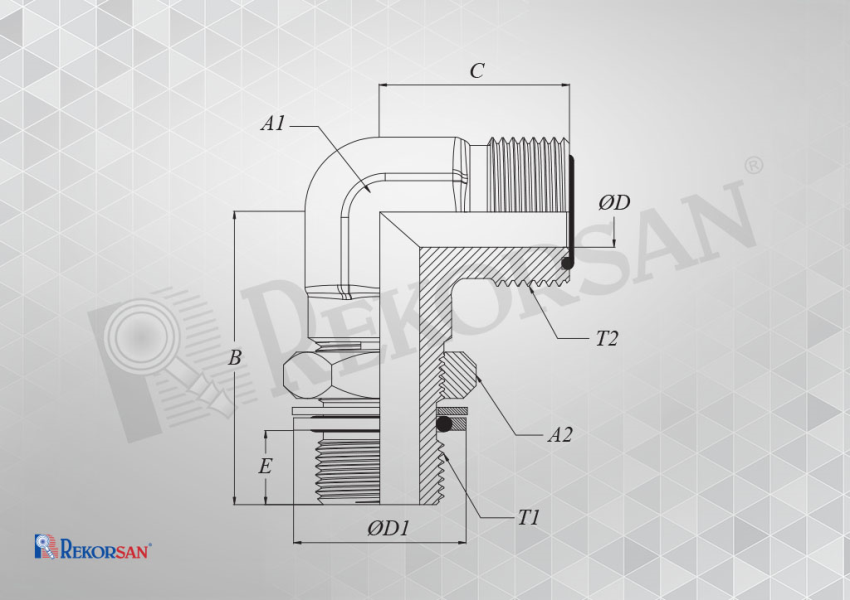

| BSP - ORFS 90° KONTRALI DİRSEK ORFS TUBE END - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING | |||||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1314-ROKD | R1/4-19 | 9/16-18 | 34 | 10 | 24 | 5 | 20 | 15 | 19 |
| RK-1317-ROKD | R1/4-19 | 11/16-16 | 34 | 10 | 24 | 6 | 20 | 15 | 19 |
| RK-1321-ROKD | R1/4-19 | 13/16-16 | 35 | 10 | 29 | 9 | 20 | 19 | 19 |
| RK-1714-ROKD | R3/8-19 | 9/16-18 | 37 | 12 | 29 | 5 | 23 | 19 | 22 |
| RK-1717-ROKD | R3/8-19 | 11/16-16 | 37 | 12 | 27 | 6 | 23 | 19 | 22 |
| RK-1721-ROKD | R3/8-19 | 13/16-16 | 37 | 12 | 28 | 9 | 23 | 19 | 22 |
| RK-2117-ROKD | R1/2-14 | 11/16-16 | 49 | 12.5 | 33 | 6 | 28 | 24 | 27 |
| RK-2121-ROKD | R1/2-14 | 13/16-16 | 49 | 12.5 | 33 | 9 | 28 | 24 | 27 |
| RK-2125-ROKD | R1/2-14 | 1"-14 | 49 | 12.5 | 33 | 12 | 28 | 24 | 27 |
| RK-2625-ROKD | R3/4-14 | 1"-14 | 49 | 14 | 36 | 12 | 33 | 30 | 32 |
| RK-2630-ROKD | R3/4-14 | 1"3/16-12 | 49 | 14 | 37 | 15 | 33 | 30 | 32 |
| RK-2637-ROKD | R3/4-14 | 1"7/16-12 | 55 | 14 | 42 | 19 | 33 | 36 | 32 |
| RK-3330-ROKD | R1"-11 | 1"3/16-12 | 58 | 16 | 42 | 15 | 41 | 36 | 41 |
| RK-3337-ROKD | R1"-11 | 1"7/16-12 | 58 | 16 | 42 | 19 | 41 | 36 | 41 |
