BSP - ORFS 45° KONTRALI DİRSEK
BSP - ORFS 45° KONTRALI DİRSEK

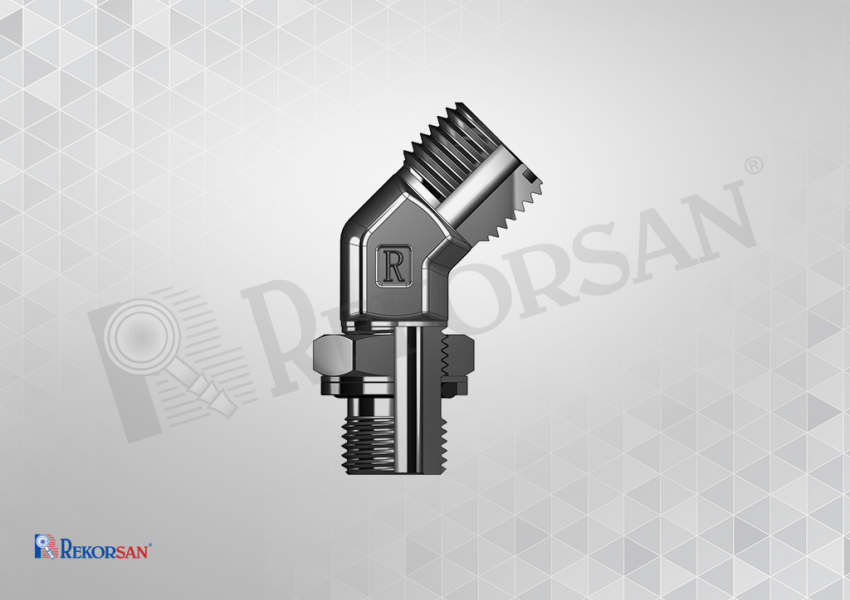

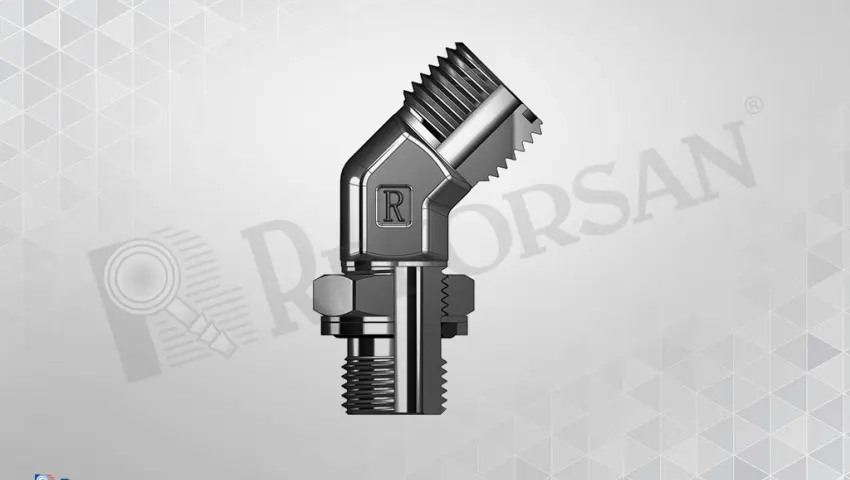

| BSP - ORFS 45° KONTRALI DİRSEK ORFS TUBE END - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING | |||||||||

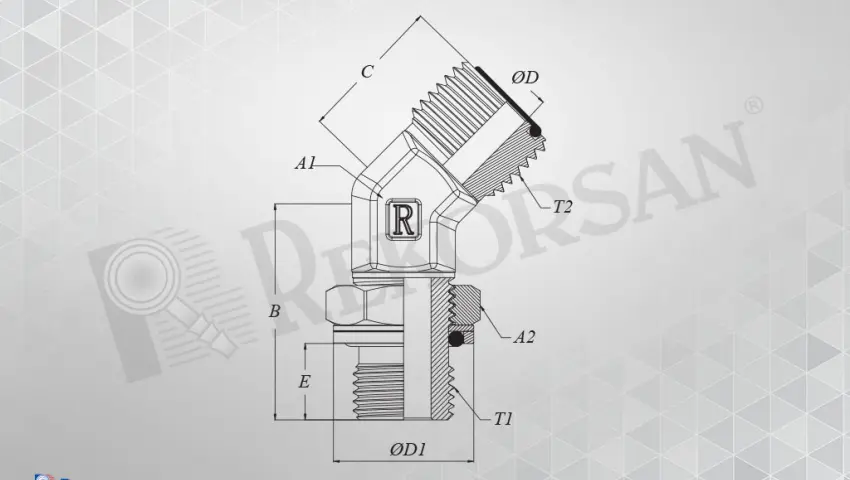

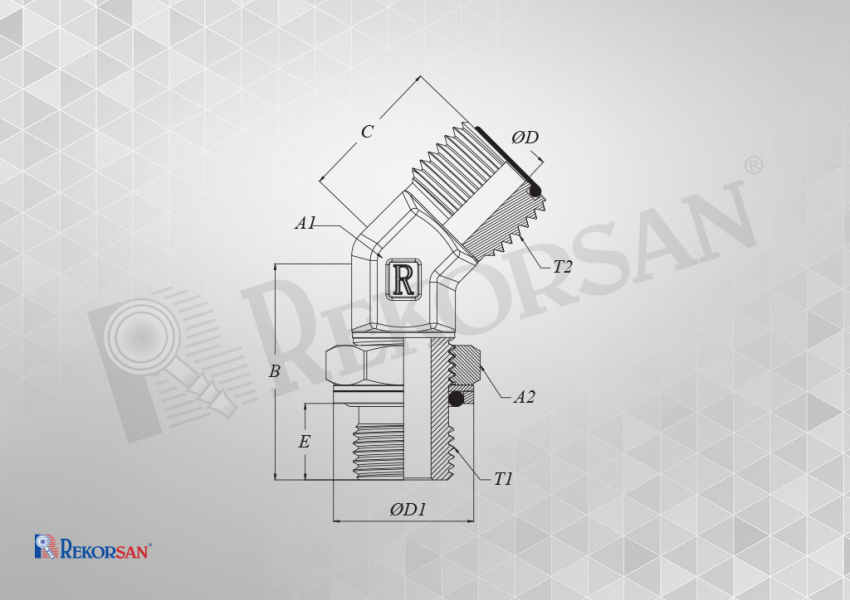

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | ØD1 | A1 | A2 |
| RK-1314-ROKD45 | R1/4-19 | 9/16-18 | 33 | 10 | 21 | 5 | 20 | 19 | 19 |
| RK-1317-ROKD45 | R1/4-19 | 11/16-16 | 33 | 10 | 22 | 6 | 20 | 19 | 19 |
| RK-1321-ROKD45 | R1/4-19 | 13/16-16 | 33 | 10 | 24 | 9 | 20 | 19 | 19 |
| RK-1714-ROKD45 | R3/8-19 | 9/16-18 | 34 | 12 | 21 | 5 | 23 | 19 | 22 |
| RK-1717-ROKD45 | R3/8-19 | 11/16-16 | 34 | 12 | 22 | 6 | 23 | 19 | 22 |
| RK-1721-ROKD45 | R3/8-19 | 13/16-16 | 34 | 12 | 24 | 9 | 23 | 19 | 22 |
| RK-2117-ROKD45 | R1/2-14 | 11/16-16 | 43 | 12.5 | 22 | 6 | 28 | 27 | 27 |
| RK-2121-ROKD45 | R1/2-14 | 13/16-16 | 43 | 12.5 | 24 | 9 | 28 | 27 | 27 |
| RK-2125-ROKD45 | R1/2-14 | 1"-14 | 43 | 12.5 | 24 | 12 | 28 | 27 | 27 |
| RK-2625-ROKD45 | R3/4-14 | 1"-14 | 46 | 14 | 24 | 12 | 33 | 27 | 32 |
| RK-2630-ROKD45 | R3/4-14 | 1"3/16-12 | 46 | 14 | 26 | 15 | 33 | 30 | 32 |
| RK-2637-ROKD45 | R3/4-14 | 1"7/16-12 | 50 | 14 | 30 | 19 | 33 | 36 | 32 |
| RK-3330-ROKD45 | R1"-11 | 1"3/16-12 | 51 | 16 | 30 | 15 | 41 | 36 | 41 |
| RK-3337-ROKD45 | R1"-11 | 1"7/16-12 | 51 | 16 | 30 | 19 | 41 | 36 | 41 |
