BSP METRİK 90° KONTRALI DİRSEK
BSP METRİK 90° KONTRALI DİRSEK

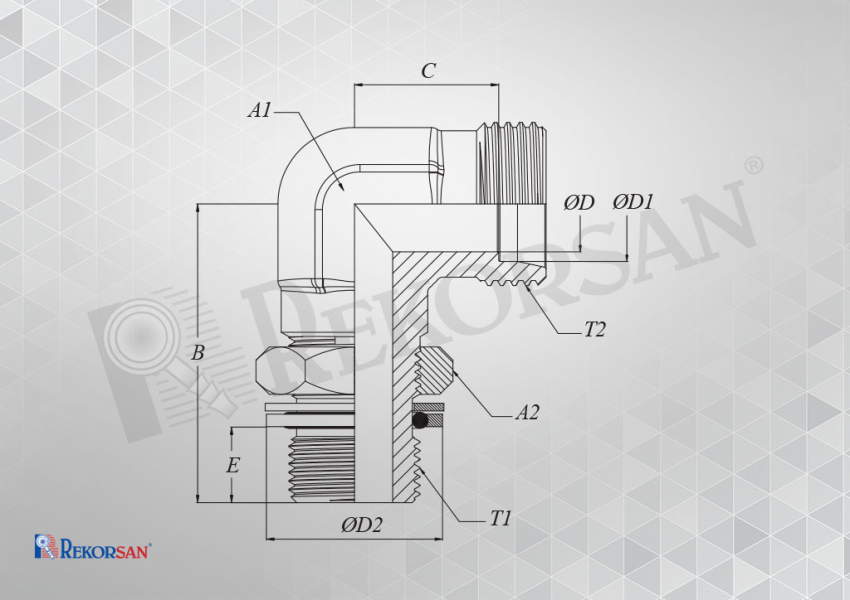

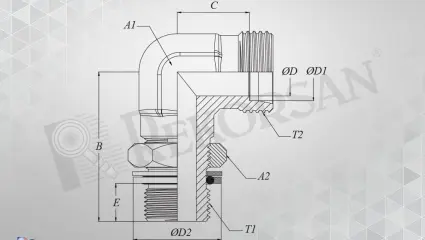

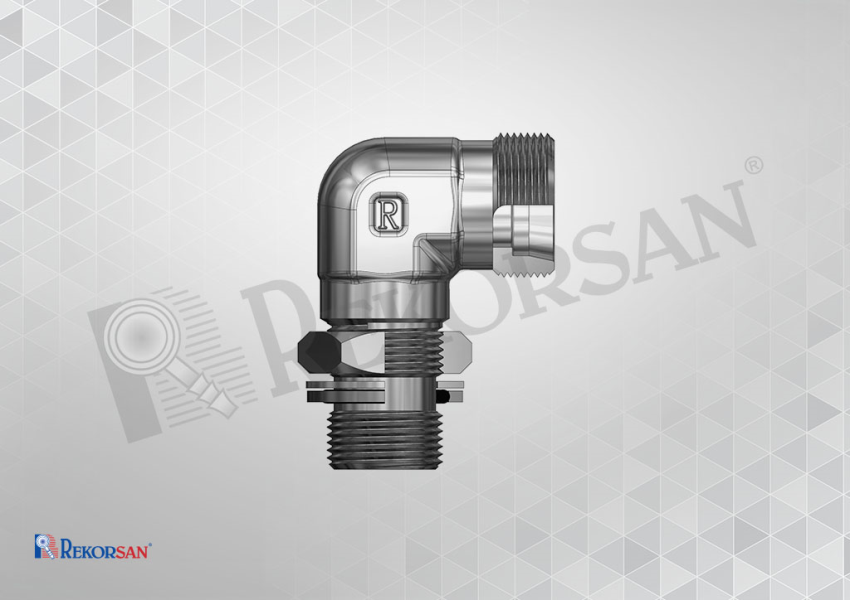

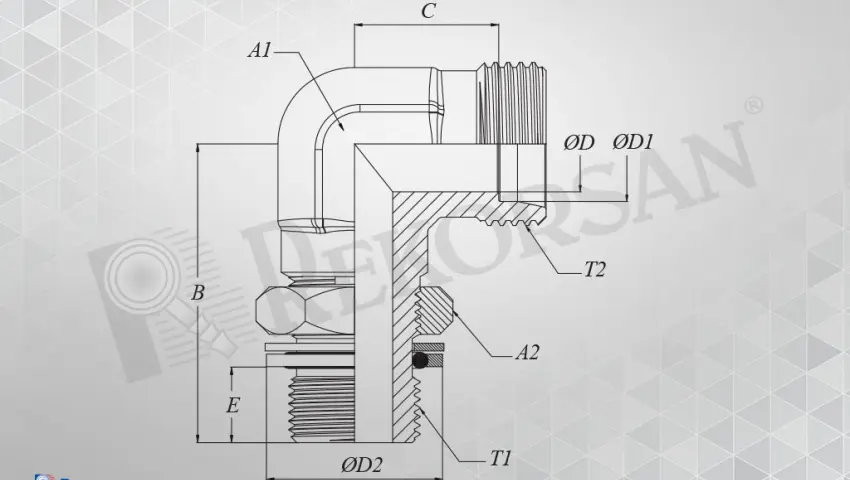

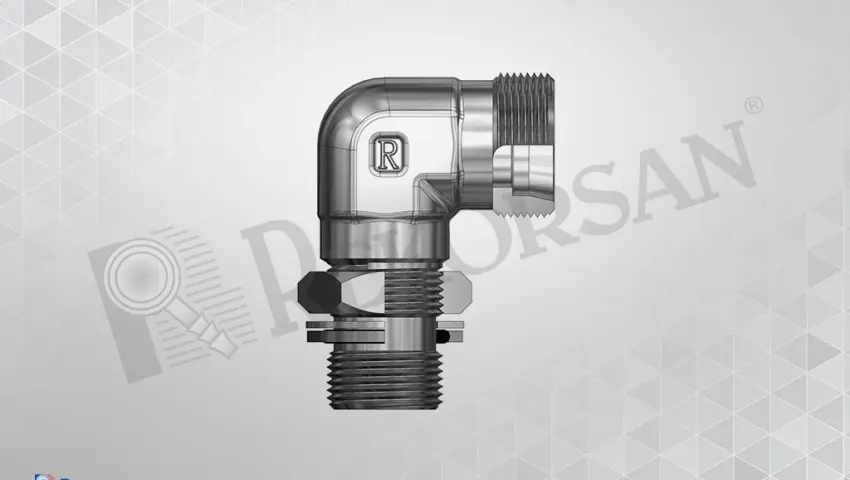

| BSP - METRİK 90° KONTRALI DİRSEK METRIC 24° CONE - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING | ||||||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | ØD1 | ØD2 | A1 | A2 |
| L TİPİ / L TYPE | ||||||||||
| RK-1006-RMKD-L | R1/8-28 | M12x1,5 6L | 26 | 7 | 12 | 4 | 6 | 15 | 12 | 14 |
| RK-1306-RMKD-L | R1/4-19 | M12x1,5 6L | 34 | 10 | 14 | 4 | 6 | 20 | 15 | 19 |
| RK-1308-RMKD-L | R1/4-19 | M14x1,5 8L | 34 | 10 | 16 | 6 | 8 | 20 | 15 | 19 |
| RK-1310-RMKD-L | R1/4-19 | M16x1,5 10L | 34 | 10 | 17 | 8 | 10 | 20 | 15 | 19 |
| RK-1312-RMKD-L | R1/4-19 | M18x1,5 12L | 35 | 10 | 19 | 10 | 12 | 20 | 19 | 19 |
| RK-1710-RMKD-L | R3/8-19 | M16x1,5 10L | 37 | 12 | 17 | 8 | 10 | 23 | 19 | 22 |
| RK-1712-RMKD-L | R3/8-19 | M18x1,5 12L | 37 | 12 | 19 | 10 | 12 | 23 | 19 | 22 |
| RK-2112-RMKD-L | R1/2-14 | M18x1,5 12L | 49 | 12.5 | 21 | 10 | 12 | 28 | 24 | 27 |
| RK-2115-RMKD-L | R1/2-14 | M22x1,5 15L | 49 | 12.5 | 21 | 12 | 15 | 28 | 24 | 27 |
| RK-2118-RMKD-L | R1/2-14 | M26x1,5 18L | 49 | 12.5 | 23.5 | 15 | 18 | 28 | 24 | 27 |
| RK-2618-RMKD-L | R3/4-14 | M26x1,5 18L | 49 | 14 | 23.5 | 15 | 18 | 33 | 30 | 32 |
| RK-2622-RMKD-L | R3/4-14 | M30x2 22L | 49 | 14 | 27.5 | 19 | 22 | 33 | 30 | 32 |
| RK-3322-RMKD-L | R1"-11 | M30x2 22L | 58 | 16 | 30.5 | 19 | 22 | 41 | 36 | 41 |
| RK-3328-RMKD-L | R1"-11 | M36x2 28L | 58 | 16 | 30.5 | 24 | 28 | 41 | 36 | 41 |
| RK-4235-RMKD-L | R1"1/4-11 | M45x2 35L | 64 | 17 | 37.5 | 30 | 35 | 51 | 42 | 50 |
| RK-4242-RMKD-L | R1"1/4-11 | M52x2 42L | 70 | 17 | 38 | 36 | 42 | 51 | 50 | 50 |
| RK-4842-RMKD-L | R1"1/2-11 | M52x2 42L | 70 | 17 | 38 | 36 | 42 | 56 | 50 | 55 |
| S TİPİ / S TYPE | ||||||||||
| RK-1710-RMKD-S | R3/8-19 | M18x1,5 10S | 37 | 12 | 18 | 10 | 10 | 23 | 19 | 22 |
| RK-1712-RMKD-S | R3/8-19 | M20x1,5 12S | 37 | 12 | 21.5 | 8 | 12 | 23 | 19 | 22 |
| RK-2112-RMKD-S | R1/2-14 | M20x1,5 12S | 49 | 12.5 | 21.5 | 8 | 12 | 28 | 24 | 27 |
| RK-2116-RMKD-S | R1/2-14 | M24x1,5 16S | 49 | 12.5 | 24.5 | 12 | 16 | 28 | 24 | 27 |
| RK-2120-RMKD-S | R1/2-14 | M30x2 20S | 49 | 12.5 | 27.5 | 16 | 20 | 28 | 30 | 27 |
| RK-2616-RMKD-S | R3/4-14 | M24x1,5 16S | 49 | 14 | 24.5 | 12 | 16 | 33 | 30 | 32 |
| RK-2620-RMKD-S | R3/4-14 | M30x2 20S | 49 | 14 | 27.5 | 16 | 20 | 33 | 30 | 32 |
| RK-2625-RMKD-S | R3/4-14 | M36x2 25S | 58 | 14 | 30 | 20 | 25 | 33 | 36 | 32 |
| RK-3320-RMKD-S | R1"-11 | M30x2 20S | 58 | 16 | 27.5 | 16 | 20 | 41 | 36 | 41 |
| RK-3325-RMKD-S | R1"-11 | M36x2 25S | 58 | 16 | 30 | 20 | 25 | 41 | 36 | 41 |
| RK-3330-RMKD-S | R1"-11 | M42x2 30S | 62 | 16 | 35.5 | 25 | 30 | 41 | 42 | 41 |
| RK-4230-RMKD-S | R1"1/4-11 | M42x2 30S | 64 | 17 | 35.5 | 25 | 30 | 51 | 42 | 50 |
| RK-4238-RMKD-S | R1"1/4-11 | M52x2 38S | 70 | 17 | 33.5 | 32 | 38 | 51 | 50 | 50 |
| RK-4838-RMKD-S | R1"1/2-11 | M52x2 38S | 70 | 17 | 33.5 | 32 | 38 | 56 | 50 | 55 |
