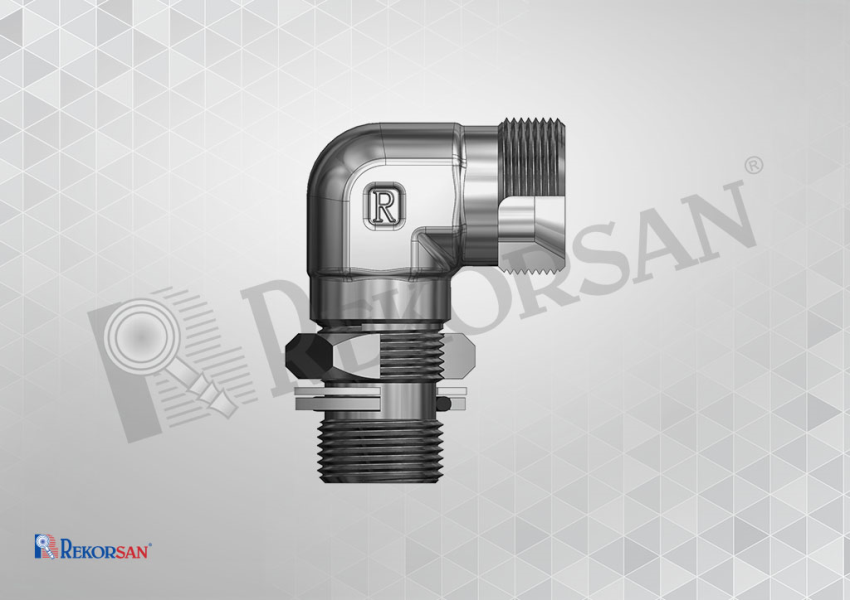

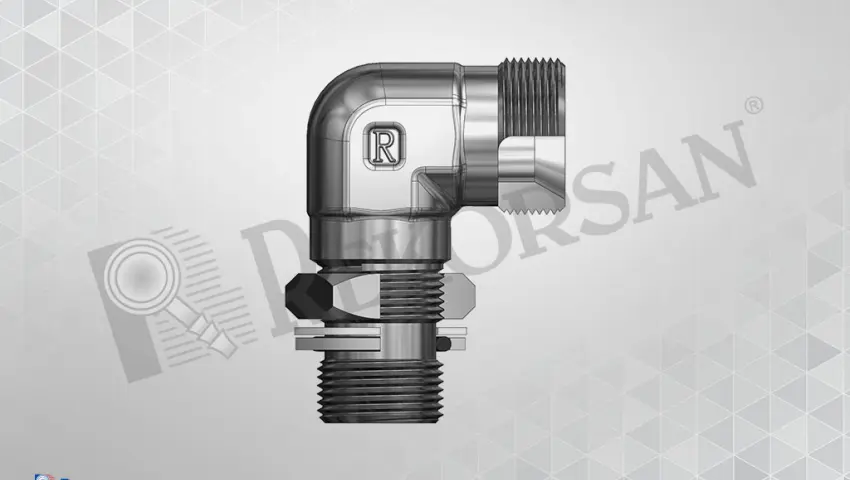

BSP - BSP 90° KONTRALI DİRSEK

BSP - BSP 90° KONTRALI DİRSEK BSP THREAD - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING

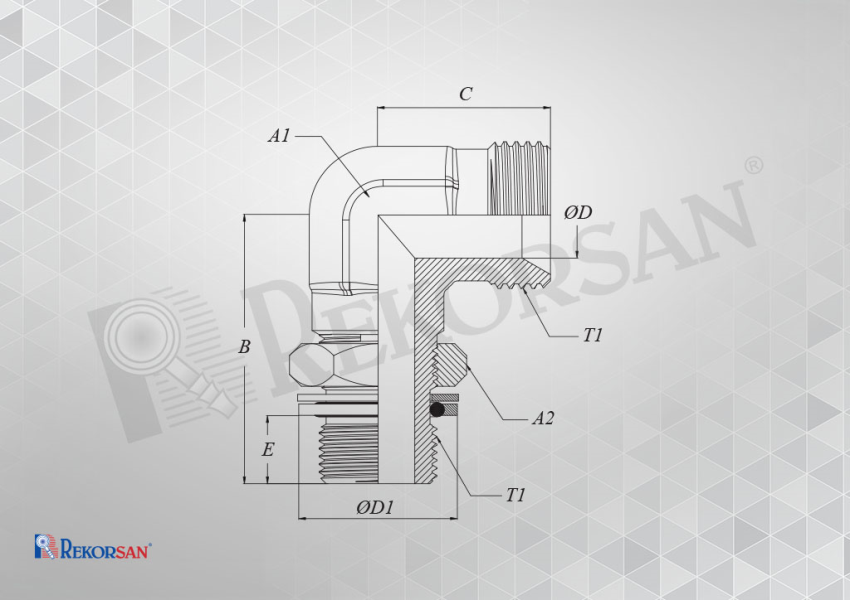

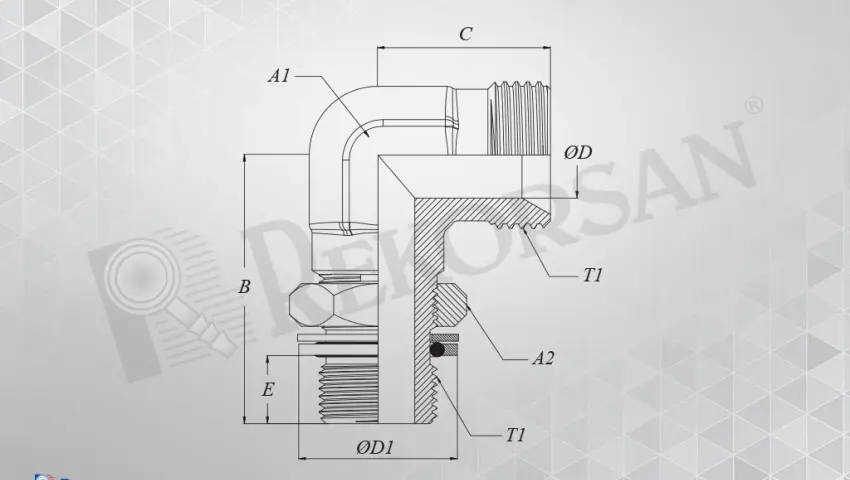

MALZEME KODU MATERIAL CODE	DİŞ ÖLÇÜSÜ THREAD SIZE T1	DİŞ ÖLÇÜSÜ THREAD SIZE T1	B	E	C	ØD	ØD1	A1	A2
RK-1010-RRKD	R1/8-28	R1/8-28	26	7	19	4	15	12	14
RK-1313-RRKD	R1/4-19	R1/4-19	34	10	24	6	20	15	19
RK-1717-RRKD	R3/8-19	R3/8-19	37	12	27	9	23	19	22
RK-2121-RRKD	R1/2-14	R1/2-14	49	12.5	31	12	28	24	27
RK-2626-RRKD	R3/4-14	R3/4-14	49	14	36	16	33	30	32
RK-3333-RRKD	R1"-11	R1"-11	58	16	42.5	20	41	36	41
RK-4242-RRKD	R1"1/4-11	R1"1/4-11	64	17	49	26	51	42	50
RK-4848-RRKD	R1"1/2-11	R1"1/2-11	70	17	50	32	56	50	55
