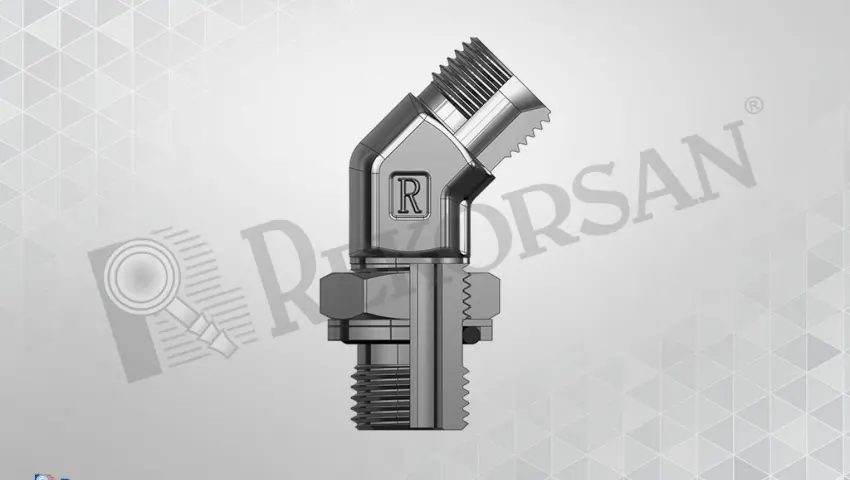

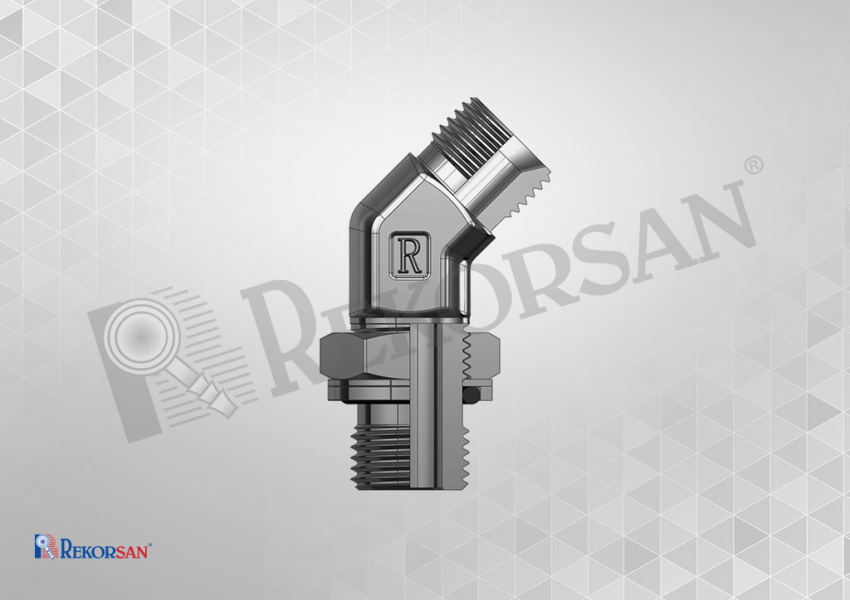

BSP - BSP 45° KONTRALI DİRSEK

BSP - BSP 45° KONTRALI DİRSEK BSP THREAD - ADJUSTABLE BSP THREAD - O-RING + RETAINING RING

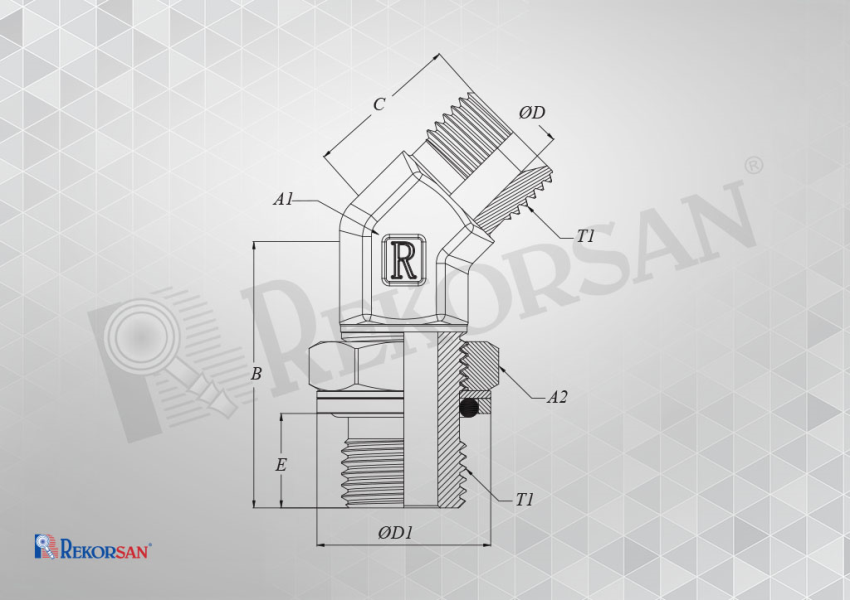

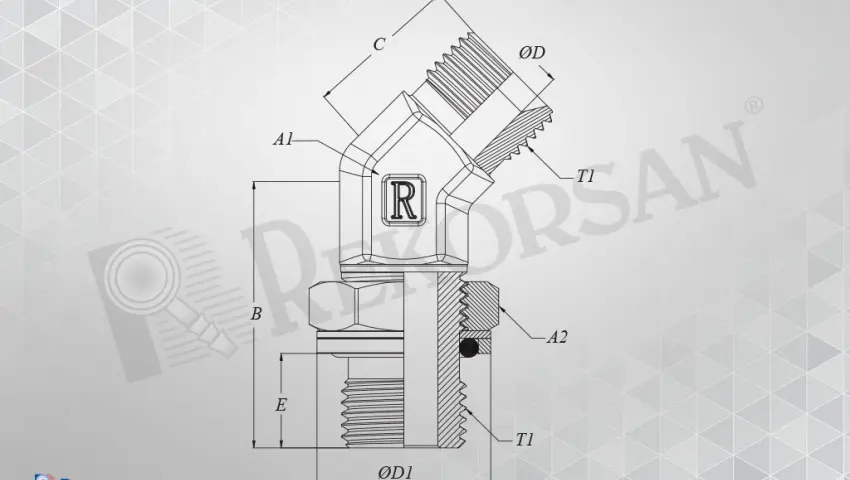

MALZEME KODU MATERIAL CODE	DİŞ ÖLÇÜSÜ THREAD SIZE T1	DİŞ ÖLÇÜSÜ THREAD SIZE T1	B	E	C	ØD	ØD1	A1	A2
RK-1010-RRKD45	R1/8-28	R1/8-28	26	7	16	4	15	12	14
RK-1313-RRKD45	R1/4-19	R1/4-19	30	10	21	6	20	14	19
RK-1717-RRKD45	R3/8-19	R3/8-19	34	12	24	9	23	19	22
RK-2121-RRKD45	R1/2-14	R1/2-14	41	12.5	27	12	28	22	27
RK-2626-RRKD45	R3/4-14	R3/4-14	44	14	32	16	33	27	32
RK-3333-RRKD45	R1"-11	R1"-11	48	16	35	20	41	36	41
RK-4242-RRKD45	R1"1/4-11	R1"1/4-11	49	17	37	26	51	45	50
RK-4848-RRKD45	R1"1/2-11	R1"1/2-11	56	17	46	32	56	50	55
