METRİK KONTRA SOMUNU
METRİK KONTRA SOMUNU

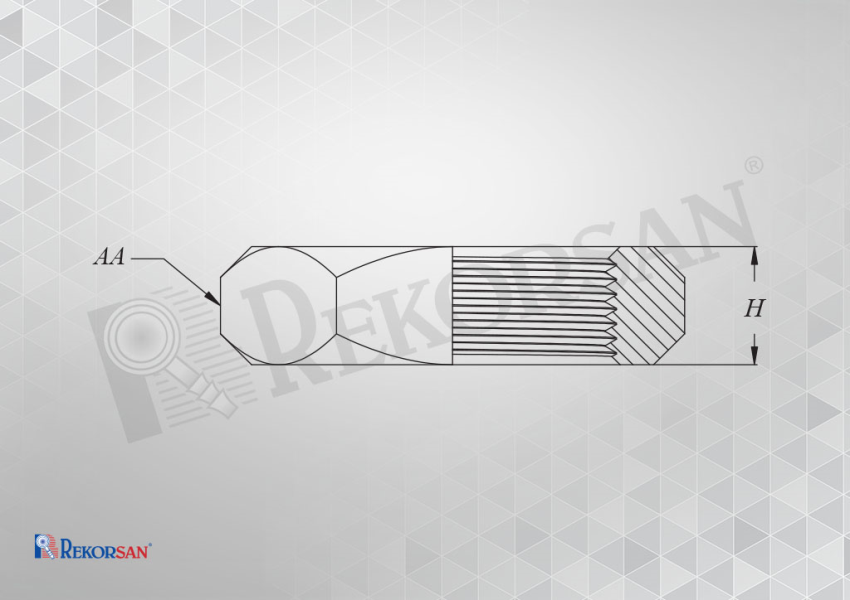

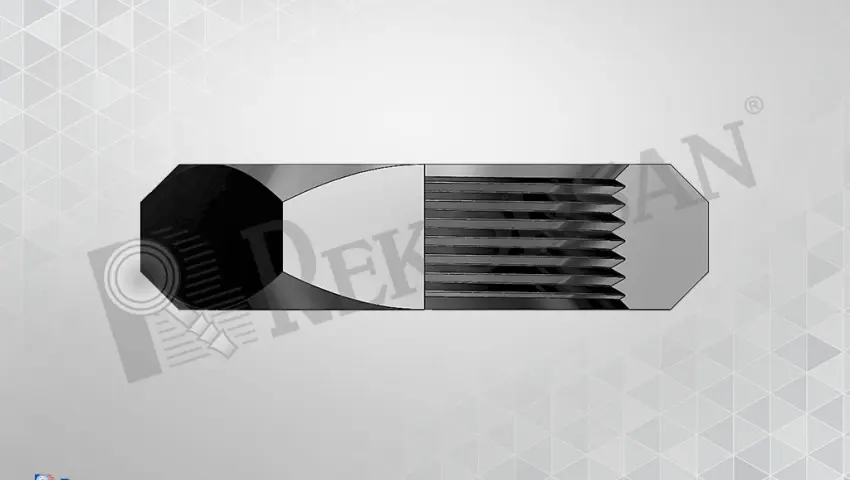

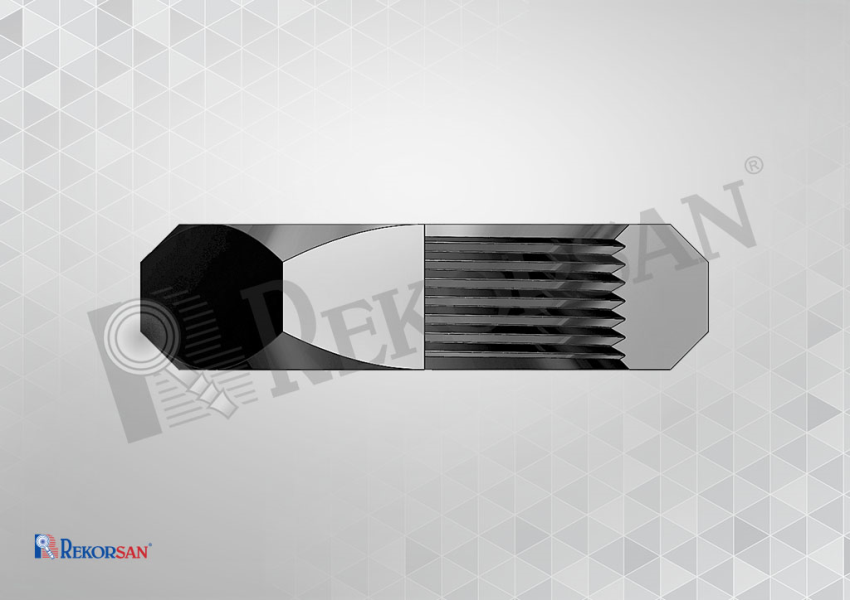

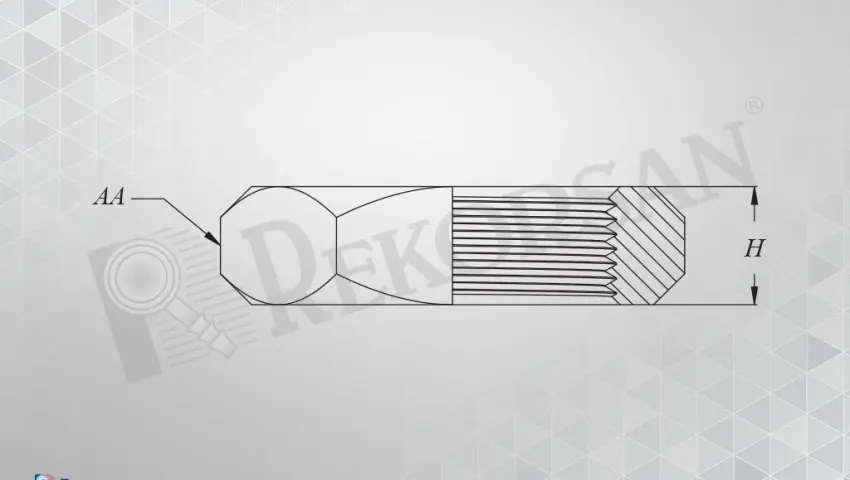

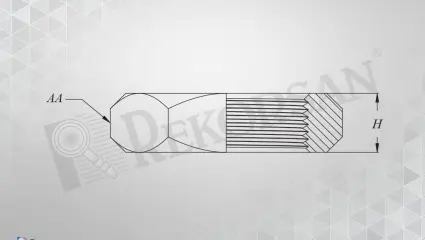

| METRİK KONTRA SOMUNU METRIC LOCK NUT | |||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | H | AA |
| RK-1215-MKS | M12x1,5 | 6 | 17 |
| RK-1415-MKS | M14x1,5 | 6 | 19 |
| RK-1615-MKS | M16x1,5 | 6 | 22 |
| RK-1815-MKS | M18x1,5 | 6 | 24 |
| RK-2015-MKS | M20x1,5 | 6 | 27 |
| RK-2215-MKS | M22x1,5 | 7 | 30 |
| RK-2415-MKS | M24x1,5 | 7 | 32 |
| RK-2615-MKS | M26x1,5 | 8 | 36 |
| RK-3020-MKS | M30x2 | 8 | 41 |
| RK-3620-MKS | M36x2 | 9 | 46 |
| RK-4220-MKS | M42x2 | 9 | 50 |
| RK-4520-MKS | M45x2 | 9 | 55 |
| RK-5220-MKS | M52x2 | 10 | 65 |
