KIRICI HORTUM RAKORU
KIRICI HORTUM RAKORU

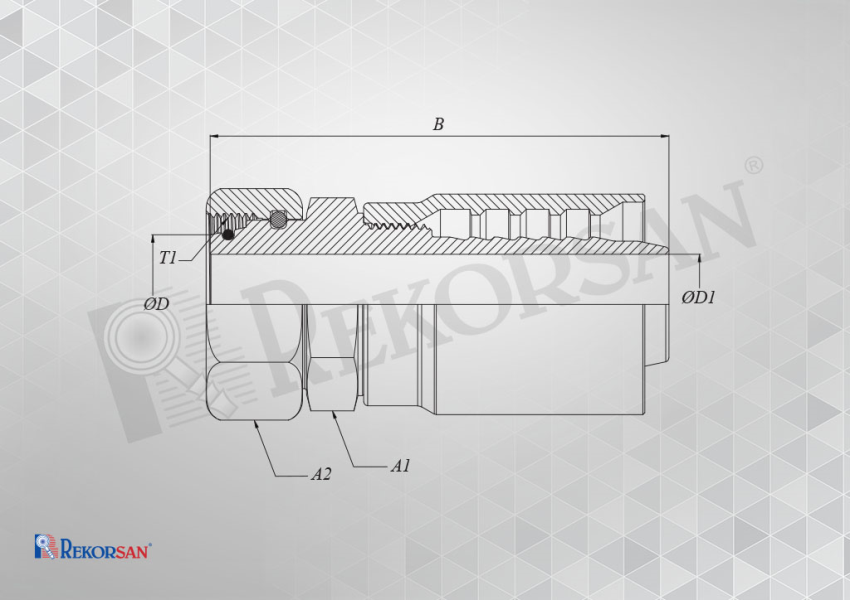

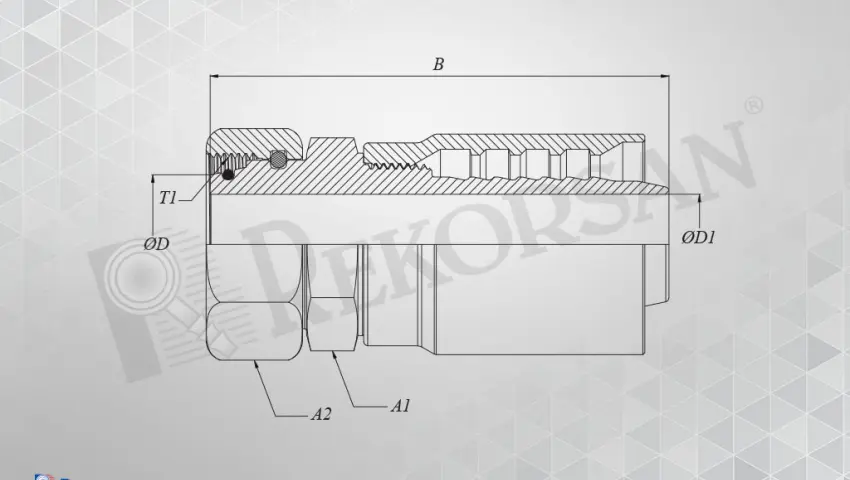

| KIRICI HORTUM RAKORLARI FEMALE STRAIGHT SWIVEL HOSE FITTINGS | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE T1 | BORU ÇAPI TUBE OD ØD | B | ØD1 | A1 | A2 | |
| mm | inch | |||||||
| RK-2536-KR | 25 | 1" | M36x2 | 25 | 104 | 17 | 36 | 46 |
| RK-2542-KR | 25 | 1" | M42x2 | 30 | 107.5 | 17 | 41 | 50 |
| RK-2545-KR | 25 | 1" | M45x2 | 35 | 108 | 17 | 46 | 50 |
| RK-2552-KR | 25 | 1" | M52x2 | 38 | 111.5 | 17 | 50 | 60 |
| RK-3242-KR | 32 | 1"1/4 | M42x2 | 30 | 113.5 | 23 | 41 | 50 |
| RK-3245-KR | 32 | 1"1/4 | M45x2 | 35 | 114 | 25 | 46 | 50 |
| RK-3252-KR | 32 | 1"1/4 | M52x2 | 38 | 117.5 | 25 | 50 | 60 |
| RK-2533-KR | 25 | 1" | R1"-11 | 25 | 104.5 | 17 | 36 | 41 |
| RK-2537-KR | 25 | 1" | 1"7/16-12 ORFS | 25 | 110.5 | 17 | 36 | 41 |
| RK-3243-KR | 32 | 1"1/4 | 1"11/16-12 ORFS | 30 | 120 | 23 | 41 | 50 |
