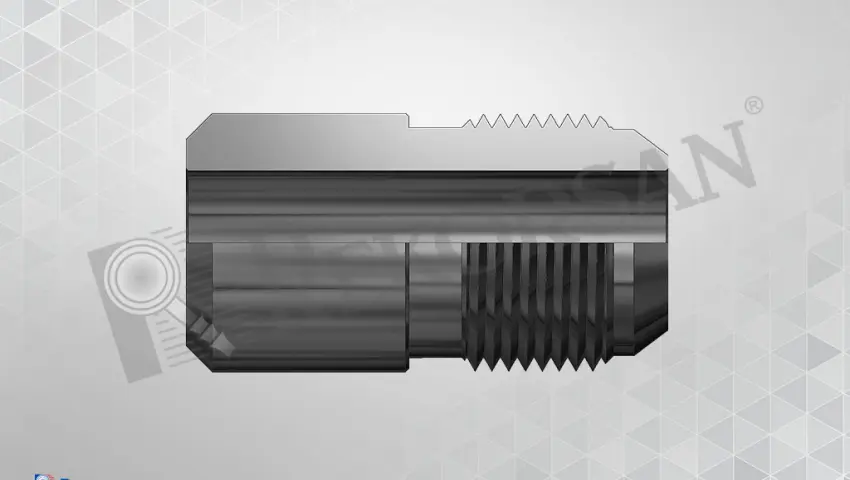

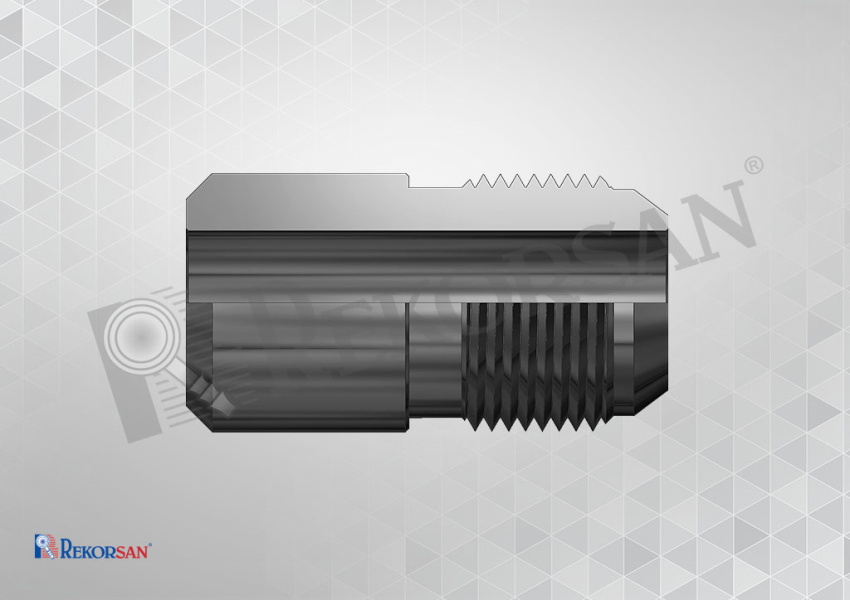

UNF ERKEK KAYNAKLIK NİPELİ
UNF ERKEK KAYNAKLIK NİPELİ

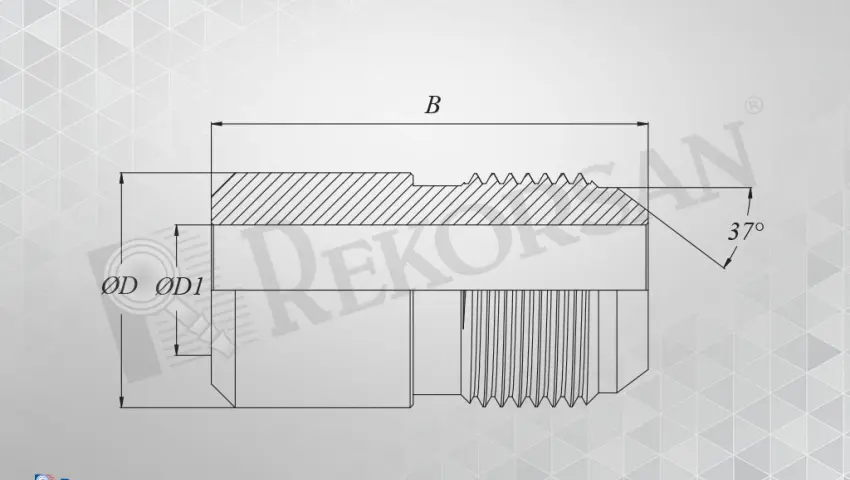

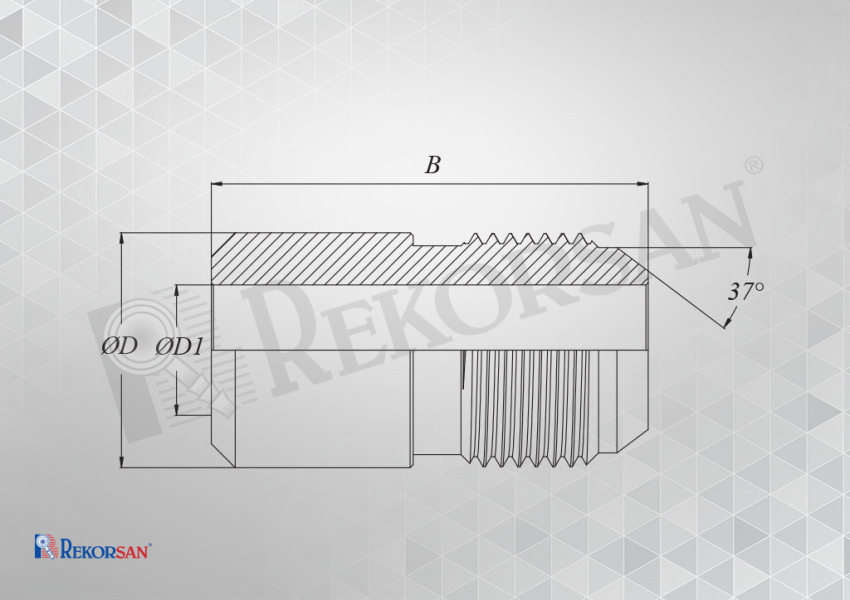

| UNF KAYNAKLIK NİPELİ UNF MALE THREAD WELDING NIPPLE | ||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE | B | ØD | ØD1 |
| RK-1320-WKN | 1/2-20 | 28.5 | 13 | 6 |
| RK-1418-WKN | 9/16-18 | 33 | 14 | 7.5 |
| RK-1618-WKN | 5/8-18 | 35 | 16 | 8 |
| RK-1916-WKN | 3/4-16 | 40 | 19 | 10 |
| RK-2214-WKN | 7/8-14 | 40 | 22 | 12.5 |
| RK-2712-WKN | 1"1/16-12 | 50 | 27 | 15.5 |
| RK-3312-WKN | 1"5/16-12 | 55 | 33 | 21.5 |
