METRİK KAYNAKLIK PERDE GEÇİŞ NİPELİ
METRİK KAYNAKLIK PERDE GEÇİŞ NİPELİ

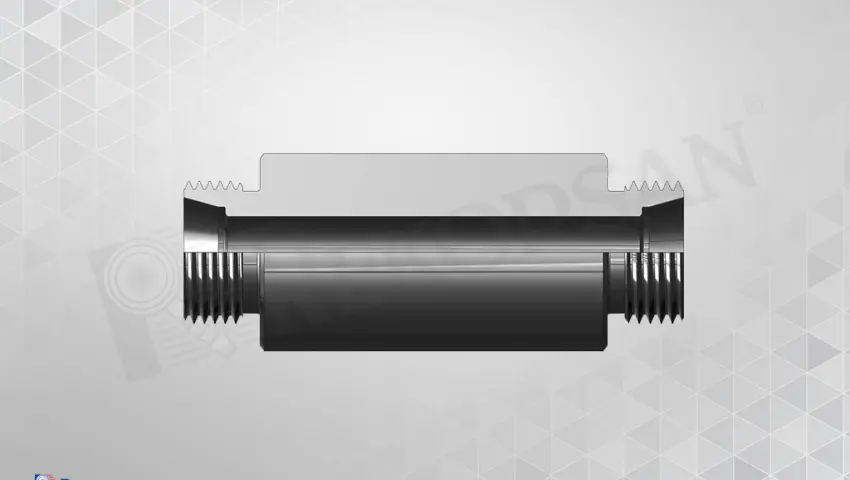

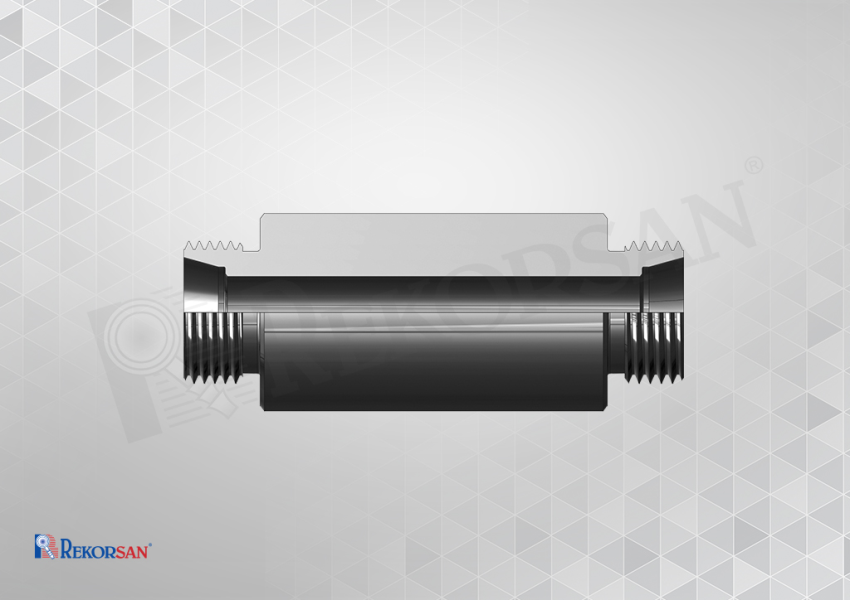

| METRİK KAYNAKLIK PERDE GEÇİŞ NİPELİ METRIC WELD-IN BULKHEAD STRAIGHT CONNECTOR | |||||

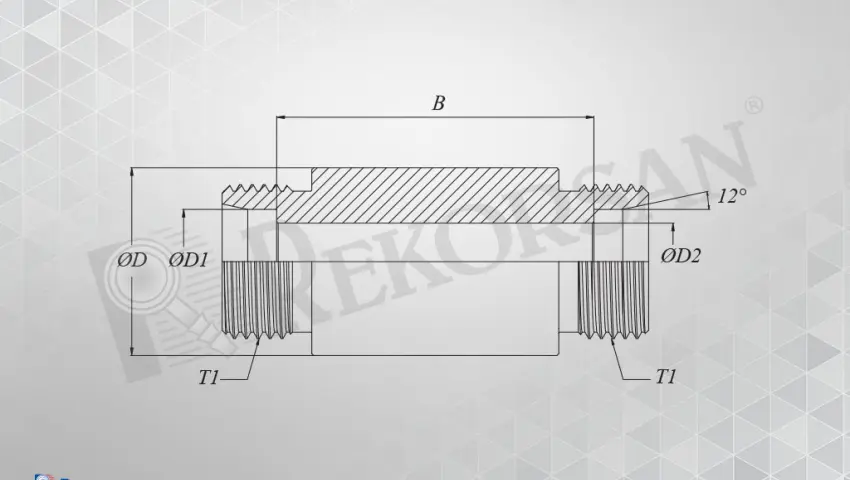

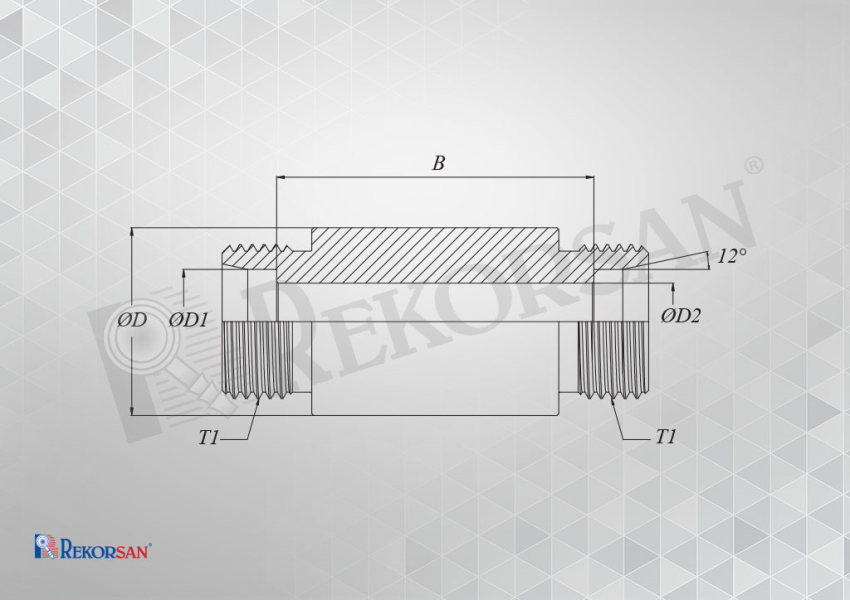

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | ØD | ØD1 | ØD2 |
| L TİPİ / L TYPE | |||||
| RK-0606-MKPGN-L | M12x1,5 6L | 56 | 18 | 6 | 4 |
| RK-0808-MKPGN-L | M14x1,5 8L | 56 | 20 | 8 | 6 |
| RK-1010-MKPGN-L | M16x1,5 10L | 58 | 22 | 10 | 8 |
| RK-1212-MKPGN-L | M18x1,5 12L | 58 | 25 | 12 | 10 |
| RK-1515-MKPGN-L | M22x1,5 15L | 70 | 28 | 15 | 12 |
| RK-1818-MKPGN-L | M26x1,5 18L | 69 | 32 | 18 | 15 |
| RK-2222-MKPGN-L | M30x2 22L | 73 | 36 | 22 | 19 |
| RK-2828-MKPGN-L | M36x2 28L | 73 | 40 | 28 | 24 |
| RK-3535-MKPGN-L | M45x2 35L | 71 | 50 | 35 | 30 |
| RK-4242-MKPGN-L | M52x2 42L | 70 | 60 | 42 | 36 |
| S TİPİ / S TYPE | |||||
| RK-0606-MKPGN-S | M14x1,5 6S | 60 | 20 | 6 | 4 |
| RK-0808-MKPGN-S | M16x1,5 8S | 50 | 22 | 8 | 5 |
| RK-1010-MKPGN-S | M18x1,5 10S | 59 | 25 | 10 | 7 |
| RK-1212-MKPGN-S | M20x1,5 12S | 59 | 28 | 12 | 8 |
| RK-1616-MKPGN-S | M24x1,5 16S | 71 | 35 | 16 | 12 |
| RK-2020-MKPGN-S | M30x2 20S | 71 | 38 | 20 | 16 |
| RK-2525-MKPGN-S | M36x2 25S | 72 | 45 | 25 | 20 |
| RK-3030-MKPGN-S | M42x2 30S | 73 | 50 | 30 | 25 |
| RK-3838-MKPGN-S | M52x2 38S | 72 | 60 | 38 | 32 |
