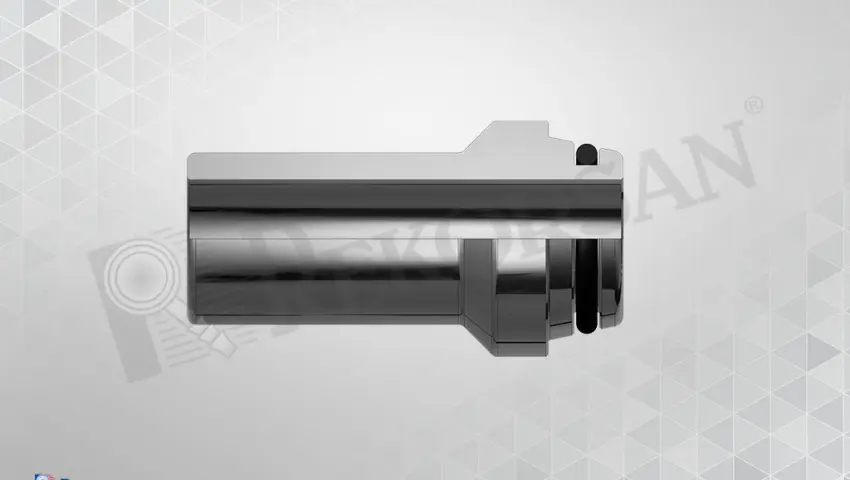

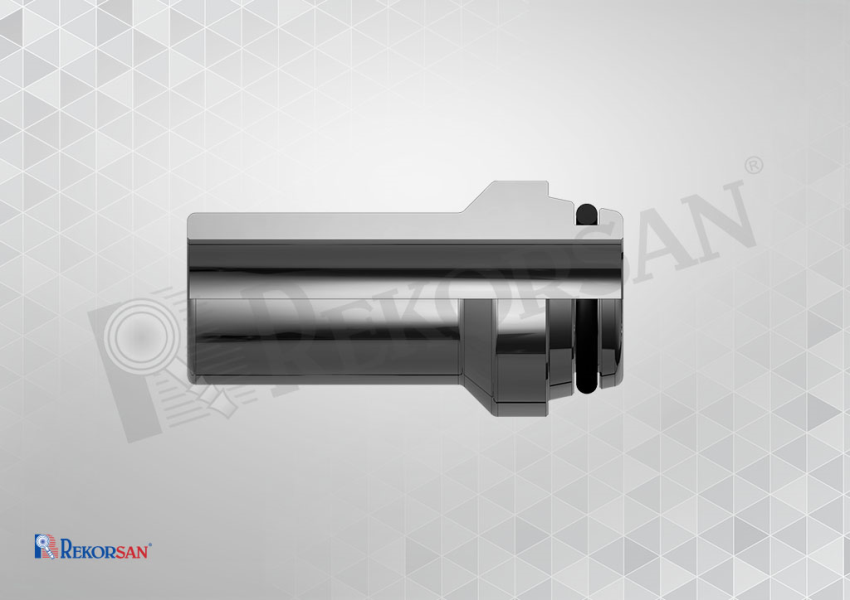

METRİK KAYNAKLIK KUYRUKLU YÜKSÜK
METRİK KAYNAKLIK KUYRUKLU YÜKSÜK

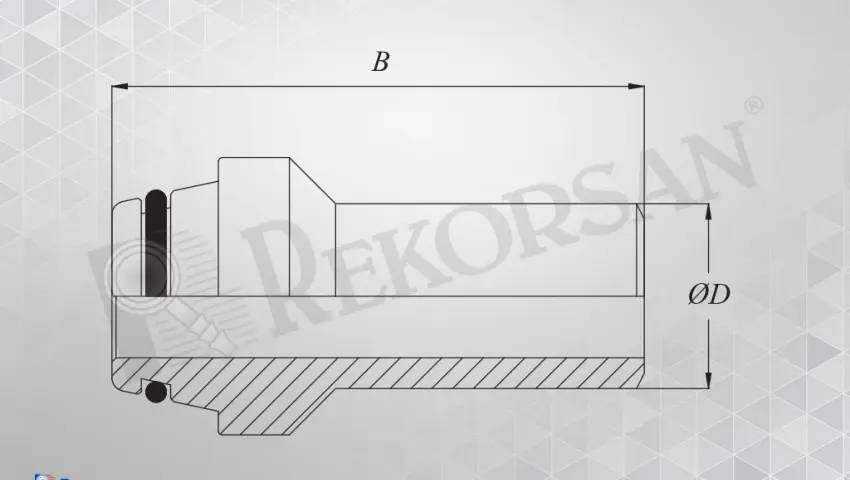

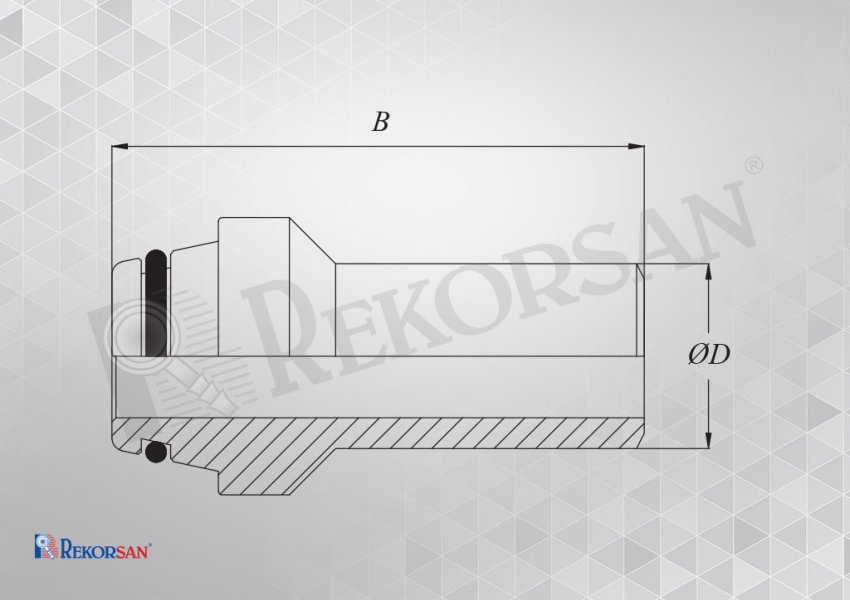

| METRİK KAYNAKLIK KUYRUKLU YÜKSÜK METRIC WELD-ON NIPPLE | |||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | ØD |
| L TİPİ / L TYPE | |||
| RK-1206-MKY-L | M12x1,5 6L | 30.5 | 6 |
| RK-1408-MKY-L | M14x1,5 8L | 31 | 8 |
| RK-1610-MKY-L | M16x1,5 10L | 32 | 10 |
| RK-1812-MKY-L | M18x1,5 12L | 32 | 12 |
| RK-2215-MKY-L | M22x1,5 15L | 33 | 15 |
| RK-2618-MKY-L | M26x1,5 18L | 37 | 18 |
| RK-3022-MKY-L | M30x2 22L | 37 | 22 |
| RK-3628-MKY-L | M36x2 28L | 42 | 28 |
| RK-4535-MKY-L | M45x2 35L | 47 | 35 |
| RK-5242-MKY-L | M52x2 42L | 48 | 42 |
| S TİPİ / S TYPE | |||
| RK-1406-MKY-S | M14x1,5 6S | 30.5 | 6 |
| RK-1608-MKY-S | M16x1,5 8S | 31 | 8 |
| RK-1810-MKY-S | M18x1,5 10S | 32 | 10 |
| RK-2012-MKY-S | M20x1,5 12S | 32 | 12 |
| RK-2416-MKY-S | M24x1,5 16S | 39 | 16 |
| RK-3020-MKY-S | M30x2 20S | 44 | 20 |
| RK-3625-MKY-S | M36x2 25S | 50 | 25 |
| RK-4230-MKY-S | M42x2 30S | 52.5 | 30 |
| RK-5238-MKY-S | M52x2 38S | 58 | 38 |
