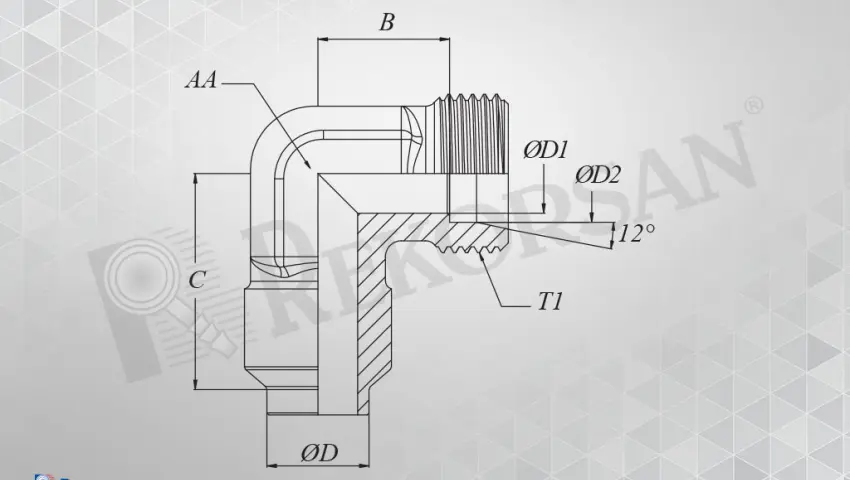

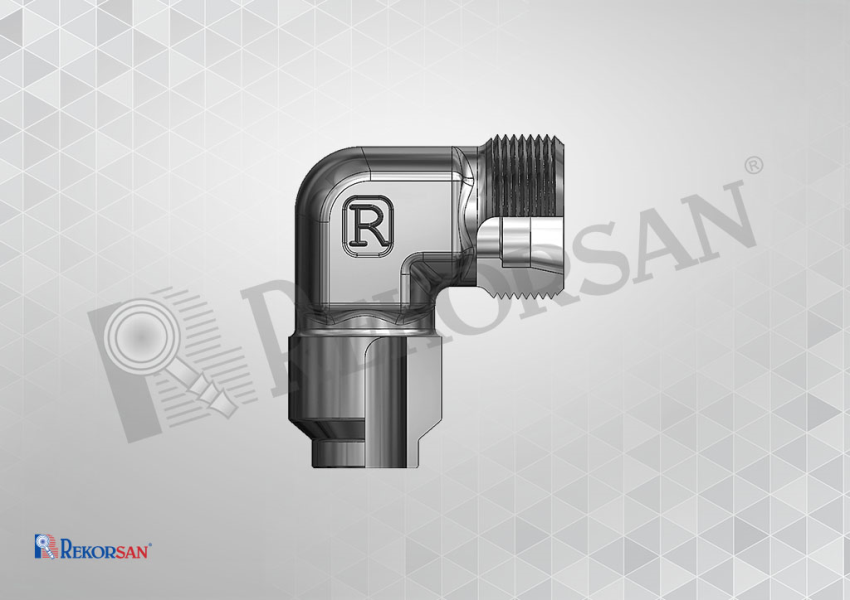

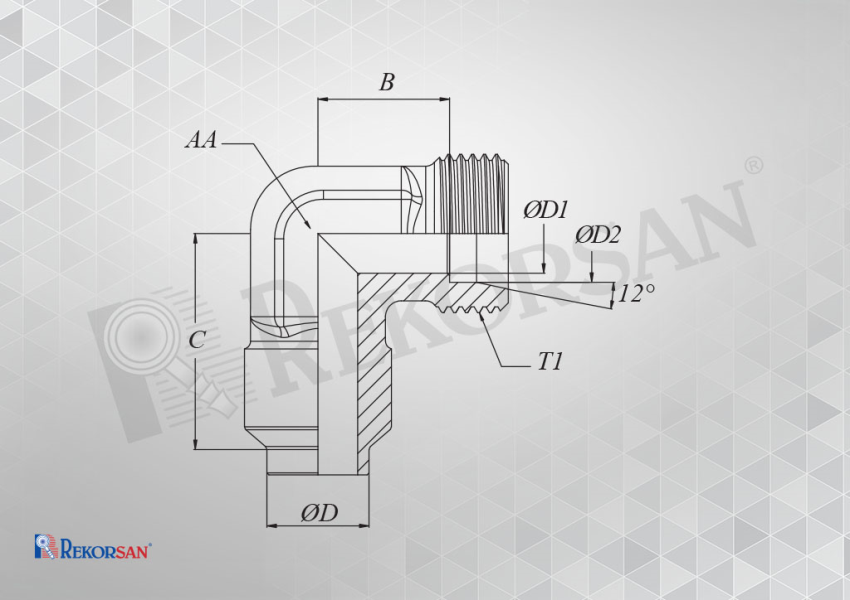

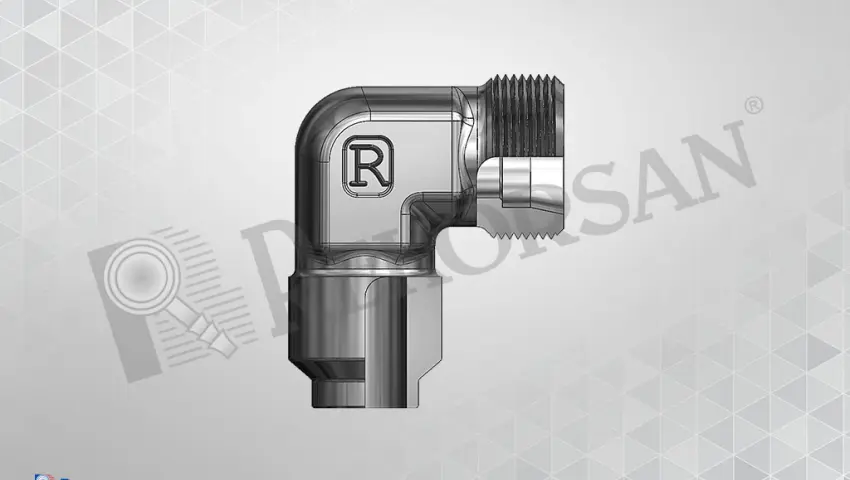

| METRİK KAYNAKLIK DİRSEK METRIC WELD ELBOW | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | ØD | ØD1 | ØD2 | AA |
| L TİPİ / L TYPE | |||||||
| RK-1206-MKD-L | M12x1,5 6L | 12 | 21.5 | 6 | 4 | 6 | 12 |
| RK-1408-MKD-L | M14x1,5 8L | 14 | 22 | 8 | 6 | 8 | 12 |
| RK-1610-MKD-L | M16x1,5 10L | 15 | 23 | 10 | 8 | 10 | 14 |
| RK-1812-MKD-L | M18x1,5 12L | 17 | 25.5 | 12 | 10 | 12 | 17 |
| RK-2215-MKD-L | M22x1,5 15L | 21 | 29 | 15 | 12 | 15 | 19 |
| RK-2618-MKD-L | M26x1,5 18L | 23.5 | 32.5 | 18 | 15 | 18 | 24 |
| RK-3022-MKD-L | M30x2 22L | 27.5 | 37 | 22 | 19 | 22 | 27 |
| RK-3628-MKD-L | M36x2 28L | 30.5 | 40 | 28 | 24 | 28 | 36 |
| RK-4535-MKD-L | M45x2 35L | 34.5 | 44 | 35 | 30 | 35 | 41 |
| RK-5242-MKD-L | M52x2 42L | 40 | 54.5 | 42 | 36 | 42 | 50 |
| S TİPİ / S TYPE | |||||||
| RK-2012-MKD-S | M20x1,5 12S | 21.5 | 26.5 | 12 | 8 | 12 | 17 |
| RK-2416-MKD-S | M24x1,5 16S | 24.5 | 31 | 16 | 12 | 16 | 24 |
| RK-3020-MKD-S | M30x2 20S | 26.5 | 38 | 20 | 16 | 20 | 27 |
| RK-3625-MKD-S | M36x2 25S | 30 | 41 | 25 | 20 | 25 | 36 |
| RK-4230-MKD-S | M42x2 30S | 35.5 | 44.5 | 30 | 25 | 30 | 41 |
| RK-5238-MKD-S | M52x2 38S | 41 | 55 | 38 | 32 | 38 | 50 |
