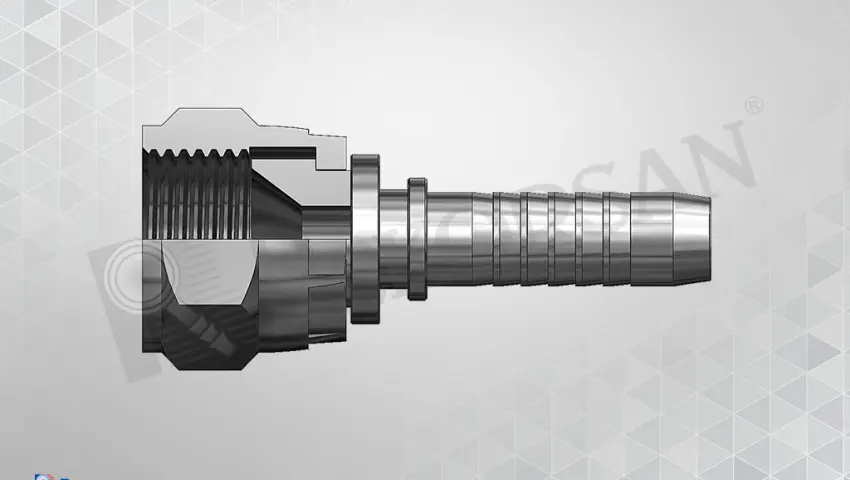

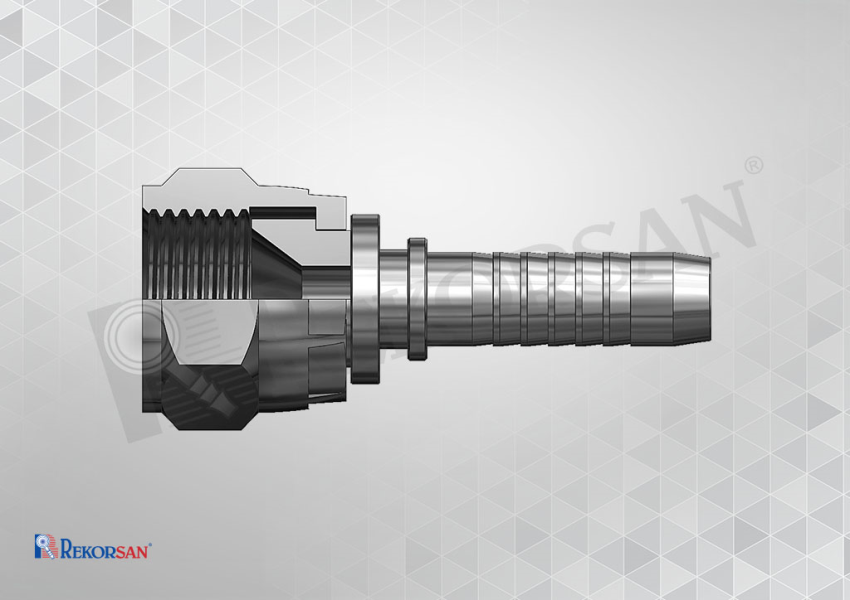

UNF SOMUNLU DÜZ HORTUM RAKORU
UNF SOMUNLU DÜZ HORTUM RAKORU

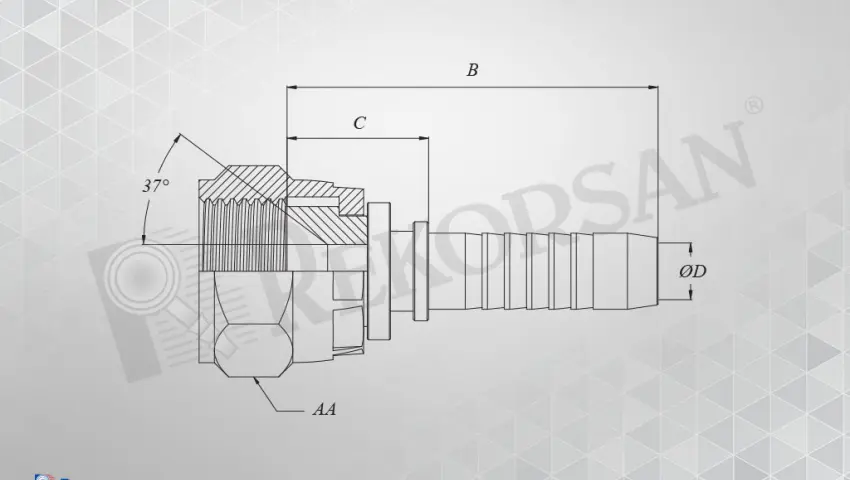

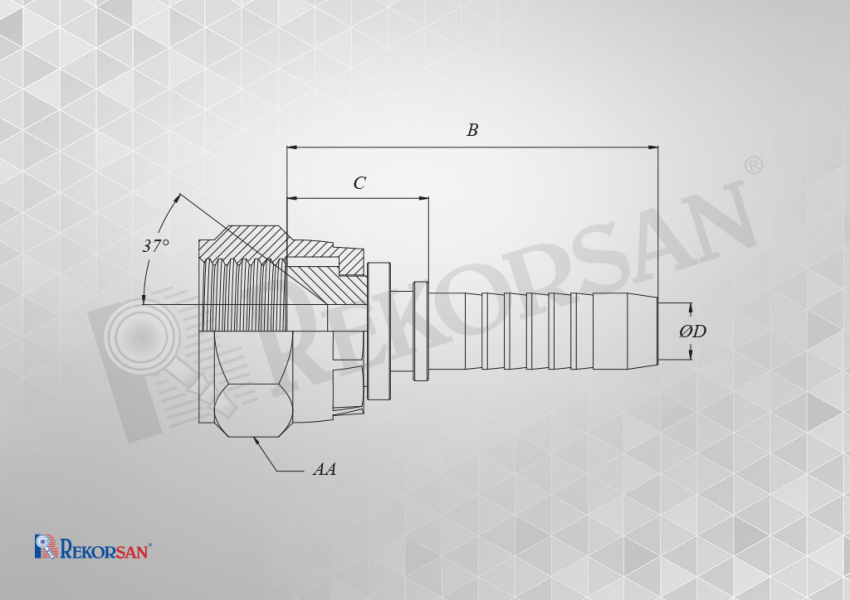

| UNF SOMUNLU DÜZ HORTUM RAKORLARI UNF FEMALE STRAIGHT SWIVEL HOSE FITTINGS | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0511-WSD | 05 | 3/16 | 7/16-20 | 35 | 14 | 3.2 | 16 |
| RK-0611-WSD | 06 | 1/4 | 7/16-20 | 39.5 | 14.5 | 4 | 16 |
| RK-0612-WSD | 06 | 1/4 | 1/2-20 | 40 | 15 | 4 | 17 |
| RK-0614-WSD | 06 | 1/4 | 9/16-18 | 41.5 | 16.5 | 4 | 19 |
| RK-0812-WSD | 08 | 5/16 | 1/2-20 | 42 | 15 | 5.5 | 17 |
| RK-0814-WSD | 08 | 5/16 | 9/16-18 | 43.5 | 16.5 | 5.5 | 19 |
| RK-0816-WSD | 08 | 5/16 | 5/8-18 | 44 | 17 | 5.5 | 21 |
| RK-0819-WSD | 08 | 5/16 | 3/4-16 | 46.5 | 19.5 | 5.5 | 24 |
| RK-1014-WSD | 10 | 3/8 | 9/16-18 | 46.5 | 16.5 | 7 | 19 |
| RK-1016-WSD | 10 | 3/8 | 5/8-18 | 47 | 17 | 7 | 21 |
| RK-1019-WSD | 10 | 3/8 | 3/4-16 | 49.5 | 19.5 | 7 | 24 |
| RK-1022-WSD | 10 | 3/8 | 7/8-14 | 50.5 | 20.5 | 7 | 27 |
| RK-1319-WSD | 12 | 1/2 | 3/4-16 | 53 | 20 | 9 | 24 |
| RK-1322-WSD | 12 | 1/2 | 7/8-14 | 54 | 21 | 9 | 27 |
| RK-1622-WSD | 16 | 5/8 | 7/8-14 | 62 | 22 | 12 | 27 |
| RK-1627-WSD | 16 | 5/8 | 1"1/16-12 | 65.5 | 25.5 | 12 | 32 |
| RK-1927-WSD | 19 | 3/4 | 1"1/16-12 | 70 | 26 | 14 | 32 |
| RK-1933-WSD | 19 | 3/4 | 1"5/16-12 | 73 | 29 | 14 | 41 |
| RK-2533-WSD | 25 | 1" | 1"5/16-12 | 84 | 30 | 19 | 41 |
| RK-3241-WSD | 32 | 1"1/4 | 1"5/8-12 | 94.5 | 35 | 25 | 50 |
| RK-3847-WSD | 38 | 1"1/2 | 1"7/8-12 | 107.5 | 35.5 | 29 | 55 |
| RK-5063-WSD | 50 | 2" | 2"1/2-12 | 98 | 38 | 42 | 75 |
