ORFS SOMUNLU DÜZ HORTUM RAKORU
ORFS SOMUNLU DÜZ HORTUM RAKORU

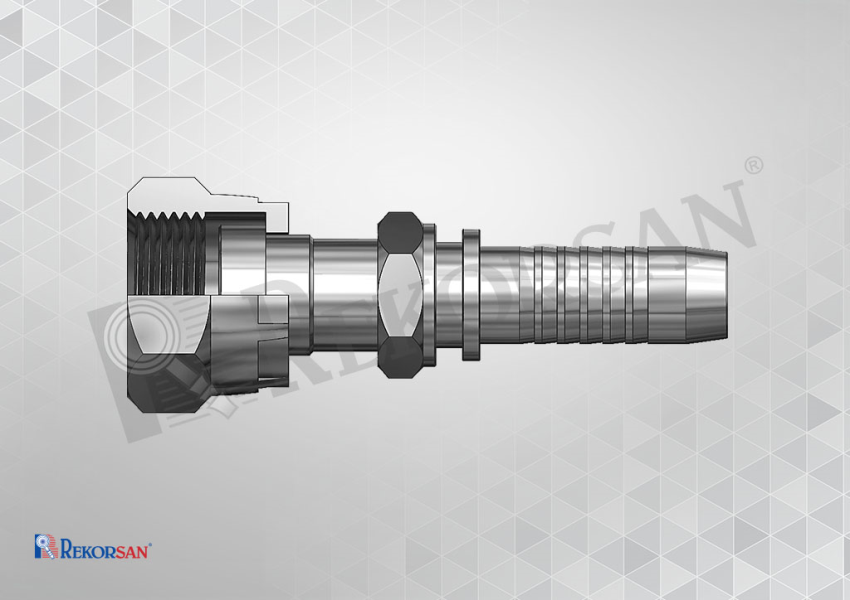

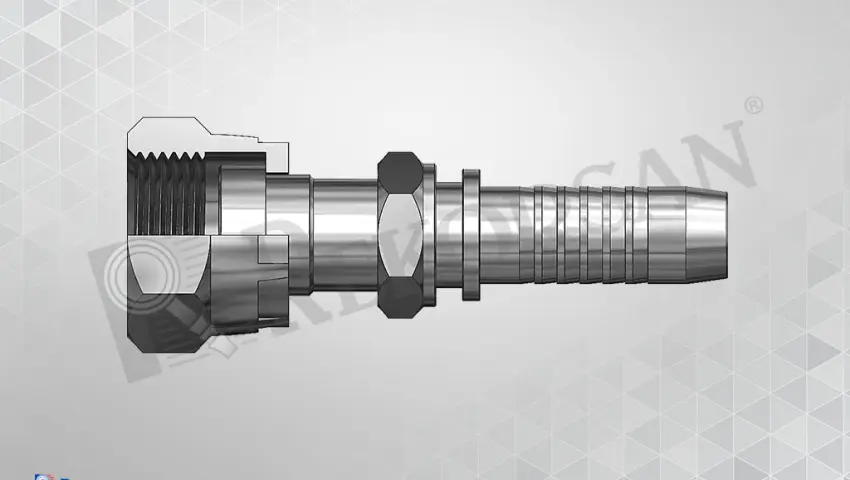

| ORFS SOMUNLU DÜZ HORTUM RAKORU ORFS FEMALE STRAIGHT SWIVEL HOSE FITTING | ||||||||

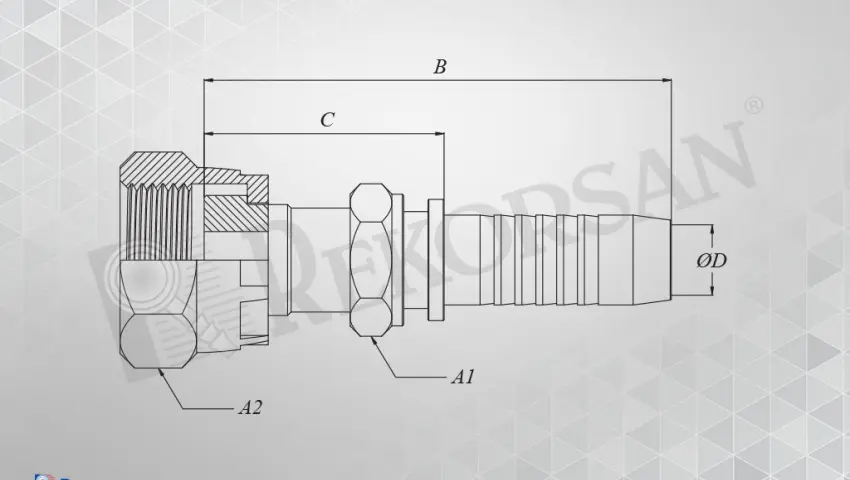

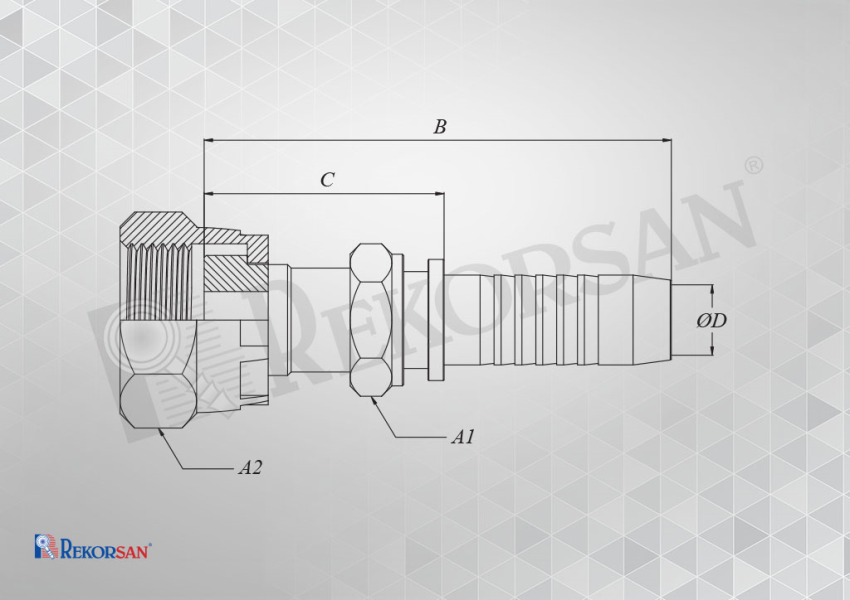

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | ØD | A1 | A2 | |
| mm | inch | |||||||
| RK-0614-OSD | 06 | 1/4 | 9/16-18 | 52 | 27 | 4 | 13 | 19 |
| RK-0617-OSD | 06 | 1/4 | 11/16-16 | 55 | 30 | 4 | 17 | 22 |
| RK-0814-OSD | 08 | 5/16 | 9/16-18 | 54 | 27 | 5.5 | 13 | 19 |
| RK-0817-OSD | 08 | 5/16 | 11/16-16 | 57 | 30 | 5.5 | 17 | 22 |
| RK-1017-OSD | 10 | 3/8 | 11/16-16 | 60 | 30 | 7 | 17 | 22 |
| RK-1021-OSD | 10 | 3/8 | 13/16-16 | 64 | 34 | 7 | 19 | 24 |
| RK-1321-OSD | 12 | 1/2 | 13/16-16 | 67.5 | 34.5 | 9 | 19 | 24 |
| RK-1325-OSD | 12 | 1/2 | 1"-14 | 72 | 39 | 9 | 24 | 30 |
| RK-1625-OSD | 16 | 5/8 | 1"-14 | 80 | 40 | 12 | 24 | 30 |
| RK-1630-OSD | 16 | 5/8 | 1"3/16-12 | 83.5 | 43.5 | 12 | 30 | 36 |
| RK-1930-OSD | 19 | 3/4 | 1"3/16-12 | 88 | 44 | 14 | 30 | 36 |
| RK-1937-OSD | 19 | 3/4 | 1"7/16-12 | 91.5 | 47.5 | 14 | 36 | 41 |
| RK-2537-OSD | 25 | 1" | 1"7/16-12 | 102.5 | 48.5 | 19 | 36 | 41 |
| RK-2543-OSD | 25 | 1" | 1"11/16-12 | 106 | 52 | 19 | 41 | 50 |
| RK-3243-OSD | 32 | 1"1/4 | 1"11/16-12 | 113 | 53.5 | 25 | 41 | 50 |
