ORFS SOMUNLU 90º HORTUM RAKORU
ORFS SOMUNLU 90º HORTUM RAKORU

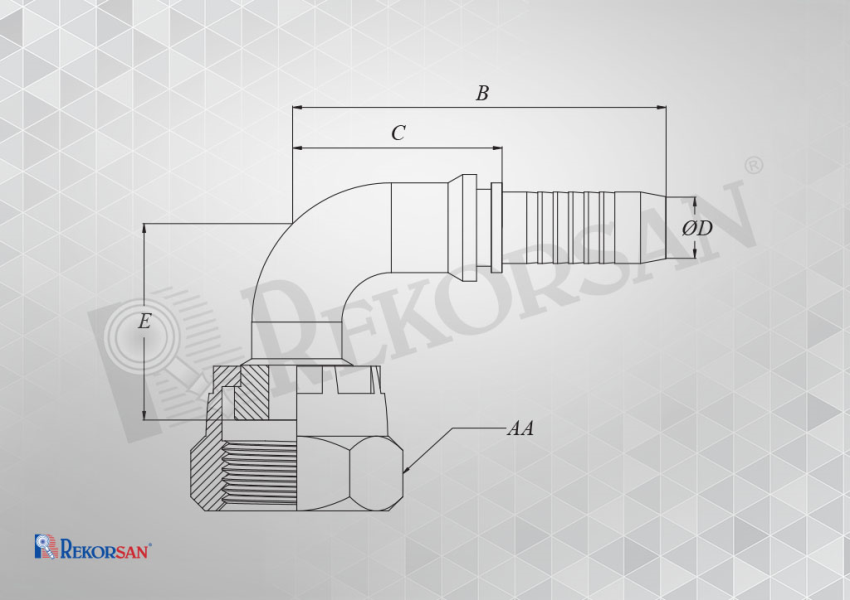

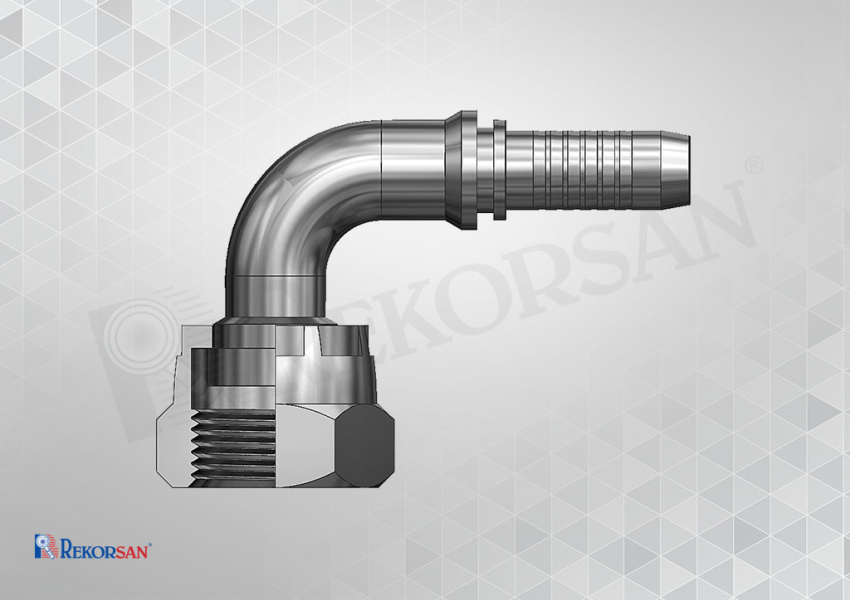

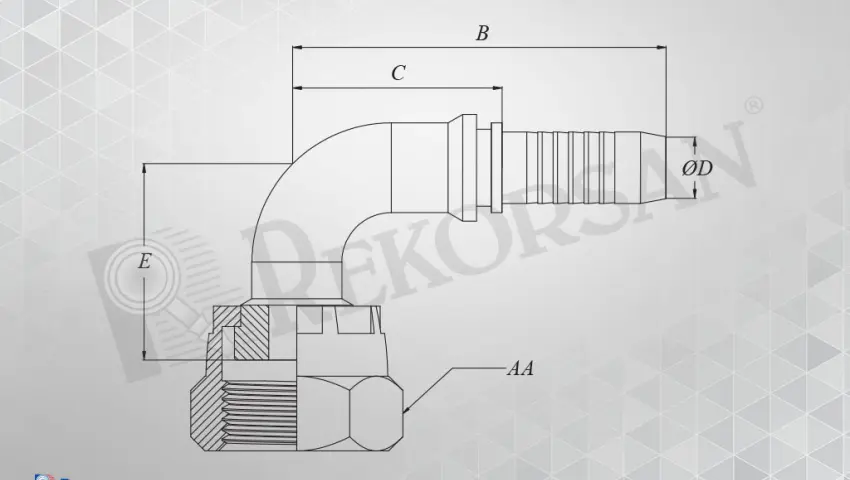

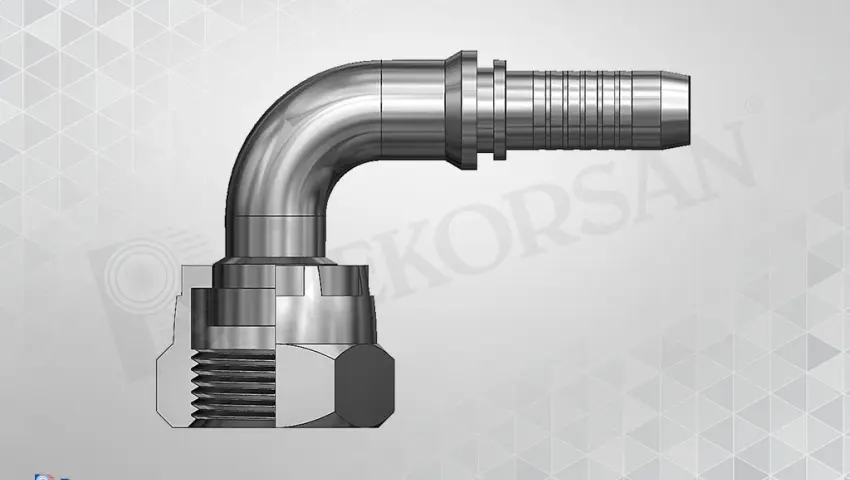

| ORFS SOMUNLU 90° HORTUM RAKORU ORFS FEMALE 90° ELBOW SWIVEL HOSE FITTING | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| RK-0614-OS90 | 06 | 1/4 | 9/16-18 | 50 | 25 | 25 | 4 | 19 |
| RK-0617-OS90 | 06 | 1/4 | 11/16-16 | 50 | 25 | 25 | 4 | 22 |
| RK-0814-OS90 | 08 | 5/16 | 9/16-18 | 55 | 28 | 25 | 5.5 | 19 |
| RK-0817-OS90 | 08 | 5/16 | 11/16-16 | 55 | 28 | 27 | 5.5 | 22 |
| RK-1017-OS90 | 10 | 3/8 | 11/16-16 | 61.5 | 32.5 | 30 | 7 | 22 |
| RK-1021-OS90 | 10 | 3/8 | 13/16-16 | 61.5 | 32.5 | 31 | 7 | 24 |
| RK-1321-OS90 | 12 | 1/2 | 13/16-16 | 69.5 | 37.5 | 35 | 9 | 24 |
| RK-1325-OS90 | 12 | 1/2 | 1"-14 | 69.5 | 37.5 | 38 | 9 | 30 |
| RK-1625-OS90 | 16 | 5/8 | 1"-14 | 84 | 45 | 40 | 12 | 30 |
| RK-1630-OS90 | 16 | 5/8 | 1"3/16-12 | 84 | 45 | 51 | 12 | 36 |
| RK-1930-OS90 | 19 | 3/4 | 1"3/16-12 | 100 | 57 | 54 | 14 | 36 |
| RK-1937-OS90 | 19 | 3/4 | 1"7/16-12 | 100 | 57 | 55 | 14 | 41 |
| RK-2537-OS90 | 25 | 1" | 1"7/16-12 | 122 | 69 | 60 | 19 | 41 |
| RK-3243-OS90 | 32 | 1"1/4 | 1"11/16-12 | 140 | 80 | 71 | 25 | 50 |
