ORFS SOMUNLU 45º HORTUM RAKORU
ORFS SOMUNLU 45º HORTUM RAKORU

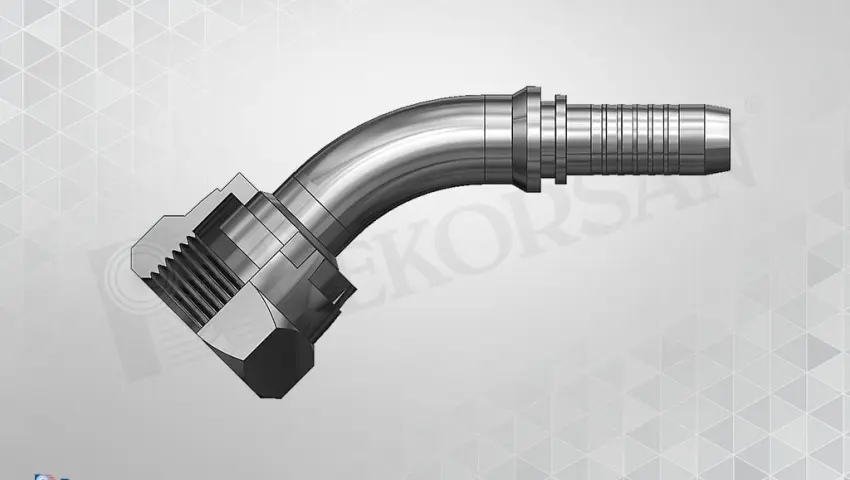

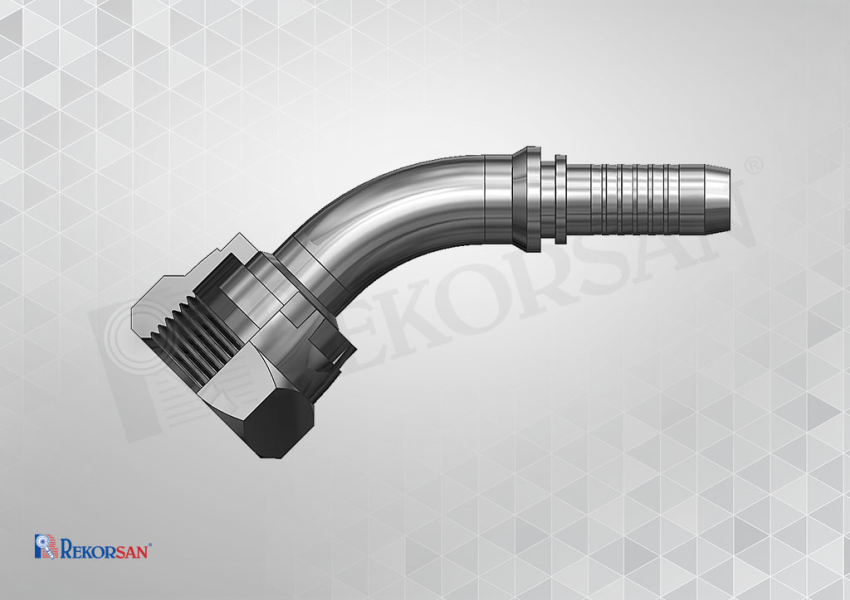

| ORFS SOMUNLU 45° HORTUM RAKORU ORFS FEMALE 45° ELBOW SWIVEL HOSE FITTING | ||||||||

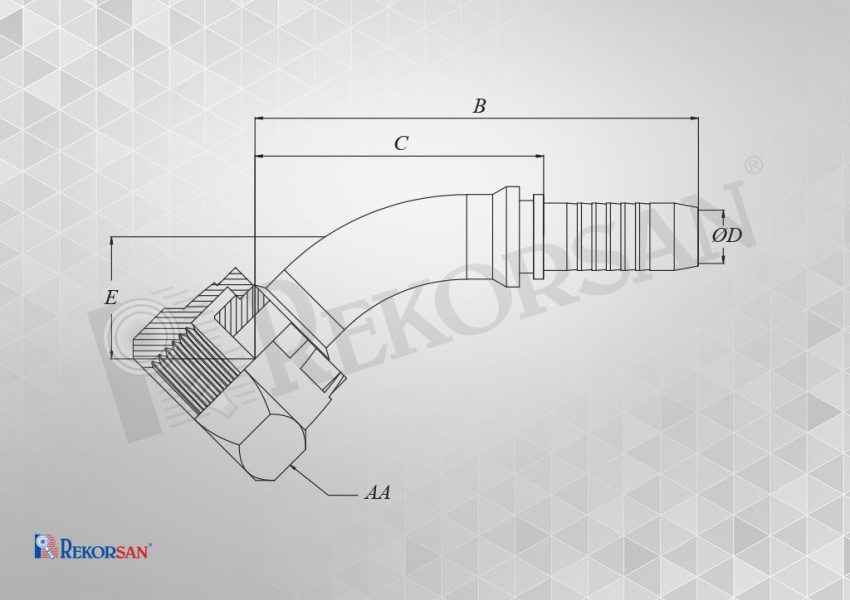

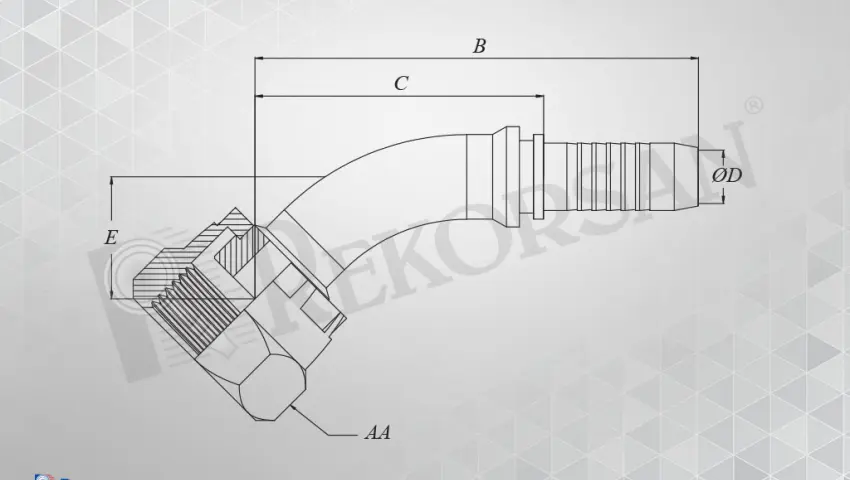

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| RK-0614-OS45 | 06 | 1/4 | 9/16-18 | 60 | 35 | 13 | 4 | 19 |
| RK-0617-OS45 | 06 | 1/4 | 11/16-16 | 71 | 46 | 15 | 4 | 22 |
| RK-0814-OS45 | 08 | 5/16 | 9/16-18 | 58 | 31 | 12 | 5.5 | 19 |
| RK-0817-OS45 | 08 | 5/16 | 11/16-16 | 74 | 47 | 16 | 5.5 | 22 |
| RK-1017-OS45 | 10 | 3/8 | 11/16-16 | 69 | 39 | 15 | 7 | 22 |
| RK-1021-OS45 | 10 | 3/8 | 13/16-16 | 72 | 42 | 16 | 7 | 24 |
| RK-1321-OS45 | 12 | 1/2 | 13/16-16 | 78 | 45 | 16 | 9 | 24 |
| RK-1325-OS45 | 12 | 1/2 | 1"-14 | 80 | 47 | 19 | 9 | 30 |
| RK-1625-OS45 | 16 | 5/8 | 1"-14 | 85 | 45 | 23 | 12 | 30 |
| RK-1630-OS45 | 16 | 5/8 | 1"3/16-12 | 104 | 64 | 29 | 12 | 36 |
| RK-1930-OS45 | 19 | 3/4 | 1"3/16-12 | 110 | 66 | 31 | 14 | 36 |
| RK-1937-OS45 | 19 | 3/4 | 1"7/16-12 | 118 | 74 | 30 | 14 | 41 |
| RK-2537-OS45 | 25 | 1" | 1"7/16-12 | 135 | 80 | 32 | 19 | 41 |
| RK-3243-OS45 | 32 | 1"1/4 | 1"11/16-12 | 160 | 100 | 37 | 25 | 50 |
