METRİK SOMUNLU DÜZ HORTUM RAKORU
METRİK SOMUNLU DÜZ HORTUM RAKORU

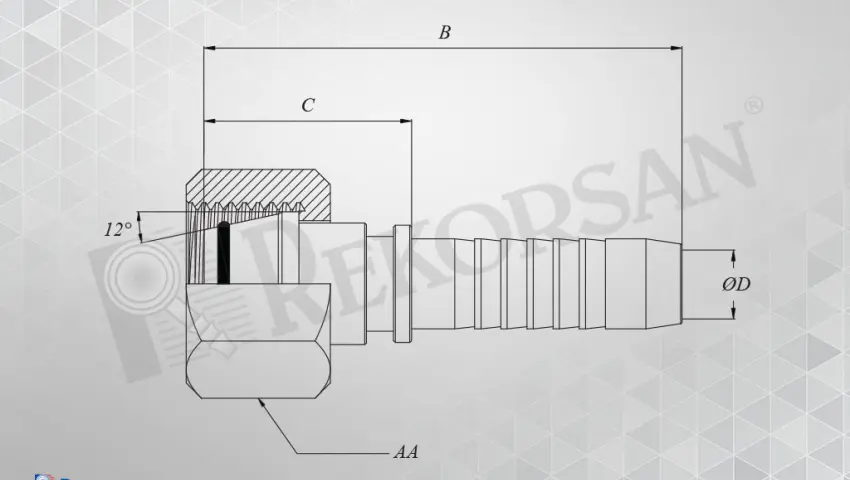

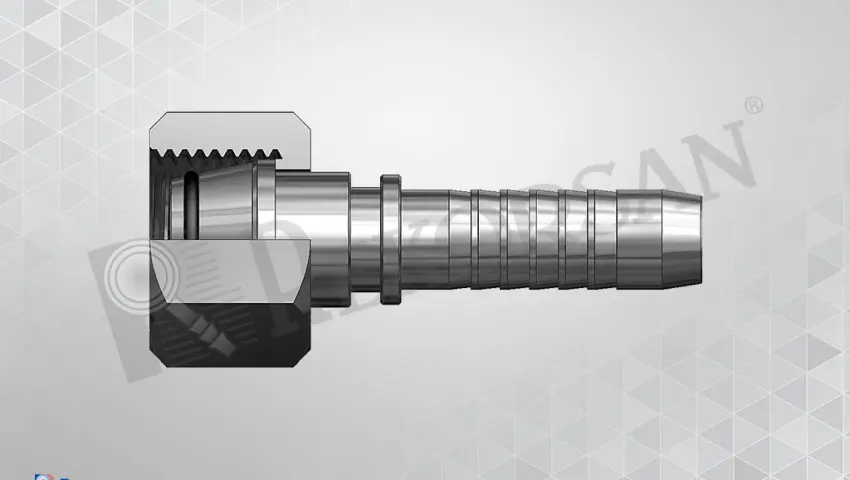

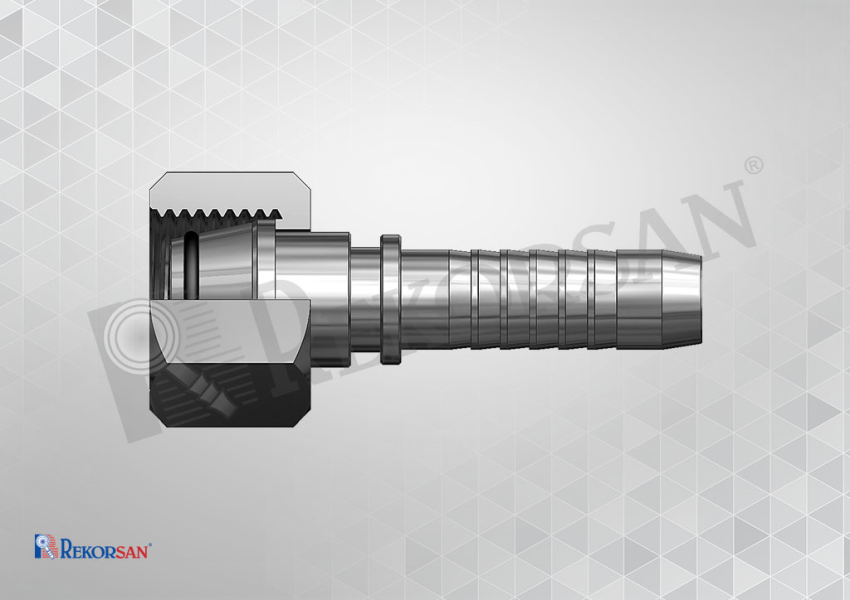

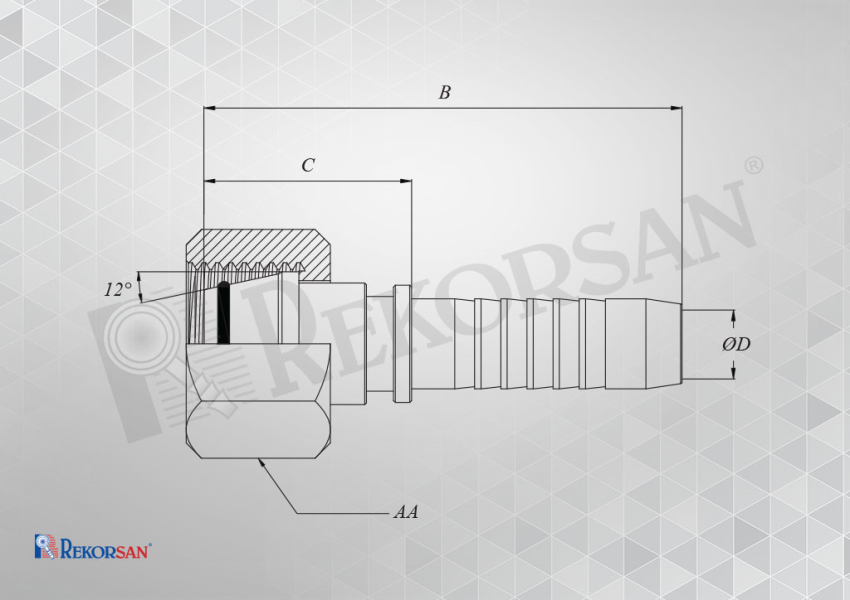

| METRİK SOMUNLU DÜZ HORTUM RAKORLARI METRIC FEMALE STRAIGHT SWIVEL HOSE FITTINGS | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| L TİPİ / L TYPE | |||||||
| RK-0506-MSOD-L | 05 | 3/16 | M12x1,5 6L | 42.5 | 22 | 3.2 | 14 |
| RK-0508-MSOD-L | 05 | 3/16 | M14x1,5 8L | 41.5 | 21 | 3.2 | 17 |
| RK-0606-MSOD-L | 06 | 1/4 | M12x1,5 6L | 46 | 21 | 4 | 17 |
| RK-0608-MSOD-L | 06 | 1/4 | M14x1,5 8L | 46 | 21.5 | 4 | 17 |
| RK-0610-MSOD-L | 06 | 1/4 | M16x1,5 10L | 47.5 | 23 | 4 | 19 |
| RK-0612-MSOD-L | 06 | 1/4 | M18x1,5 12L | 48 | 23.5 | 4 | 22 |
| RK-0808-MSOD-L | 08 | 5/16 | M14x1,5 8L | 48.5 | 22 | 5.5 | 19 |
| RK-0810-MSOD-L | 08 | 5/16 | M16x1,5 10L | 49.5 | 23 | 5.5 | 19 |
| RK-0812-MSOD-L | 08 | 5/16 | M18x1,5 12L | 50 | 23.5 | 5.5 | 22 |
| RK-1010-MSOD-L | 10 | 3/8 | M16x1,5 10L | 52.5 | 23 | 7 | 21 |
| RK-1012-MSOD-L | 10 | 3/8 | M18x1,5 12L | 53 | 23.5 | 7 | 22 |
| RK-1015-MSOD-L | 10 | 3/8 | M22x1,5 15L | 56 | 26.5 | 7 | 27 |
| RK-1312-MSOD-L | 12 | 1/2 | M18x1,5 12L | 59 | 27 | 9 | 22 |
| RK-1315-MSOD-L | 12 | 1/2 | M22x1,5 15L | 59.5 | 27.5 | 9 | 27 |
| RK-1318-MSOD-L | 12 | 1/2 | M26x1,5 18L | 57 | 25 | 9 | 32 |
| RK-1618-MSOD-L | 16 | 5/8 | M26x1,5 18L | 65 | 26 | 12 | 32 |
| RK-1922-MSOD-L | 19 | 3/4 | M30x2 22L | 72.5 | 29.5 | 14 | 36 |
| RK-1928-MSOD-L | 19 | 3/4 | M36x2 28L | 73 | 30 | 14 | 41 |
| RK-2528-MSOD-L | 25 | 1" | M36x2 28L | 85 | 30.5 | 19 | 41 |
| RK-2535-MSOD-L | 25 | 1" | M45x2 35L | 87.5 | 34 | 19 | 50 |
| RK-3235-MSOD-L | 32 | 1"1/4 | M45x2 35L | 94.5 | 35 | 25 | 50 |
| RK-3242-MSOD-L | 32 | 1"1/4 | M52x2 42L | 96 | 36.5 | 25 | 60 |
| RK-3842-MSOD-L | 38 | 1"1/2 | M52x2 42L | 109 | 37 | 29 | 60 |
| S TİPİ / S TYPE | |||||||
| RK-0506-MSOD-S | 05 | 3/16 | M14x1,5 6S | 41.5 | 21 | 3.2 | 17 |
| RK-0606-MSOD-S | 06 | 1/4 | M14x1,5 6S | 46 | 22 | 4 | 17 |
| RK-0608-MSOD-S | 06 | 1/4 | M16x1,5 8S | 47 | 23 | 4 | 19 |
| RK-0610-MSOD-S | 06 | 1/4 | M18x1,5 10S | 47.5 | 23 | 4 | 22 |
| RK-0808-MSOD-S | 08 | 5/16 | M16x1,5 8S | 49 | 22.5 | 5.5 | 19 |
| RK-0810-MSOD-S | 08 | 5/16 | M18x1,5 10S | 50 | 23.5 | 5.5 | 22 |
| RK-0812-MSOD-S | 08 | 5/16 | M20x1,5 12S | 50 | 23.5 | 5.5 | 24 |
| RK-1010-MSOD-S | 10 | 3/8 | M18x1,5 10S | 52.5 | 23 | 7 | 22 |
| RK-1012-MSOD-S | 10 | 3/8 | M20x1,5 12S | 53.5 | 24 | 7 | 24 |
| RK-1016-MSOD-S | 10 | 3/8 | M24x1,5 16S | 56.5 | 27 | 7 | 30 |
| RK-1312-MSOD-S | 12 | 1/2 | M20x1,5 12S | 57.5 | 25.5 | 9 | 24 |
| RK-1316-MSOD-S | 12 | 1/2 | M24x1,5 16S | 60 | 28 | 9 | 30 |
| RK-1616-MSOD-S | 16 | 5/8 | M24x1,5 16S | 70 | 30 | 11 | 30 |
| RK-1620-MSOD-S | 16 | 5/8 | M30x2 20S | 71.5 | 32.5 | 12 | 36 |
| RK-1920-MSOD-S | 19 | 3/4 | M30x2 20S | 76 | 33 | 14 | 36 |
| RK-1925-MSOD-S | 19 | 3/4 | M36x2 25S | 75 | 32 | 14 | 46 |
| RK-2525-MSOD-S | 25 | 1" | M36x2 25S | 86 | 32.5 | 19 | 46 |
| RK-2530-MSOD-S | 25 | 1" | M42x2 30S | 93.5 | 35 | 19 | 50 |
| RK-3230-MSOD-S | 32 | 1"1/4 | M42x2 30S | 101 | 41.5 | 24 | 50 |
| RK-3238-MSOD-S | 32 | 1"1/4 | M52x2 38S | 97.5 | 38 | 25 | 60 |
| RK-3838-MSOD-S | 38 | 1"1/2 | M52x2 38S | 110.5 | 38.5 | 29 | 60 |
