METRİK SOMUNLU 90º HORTUM RAKORU
METRİK SOMUNLU 90º HORTUM RAKORU

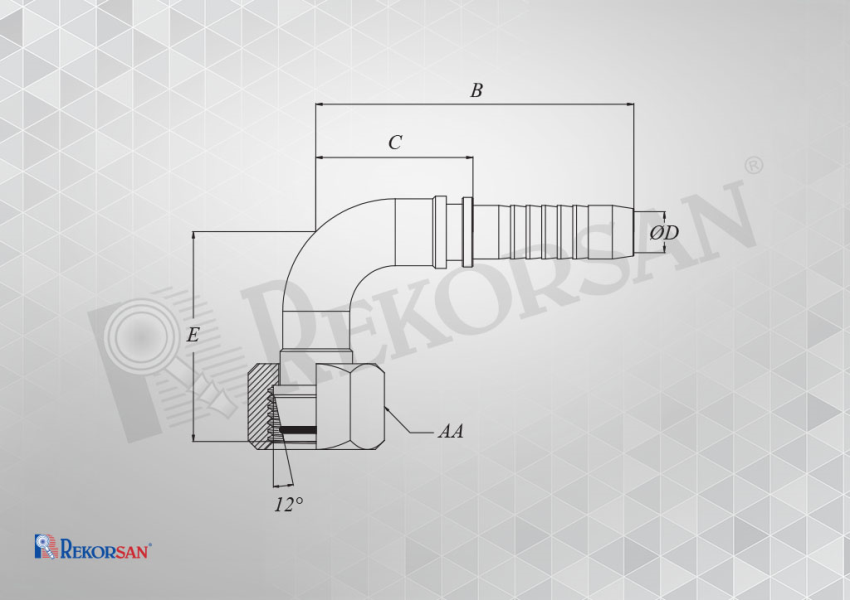

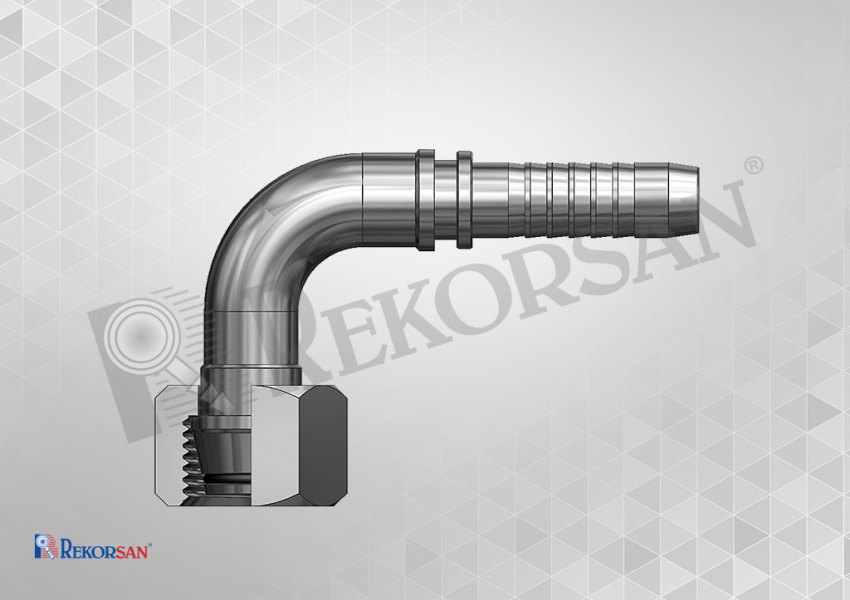

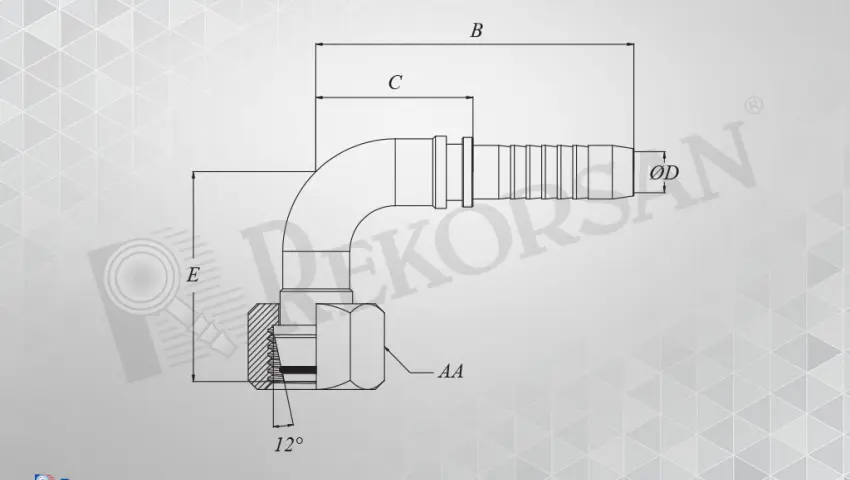

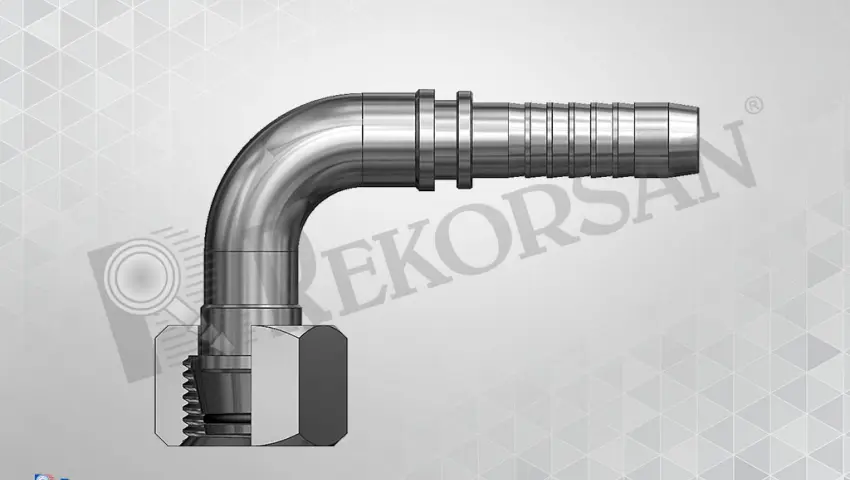

| METRİK SOMUNLU 90° HORTUM RAKORLARI METRIC FEMALE 90° ELBOW SWIVEL HOSE FITTINGS | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| L TİPİ / L TYPE | ||||||||
| RK-0506-MSO90-L | 05 | 3/16 | M12x1,5 6L | 45 | 25 | 31 | 3.2 | 14 |
| RK-0508-MSO90-L | 05 | 3/16 | M14x1,5 8L | 45 | 25 | 31 | 3.2 | 17 |
| RK-0606-MSO90-L | 06 | 1/4 | M12x1,5 6L | 50 | 25 | 33 | 4 | 17 |
| RK-0608-MSO90-L | 06 | 1/4 | M14x1,5 8L | 50 | 25 | 32 | 4 | 17 |
| RK-0610-MSO90-L | 06 | 1/4 | M16x1,5 10L | 50 | 25 | 32 | 4 | 19 |
| RK-0612-MSO90-L | 06 | 1/4 | M18x1,5 12L | 50 | 25 | 33 | 4 | 22 |
| RK-0808-MSO90-L | 08 | 5/16 | M14x1,5 8L | 55 | 28 | 35.5 | 5.5 | 19 |
| RK-0810-MSO90-L | 08 | 5/16 | M16x1,5 10L | 55 | 28 | 33 | 5.5 | 19 |
| RK-0812-MSO90-L | 08 | 5/16 | M18x1,5 12L | 55 | 28 | 33.5 | 5.5 | 22 |
| RK-1010-MSO90-L | 10 | 3/8 | M16x1,5 10L | 61.5 | 32.5 | 38 | 7 | 21 |
| RK-1012-MSO90-L | 10 | 3/8 | M18x1,5 12L | 61.5 | 32.5 | 35 | 7 | 22 |
| RK-1015-MSO90-L | 10 | 3/8 | M22x1,5 15L | 61.5 | 32.5 | 36 | 7 | 27 |
| RK-1312-MSO90-L | 12 | 1/2 | M18x1,5 12L | 69.5 | 37.5 | 43 | 9 | 22 |
| RK-1315-MSO90-L | 12 | 1/2 | M22x1,5 15L | 69.5 | 37.5 | 42 | 9 | 27 |
| RK-1618-MSO90-L | 16 | 5/8 | M26x1,5 18L | 84 | 45 | 47 | 12 | 32 |
| RK-1922-MSO90-L | 19 | 3/4 | M30x2 22L | 100 | 57 | 53 | 14 | 36 |
| RK-1928-MSO90-L | 19 | 3/4 | M36x2 28L | 100 | 57 | 56 | 14 | 41 |
| RK-2528-MSO90-L | 25 | 1" | M36x2 28L | 122 | 69 | 70 | 19 | 41 |
| RK-2535-MSO90-L | 25 | 1" | M45x2 35L | 122 | 69 | 78 | 19 | 50 |
| RK-3235-MSO90-L | 32 | 1"1/4 | M45x2 35L | 140 | 80 | 80 | 25 | 50 |
| RK-3242-MSO90-L | 32 | 1"1/4 | M52x2 42L | 140 | 80 | 82 | 25 | 60 |
| RK-3842-MSO90-L | 38 | 1"1/2 | M52x2 42L | 175 | 105 | 90 | 29 | 60 |
| S TİPİ / S TYPE | ||||||||
| RK-0506-MSO90-S | 05 | 3/16 | M14x1,5 6S | 45 | 25 | 31 | 3.2 | 17 |
| RK-0606-MSO90-S | 06 | 1/4 | M14x1,5 6S | 50 | 25 | 32 | 4 | 17 |
| RK-0608-MSO90-S | 06 | 1/4 | M16x1,5 8S | 50 | 25 | 32 | 4 | 19 |
| RK-0610-MSO90-S | 06 | 1/4 | M18x1,5 10S | 50 | 25 | 33 | 4 | 22 |
| RK-0808-MSO90-S | 08 | 5/16 | M16x1,5 8S | 55 | 28 | 33 | 5.5 | 19 |
| RK-0810-MSO90-S | 08 | 5/16 | M18x1,5 10S | 55 | 28 | 34 | 5.5 | 22 |
| RK-0812-MSO90-S | 08 | 5/16 | M20x1,5 12S | 55 | 28 | 35 | 5.5 | 24 |
| RK-1010-MSO90-S | 10 | 3/8 | M18x1,5 10S | 61.5 | 32.5 | 36 | 7 | 22 |
| RK-1012-MSO90-S | 10 | 3/8 | M20x1,5 12S | 61.5 | 32.5 | 37 | 7 | 24 |
| RK-1016-MSO90-S | 10 | 3/8 | M24x1,5 16S | 61.5 | 32.5 | 38 | 7 | 30 |
| RK-1312-MSO90-S | 12 | 1/2 | M20x1,5 12S | 69.5 | 37.5 | 43.5 | 9 | 24 |
| RK-1316-MSO90-S | 12 | 1/2 | M24x1,5 16S | 69.5 | 37.5 | 41 | 9 | 30 |
| RK-1616-MSO90-S | 16 | 5/8 | M24x1,5 16S | 84 | 45 | 52 | 11 | 30 |
| RK-1620-MSO90-S | 16 | 5/8 | M30x2 20S | 84 | 45 | 50 | 12 | 36 |
| RK-1920-MSO90-S | 19 | 3/4 | M30x2 20S | 100 | 57 | 57 | 14 | 36 |
| RK-1925-MSO90-S | 19 | 3/4 | M36x2 25S | 100 | 57 | 57 | 14 | 46 |
| RK-2525-MSO90-S | 25 | 1" | M36x2 25S | 122 | 69 | 64 | 19 | 46 |
| RK-2530-MSO90-S | 25 | 1" | M42x2 30S | 130 | 71 | 64 | 19 | 50 |
| RK-3230-MSO90-S | 32 | 1"1/4 | M42x2 30S | 143 | 80 | 94 | 24 | 50 |
| RK-3238-MSO90-S | 32 | 1"1/4 | M52x2 38S | 140 | 80 | 85 | 25 | 60 |
| RK-3838-MSO90-S | 38 | 1"1/2 | M52x2 38S | 175 | 105 | 90 | 29 | 60 |
