HORTUM EKİ
HORTUM EKİ

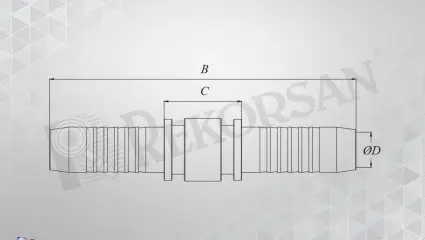

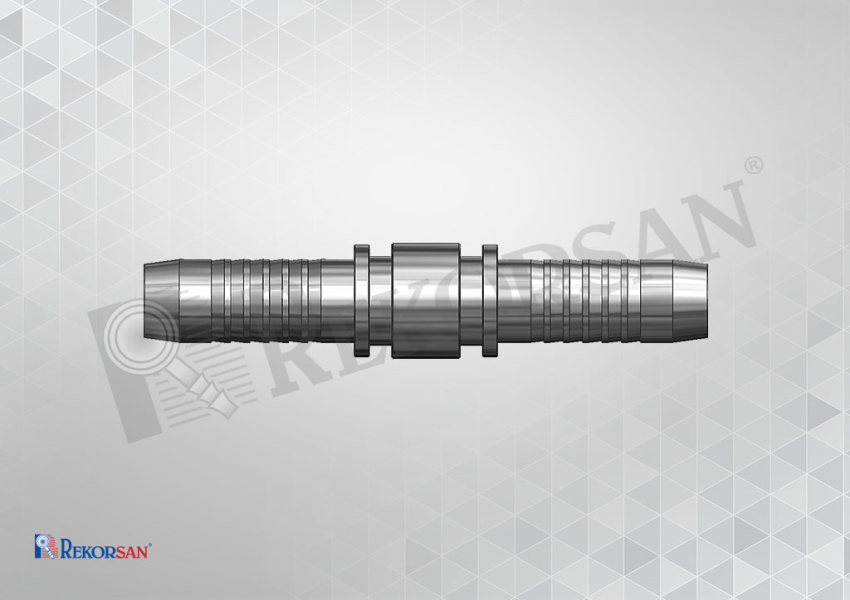

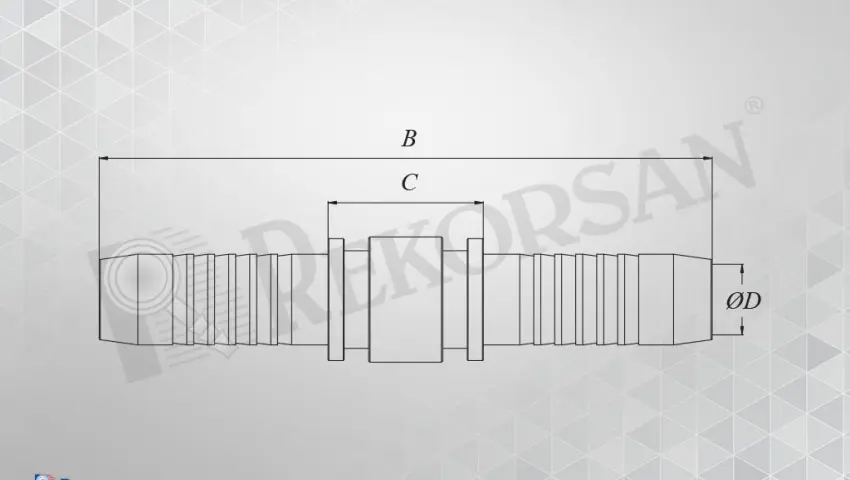

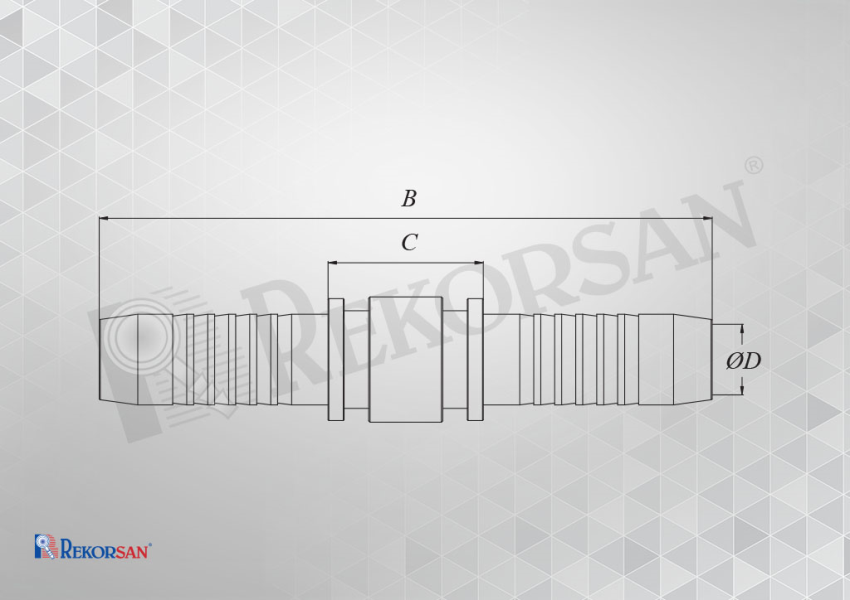

| HORTUM EKİ DOUBLE CONNECTOR HOSE FITTING | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | HORTUM ÖLÇÜSÜ HOSE SIZE | B | C | ØD | ||
| mm | inch | mm | inch | ||||
| RK-0505-HE | 05 | 3/16 | 05 | 3/16 | 55 | 13 | 3.2 |
| RK-0606-HE | 06 | 1/4 | 06 | 1/4 | 66 | 16 | 4 |
| RK-0808-HE | 08 | 5/16 | 08 | 5/16 | 70 | 16 | 5.5 |
| RK-1010-HE | 10 | 3/8 | 10 | 3/8 | 77 | 17 | 7 |
| RK-1313-HE | 12 | 1/2 | 13 | 1/2 | 87.5 | 22 | 9 |
| RK-1616-HE | 16 | 5/8 | 16 | 5/8 | 108 | 28 | 12 |
| RK-1919-HE | 19 | 3/4 | 19 | 3/4 | 118 | 30 | 14 |
| RK-2525-HE | 25 | 1" | 25 | 1" | 144 | 36 | 19 |
| RK-3232-HE | 32 | 1"1/4 | 32 | 1"1/4 | 160 | 41.5 | 25 |
| RK-3838-HE | 38 | 1"1/2 | 38 | 1"1/2 | 189 | 45 | 29 |
| RK-5050-HE | 50 | 2" | 50 | 2" | 162 | 42 | 41 |
