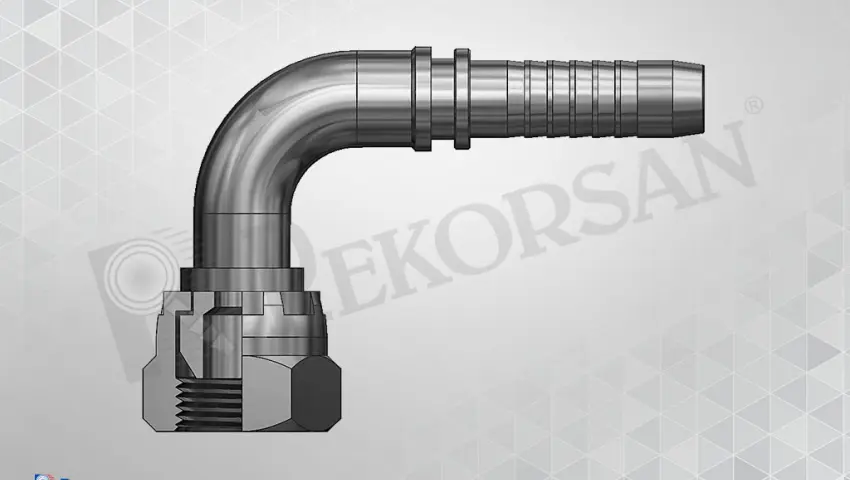

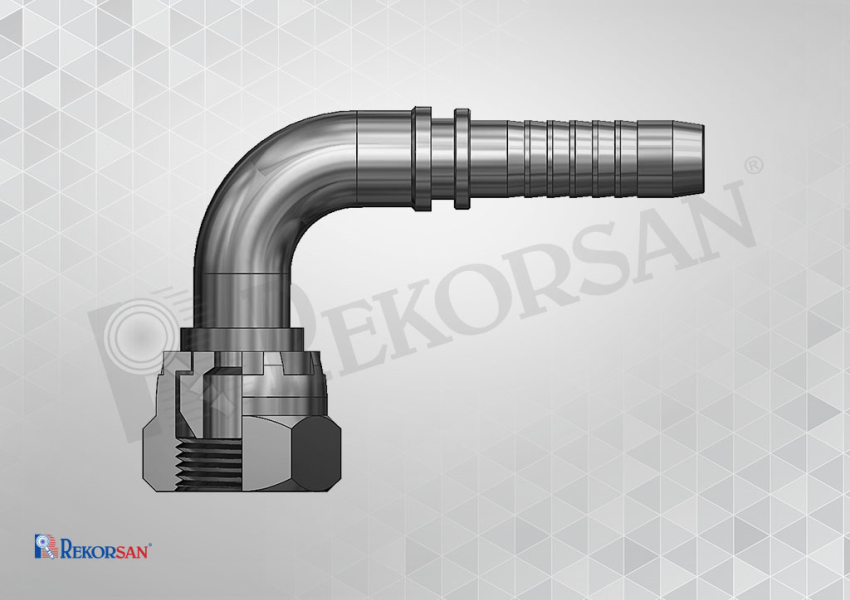

BSP SOMUNLU 90º HORTUM RAKORU
BSP SOMUNLU 90º HORTUM RAKORU

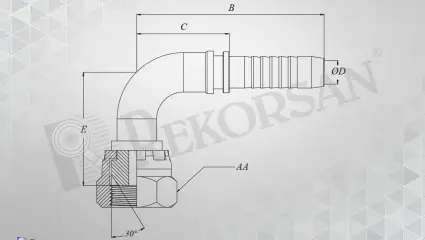

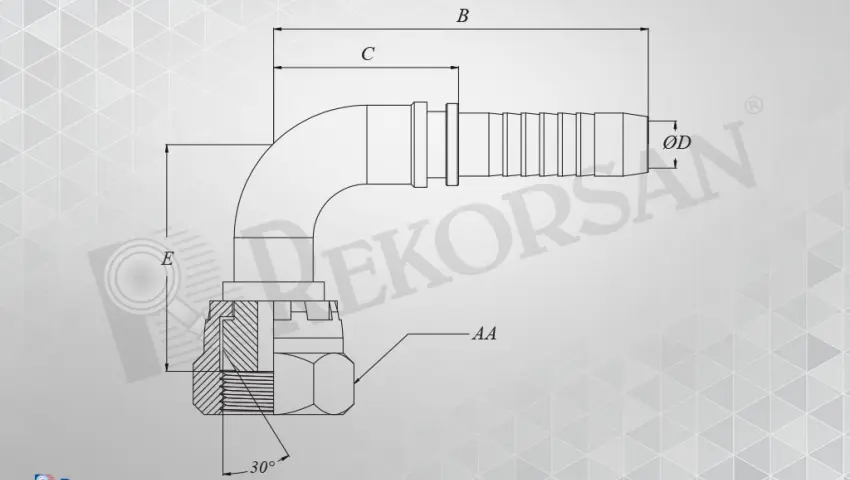

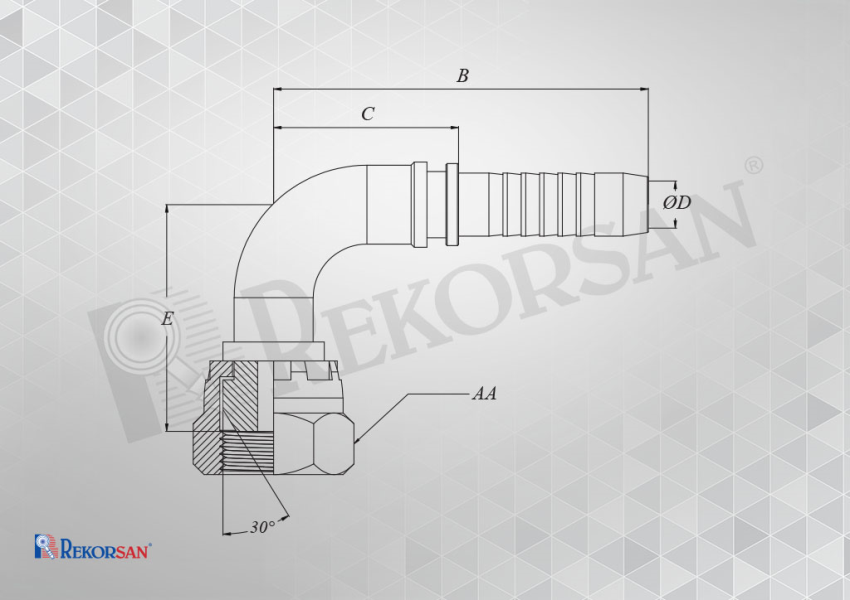

| BSP SOMUNLU 90° HORTUM RAKORLARI BSP FEMALE 90° ELBOW SWIVEL HOSE FITTINGS | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| RK-0510-RS90 | 05 | 3/16 | R1/8-28 | 45 | 25 | 26 | 3.2 | 14 |
| RK-0513-RS90 | 05 | 3/16 | R1/4-19 | 45 | 25 | 27 | 3.2 | 17 |
| RK-0610-RS90 | 06 | 1/4 | R1/8-28 | 50 | 25 | 27 | 4 | 14 |
| RK-0613-RS90 | 06 | 1/4 | R1/4-19 | 50 | 25 | 29 | 4 | 17 |
| RK-0617-RS90 | 06 | 1/4 | R3/8-19 | 50 | 25 | 31 | 4 | 22 |
| RK-0621-RS90 | 06 | 1/4 | R1/2-14 | 50 | 25 | 34 | 4 | 27 |
| RK-0813-RS90 | 08 | 5/16 | R1/4-19 | 55 | 28 | 30 | 5.5 | 17 |
| RK-0817-RS90 | 08 | 5/16 | R3/8-19 | 55 | 28 | 33 | 5.5 | 22 |
| RK-0821-RS90 | 08 | 5/16 | R1/2-14 | 55 | 28 | 35 | 5.5 | 27 |
| RK-1017-RS90 | 10 | 3/8 | R3/8-19 | 61.5 | 32.5 | 35 | 7 | 22 |
| RK-1021-RS90 | 10 | 3/8 | R1/2-14 | 61.5 | 32.5 | 37 | 7 | 27 |
| RK-1317-RS90 | 12 | 1/2 | R3/8-19 | 69.5 | 37.5 | 40 | 9 | 22 |
| RK-1321-RS90 | 12 | 1/2 | R1/2-14 | 69.5 | 37.5 | 40 | 9 | 27 |
| RK-1623-RS90 | 16 | 5/8 | R5/8-14 | 84 | 45 | 49 | 12 | 30 |
| RK-1626-RS90 | 16 | 5/8 | R3/4-14 | 84 | 45 | 50 | 12 | 32 |
| RK-1926-RS90 | 19 | 3/4 | R3/4-14 | 100 | 57 | 57.5 | 14 | 32 |
| RK-2533-RS90 | 25 | 1" | R1"-11 | 122 | 69 | 66 | 19 | 41 |
| RK-3242-RS90 | 32 | 1"1/4 | R1"1/4-11 | 140 | 80 | 87 | 25 | 50 |
| RK-3848-RS90 | 38 | 1"1/2 | R1"1/2-11 | 175 | 105 | 100 | 29 | 55 |
| RK-5060-RS90 | 50 | 2" | R2"-11 | 155 | 95 | 100 | 41 | 70 |
| RK-6475-RS90 | 64 | 2"1/2 | R2"1/2 | 180 | 110 | 120 | 54 | 90 |
| RK-7688-RS90 | 76 | 3" | R3" | 210 | 140 | 135 | 68 | 96 |
